22025 - Toro Walk-Behind Mower (SN: 009000001 - 009999999) (1989) Engine Assembly Parts Diagram

Walk-Behind Mower

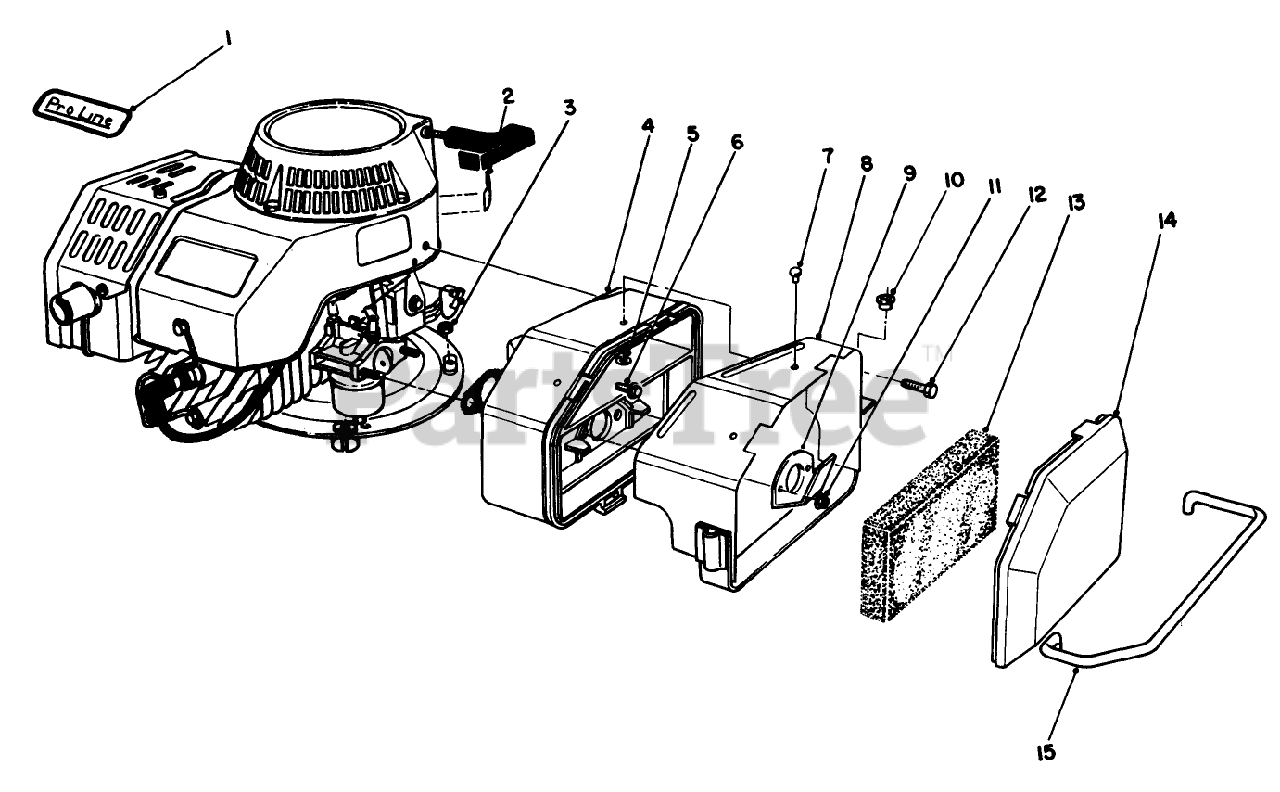

Engine Assembly Parts Diagram

  • Title

1

Toro 71-1260

DECAL - PROLINE

$8.49

$

Usually ships in 3-6 days

0

2

Toro 62-7600

DECAL - FUEL

$

$

Not available

3

Toro 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 12

0

4

Toro 52-2200

AIR CLEANER ASM

$587.99

$

Usually ships in 3-6 days

0

5

Toro 3269-6

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

6

Toro 51-3220

DISCONTINUED

$

$

Not available

7

Toro 3269-5

RIVET-POP

$1.49

$

Usually ships in 3-6 days

0

8

Toro 52-2250

DISCONTINUED

$

$

Not available

9

Toro 81-0140

SPIT BACK DEFLECTOR

$

$

Not available

10

Toro 237-127

DISCONTINUED

$

$

Not available

11

Toro 49-7810

See Supercession: 33023-00
(Superseded to 33023-00)

$0.99

$

Usually ships in 3-6 days

0

12

Toro 81-1280

SCREW-HHF

$1.99

$

In Stock, only 2 left!

0

13

Toro 81-0100

FILTER

$9.99

$

In Stock, only 4 left!

0

14

Toro 81-0120

DISCONTINUED

$

$

Not available

15

Toro 52-2240

AIR CLEANER GUARD*

$

$

Not available

Toro 61-8061

See Supercession: 12-8099
(Superseded to 12-8099)

$

$

Not available
