22035 - Toro Walk-Behind Mower (SN: 005000001 - 005999999) (1985) GEAR CASE ASSEMBLY (MODEL 22035 CONTINUED) Parts Diagram

Walk-Behind Mower

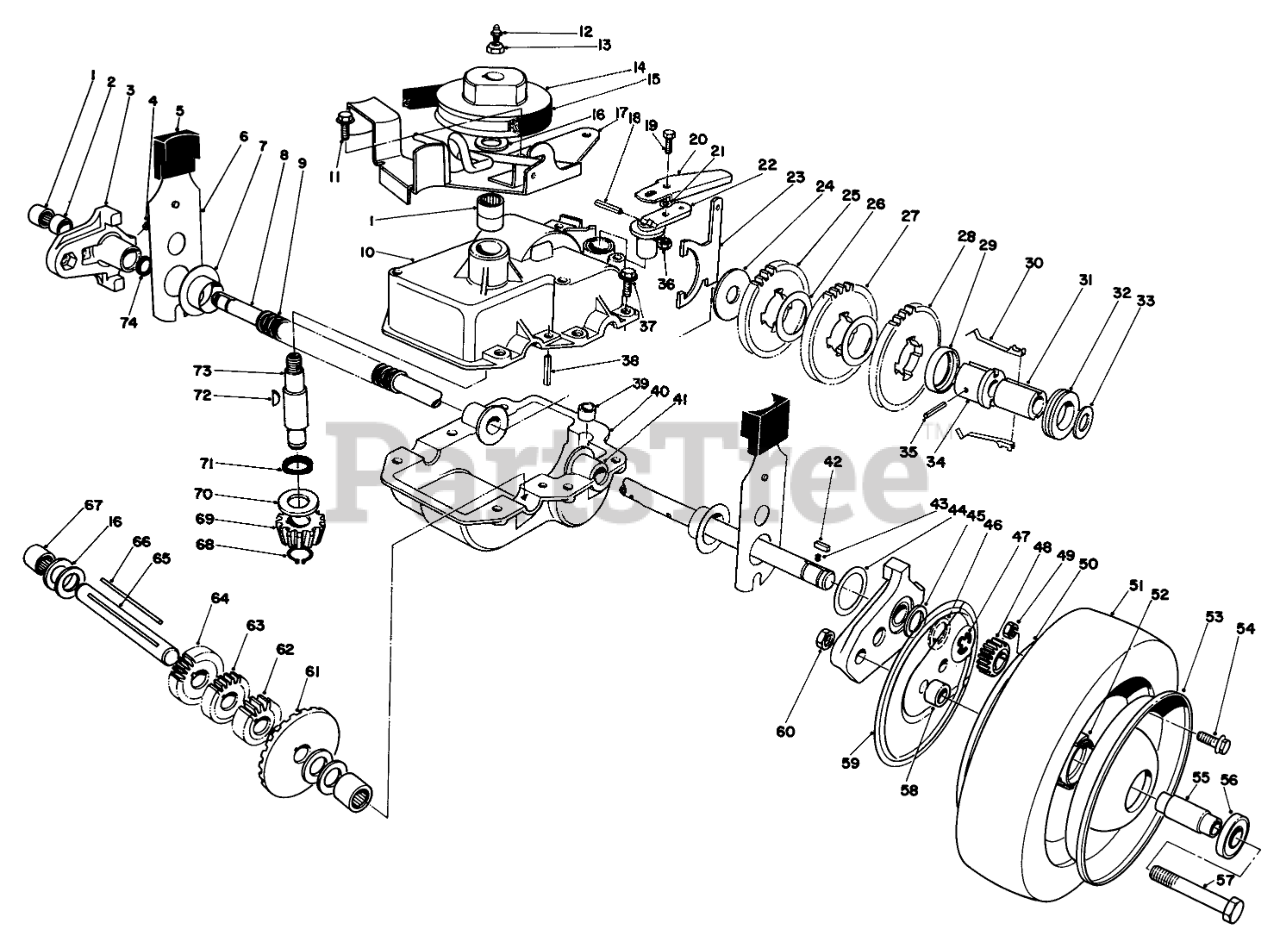

GEAR CASE ASSEMBLY (MODEL 22035 CONTINUED) Parts Diagram

  • Title
1

Toro Part# 47-7270

BEARING-NEEDLE
Usually ships in 1 day

$

$24.59

0

2
Usually ships in 1 day

$

$3.34

0

3

Toro Part# 48-2540

Pivot Arm Assembly (Incl. Ref. #1-2, 4 & 69)
(Superseded to 53-7940)
Usually ships same day

Not available

$

$

4

Toro Part# 302-56

FITTING-GREASE
Usually ships in 1 day

$

$3.27

0

5
Usually ships in 1 day

$

$4.46

0

6

Toro Part# 49-8810

Spring Arm
(Superseded to 66-7561)
Usually ships in 1 day

$

$12.29

0

7
Usually ships in 1 day

$

$7.82

0

8

Toro Part# 44-0850

Output Shaft
(Superseded to 12-6659)
Usually ships in 5 to 8 days

$

$192.94

0

9

Toro Part# 24-7922

CONDUIT-CONVOLUTED, SPLIT
Usually ships in 5 to 8 days

$

$8.17

0

10

Part#

Case Upper

Note: Order Complete Gear Case Assembly 48-2500

Usually ships same day

Not available

$

$

Usually ships in 1 day

$

$2.90

0

12

Toro Part# 302-5

FITTING-GREASE
Usually ships in 1 day

$

$2.81

0

13
Usually ships in 1 day

$

$2.90

0

14
Usually ships in 1 day

$

$45.83

0

15
Usually ships in 1 day

$

$19.00

0

16

Toro Part# 36-4790

WASHER-THRUST
Usually ships in 5 to 8 days

$

$2.24

0

17

Toro Part# 48-2490

BELT GUIDE BRKT W A
Usually ships in 5 to 8 days

$

$78.48

0

18
Usually ships in 1 day

$

$1.00

0

Usually ships in 1 day

$

$0.38

0

20

Toro Part# 48-2560

Cover-Shift Lever
(Superseded to 55-8040)
Usually ships in 5 to 8 days

$

$15.88

0

21

Toro Part# 3256-14

WASHER-FLAT
Usually ships in 1 day

$

$0.44

0

22

Toro Part# 29-9560

LEVER-SHIFT
Usually ships in 5 to 8 days

$

$12.89

0

23

Toro Part# 29-9520

Shift Yoke
(Superseded to 60-8870)
Usually ships in 1 day

$

$20.11

0

24
Usually ships in 5 to 8 days

$

$10.05

0

25
Usually ships in 5 to 8 days

$

$67.07

0

26
Usually ships in 1 day

$

$4.35

0

27
Usually ships in 5 to 8 days

$

$70.42

0

Usually ships in 5 to 8 days

$

$62.60

0

29

Toro Part# 39-7830

KEY RETAINER
Usually ships same day

Not available

$

$

30

Toro Part# 29-9330

KEY-SHIFT
Usually ships in 1 day

$

$22.89

0

31
Usually ships in 5 to 8 days

$

$13.01

0

32

Toro Part# 29-9340

COLLAR-SHIFT
Usually ships in 5 to 8 days

$

$32.40

0

33

Toro Part# 36-4780

WASHER-PLAIN
Usually ships in 1 day

$

$5.86

0

34

Toro Part# 39-6730

Body-Sleeve
(Superseded to 55-8010)
Usually ships in 1 day

$

$16.39

0

35
Usually ships in 5 to 8 days

$

$5.52

0

36

Toro Part# 3296-2

NUT-LOCK, NI
Usually ships in 1 day

$

$1.33

0

37

Toro Part# 49-2040

SCREW-HWHTF
Usually ships in 1 day

$

$1.67

0

38

Toro Part# 32121-100

ROLL PIN 3/16 X 1 IN
Usually ships in 5 to 8 days

$

$1.39

0

39

Toro Part# 29-9570

BUSHING-YOKE
Usually ships in 5 to 8 days

$

$8.93

0

40

Part#

Case-Lower

Note: Order Complete Gear Case Assembly 48-2500

Usually ships same day

Not available

$

$

41
Usually ships in 5 to 8 days

$

$12.89

0

42

Toro Part# 39-9680

KEY RECTANGULAR
Usually ships in 1 day

$

$4.57

0

43

Toro Part# 53-7850

Spring
(Superseded to 39-9650)
Usually ships in 1 day

$

$2.23

0

44
Usually ships in 1 day

$

$4.35

0

45

Toro Part# 48-2890

THRUST WASHER
Usually ships in 5 to 8 days

$

$13.39

0

46

Toro Part# 48-2580

KEYED WASHER
Usually ships in 5 to 8 days

$

$9.94

0

47

Toro Part# 32151-68

RING-RETAINING
Usually ships in 1 day

$

$3.34

0

48

Toro Part# 39-9160

GEAR-PINION
Usually ships in 1 day

$

$12.29

0

49

Toro Part# 3296-56

NUT-LOCK, NI
Usually ships in 1 day

$

$1.55

0

50

Toro Part# 53-7790

Wheel-Inner Half
(Superseded to 121-1378-06)
Usually ships in 1 day

$

$25.70

0

Usually ships in 1 day

$

$31.29

0

52

Toro Part# 52-2410

HUB-BEARING
Usually ships in 5 to 8 days

$

$25.70

0

53

Toro Part# 53-7780

Wheel-Half
(Superseded to 121-1365-06)
Usually ships in 1 day

$

$16.76

0

54

Toro Part# 3234-26

SCREW-HHF
Usually ships in 1 day

$

$2.34

0

55

Toro Part# 52-2440

SPACER-BEARING
Usually ships in 1 day

$

$7.38

0

56

Toro Part# 52-2450

BEARING-WHEEL
Usually ships in 1 day

$

$15.64

0

57
Usually ships in 1 day

$

$2.24

0

58

Toro Part# 52-2480

SPACER-WHEEL
Usually ships in 1 day

$

$5.58

0

59

Toro Part# 44-0600

WHEEL COVER
Usually ships same day

Not available

$

$

60

Toro Part# 3296-39

NUT-LOCK, NI
Usually ships in 1 day

$

$2.23

0

61

Toro Part# 39-6670

BEVEL GEAR
Usually ships same day

Not available

$

$

62
Usually ships in 1 day

$

$10.73

0

63
Usually ships in 5 to 8 days

$

$17.88

0

64
Usually ships in 1 day

$

$10.87

0

65

Toro Part# 48-2520

Shaft-Intermediate
(Superseded to 53-7950)
Usually ships in 1 day

$

$43.22

0

66

Toro Part# 39-7841

Key Square
(Superseded to 39-7843)
Usually ships same day

Not available

$

$

67

Toro Part# 252-103

BEARING-NEEDLE, CLOSED
Usually ships in 1 day

$

$20.11

0

68

Toro Part# 32151-57

RING-RETAINING
Usually ships in 5 to 8 days

$

$2.94

0

69

Toro Part# 39-6660

PINION-BEVEL
Usually ships in 5 to 8 days

$

$32.13

0

70

Toro Part# 47-2910

WASHER-THRUST
Usually ships in 5 to 8 days

$

$10.98

0

Usually ships in 1 day

$

$6.65

0

72

Toro Part# 3257-1

KEY-WOODRUFF
Usually ships in 1 day

$

$1.61

0

73

Toro Part# 48-2460

Shaft Input
(Superseded to 13-5149)
Usually ships in 5 to 8 days

$

$58.13

0

Usually ships in 1 day

$

$6.65

0

Toro Part# 48-2500

Gear Case Assembly (Incl. Ref. #8, 10-14, 16-41 & 61-73)
(Superseded to 61-8032)

Note: Not illustrated

Usually ships in 1 day

$

$37.24

0

Toro Part# 53-7730

Wheel 8 Tire Assembly (Incl. Ref. #49-56)
(Superseded to 121-1379)

Note: Not illustrated

Usually ships in 1 day

$

$100.55

0
