22038 - Toro 53cm Walk-Behind Mower (SN: 210000001 - 210999999) (2001) Recoil Assembly Parts Diagram

53cm Walk-Behind Mower

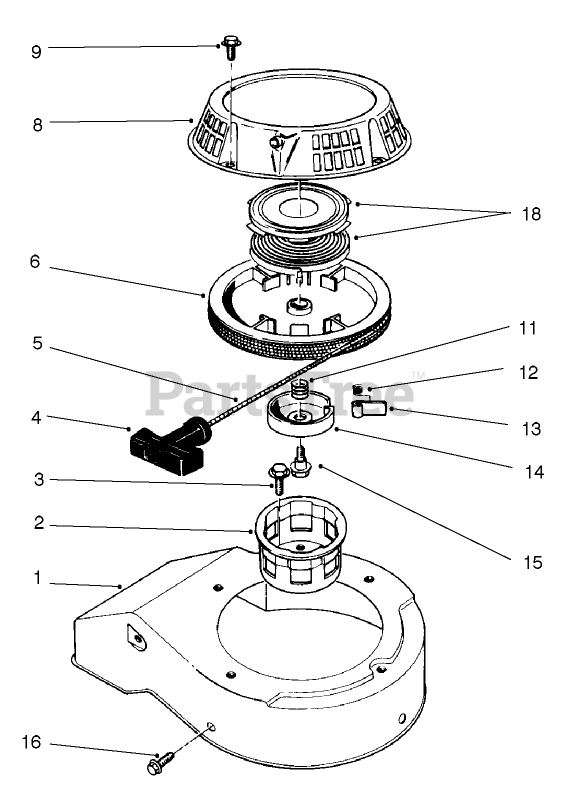

Recoil Assembly Parts Diagram

  • Title

1

Toro 81-2080

DISCONTINUED
(Superseded to 81-2070)

$

$

Not available

2

Toro 81-2170

PULLEY-CUP, STARTER

$109.99

$

Usually ships in 3-6 days

0

3

Toro 81-1300

BOLT

$10.99

$

Usually ships in 3-6 days

0

4

Toro 81-1630

HANDLE-RECOIL

$

$

Not available

5

Toro 81-1270

See Supercession: 613773
(Superseded to 613773)

$38.99

$

In Stock, only 2 left!

0

6

Toro 81-1210

REEL

$58.99

$

In Stock, only 2 left!

0

8

Toro 81-2100

CASE-STARTER

$244.99

$

Usually ships in 3-6 days

0

9

Toro 81-1280

SCREW-HHF

$1.99

$

In Stock, only 2 left!

0

11

Toro 81-1240

SPRING

$

$

Not available

12

Toro 81-1220

SPRING

$

$

Not available

13

Toro 81-1230

DISCONTINUED

$

$

Not available

14

Toro 81-1250

RETAINER

$24.99

$

In Stock, only 1 left!

0

15

Toro 81-1260

BOLT

$

$

Not available

16

Toro 53-1340

DISCONTINUED

$

$

Not available

18

Toro 81-2300

SPRING

$46.99

$

In Stock, only 2 left!

0
