22040 - Toro 21" ProLine Recycler II Walk-Behind Mower (SN: 220000001 - 220999999) (2002) FRONT WHEEL AND TIRE ASSEMBLY Parts Diagram

21" ProLine Recycler II Walk-Behind Mower

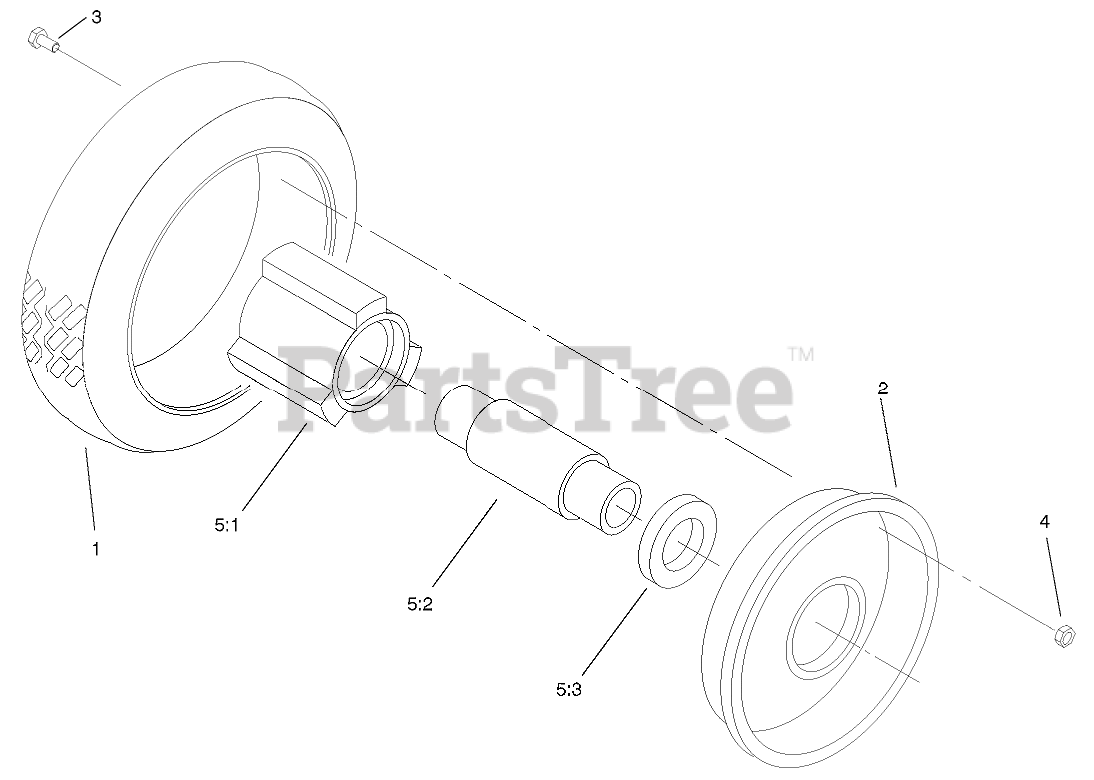

FRONT WHEEL AND TIRE ASSEMBLY Parts Diagram

  • Title

1

Toro 53-7740

TIRE

$36.99

$

In Stock, only 3 left!

0

2

Toro 53-7780-06

PLATE-WHEEL, HALF
(Superseded to 121-1365-06)

$19.99

$

In Stock, only 3 left!

0

3

Toro 321-2

SCREW-HH

$3.99

$

In Stock, only 3 left!

0

4

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

5:1

Toro 52-2410

HUB-BEARING

$35.99

$

In Stock, Qty 14

0

5:2

Toro 52-2440

SPACER-BEARING

$9.99

$

In Stock, Qty 5

0

5:3

Toro 52-2450

BEARING-WHEEL

$19.99

$

In Stock, Qty 20+

0

5

Hub and Bearing ASM

Note: Not serviced

$

$

Not available
