22043 - Toro Recycler Walk-Behind Mower (SN: 079000001 - 079999999) (1997) HOUSING ASSEMBLY Parts Diagram

Recycler Walk-Behind Mower

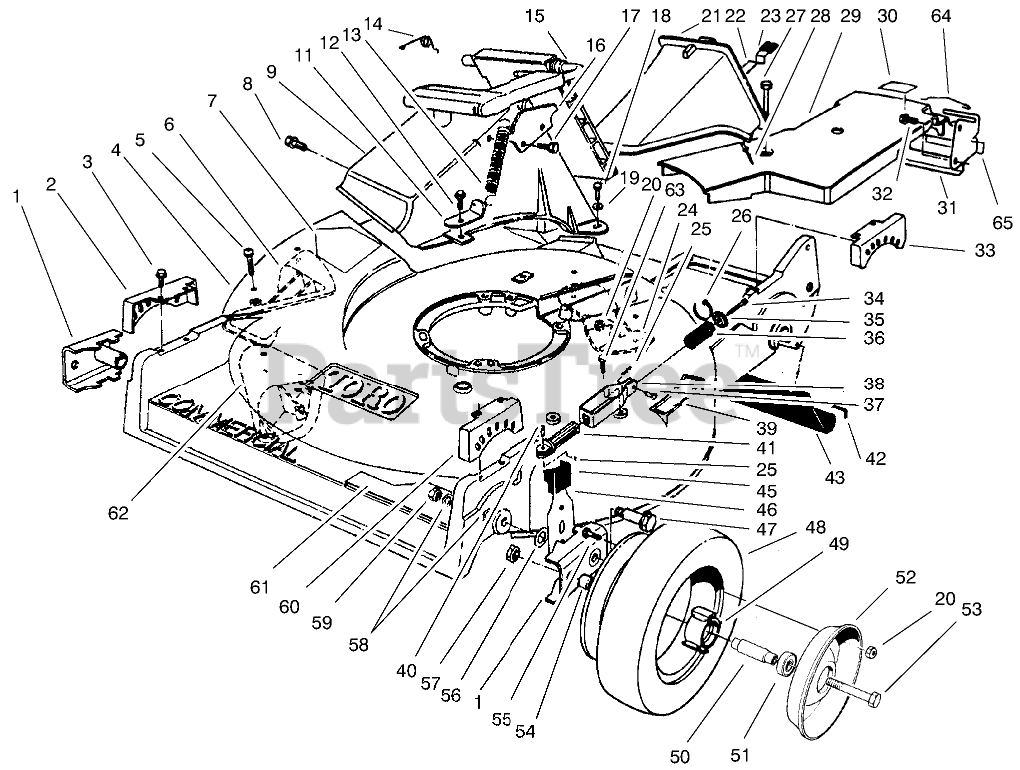

HOUSING ASSEMBLY Parts Diagram

  • Title
1

Toro Part# 61-8300

ARM-PIVOT, FRONT
Usually ships in 1 day

$

$23.47

0

2

Toro Part# 49-8770

QUADRANT-FRONT, RH
Usually ships in 1 day

$

$21.23

0

3

Toro Part# 49-2040

SCREW-HWHTF
Usually ships in 1 day

$

$1.67

0

4

Toro Part# 14-9479

Housing-Commercial (Incl. Ref. #5-7, 24, & 62)(Incl. Ref. #28 pg. 4)
Usually ships same day

Not available

$

$

5
Usually ships in 1 day

$

$0.82

0

6

Toro Part# 92-1730

KICKER-RH
Usually ships in 1 day

$

$15.88

0

7

Toro Part# 43-8480

DECAL-DANGER
Usually ships in 1 day

$

$5.18

0

8

Toro Part# 46-6810

SCREW AND WASHER ASM
Usually ships in 1 day

$

$3.08

0

9

Toro Part# 82-9150

DISCHARGE TUNNEL
Usually ships in 5 to 8 days

$

$124.45

0

9

Toro Part# 82-9152

TUNNEL-DISCHARGE
Usually ships in 1 day

$

$83.84

0

11

Toro Part# 71-9350

BRACKET-SPRING
Usually ships in 5 to 8 days

$

$11.59

0

12

Toro Part# 46-6811

SCREW-HWH
Usually ships in 1 day

$

$2.23

0

13

Toro Part# 76-4660

SPRING-DOOR
Usually ships in 1 day

$

$8.60

0

14

Toro Part# 80-3770

RETAINER-DOOR
Usually ships in 1 day

$

$2.23

0

15

Toro Part# 77-0200

DOOR ASSEMBLY
Usually ships same day

Not available

$

$

15

Toro Part# 93-7351

DISCHARGE DOOR ASM
Usually ships in 1 day

$

$90.55

0

16

Toro Part# 76-4570

DOOR LATCH PLATE
Usually ships in 5 to 8 days

$

$5.22

0

16

Toro Part# 93-3154

LATCH-PLATE
Usually ships in 1 day

$

$4.04

0

17

Toro Part# 46-8090

SCREW-PLASTITE
Usually ships in 1 day

$

$2.23

0

18

Toro Part# 321-7

SCREW-HH
Usually ships in 1 day

$

$3.82

0

19

Toro Part# 3256-22

WASHER-FLAT
Usually ships in 1 day

$

$0.44

0

20

Toro Part# 3296-42

NUT-LOCK, NI
Usually ships in 1 day

$

$0.40

0

21

Toro Part# 77-0500

Plug-Discharge (Incl. Ref. #22, 23, & 28)
Usually ships in 5 to 8 days

$

$50.30

0

22

Toro Part# 76-4640

LATCH-PLUG, DISCHARGE
Usually ships in 5 to 8 days

$

$5.57

0

23

Toro Part# 76-4650

GRIP-LATCH
Usually ships in 5 to 8 days

$

$3.37

0

24

Toro Part# 92-1750

KICKER-REAR
Usually ships in 1 day

$

$15.38

0

25

Toro Part# 3272-1

PIN-COTTER
Usually ships in 1 day

$

$0.27

0

26
Usually ships in 1 day

$

$0.77

0

27

Toro Part# 37-7260

SCREW-HHFTF
Usually ships in 1 day

$

$4.52

0

28

Toro Part# 3295-35

RIVET-HEAD, FLAT
Usually ships in 1 day

$

$1.62

0

29

Toro Part# 86-5230

BELT COVER
Usually ships same day

Not available

$

$

30

Toro Part# 52-2620

LABEL-GREASE
(Superseded to 119-7894)
Usually ships in 1 day

$

$2.01

0

31

Toro Part# 74-1741

BRACKET-ADJUSTMENT, TRACTION
Usually ships in 5 to 8 days

$

$20.11

0

32

Toro Part# 32144-70

SCREW-HWHTF
Usually ships in 1 day

$

$1.81

0

33

Toro Part# 49-8740

QUADRANT-REAR, LH
Usually ships in 5 to 8 days

$

$21.23

0

Toro Part# 49-8750

QUADRANT-REAR, RH

Note: Not illustrated

Usually ships in 1 day

$

$21.23

0

34

Toro Part# 46-7040

SCREW-HWHTF
Usually ships in 5 to 8 days

$

$2.19

0

35

Toro Part# 65-5280

RETAINER-SPRING
Usually ships in 5 to 8 days

$

$2.26

0

36
Usually ships in 5 to 8 days

$

$8.93

0

37

Toro Part# 84-9040

PIN-CABLE
Usually ships in 5 to 8 days

$

$10.01

0

38

Toro Part# 84-8880

Bracket-Spring
(Superseded to 84-8880-03)
Usually ships same day

Not available

$

$

39

Toro Part# 46-7370

STEP PAD DECAL
Usually ships in 5 to 8 days

$

$19.15

0

40

Toro Part# 84-9050

PIN-SPRING
Usually ships in 5 to 8 days

$

$10.61

0

41

Toro Part# 84-8870

GUIDE-SPRING
(Superseded to 106-0842)
Usually ships in 5 to 8 days

$

$13.41

0

42

Toro Part# 33-3208

ROD-SHIELD
Usually ships in 1 day

$

$11.72

0

43

Toro Part# 44-0580

SHIELD-TRAILING
(Superseded to 112-9989)
Usually ships in 1 day

$

$22.74

0

45
Usually ships in 1 day

$

$4.46

0

46

Toro Part# 66-7560

FRONT SPRING ARM ASM
Usually ships in 1 day

$

$11.14

0

47

Toro Part# 27-6232

BOLT-WHEEL
(Superseded to 114-3468)
Usually ships in 1 day

$

$3.91

0

Usually ships in 1 day

$

$31.29

0

49

Toro Part# 52-2410

HUB-BEARING
Usually ships in 5 to 8 days

$

$25.70

0

50

Toro Part# 52-2440

SPACER-BEARING
Usually ships in 1 day

$

$7.38

0

51

Toro Part# 52-2450

BEARING-WHEEL
Usually ships in 1 day

$

$15.64

0

52

Toro Part# 53-7780

Wheel-Half
(Superseded to 121-1365-06)
Usually ships in 1 day

$

$16.76

0

53
Usually ships in 1 day

$

$2.24

0

54

Toro Part# 52-2480

SPACER-WHEEL
Usually ships in 1 day

$

$5.58

0

55

Toro Part# 321-2

SCREW-HH
Usually ships in 1 day

$

$2.88

0

56

Toro Part# 257-3

WASHER-THRUST
Usually ships in 1 day

$

$12.98

0

57

Toro Part# 32152-2

NUT-LOCK, CONE
Usually ships in 1 day

$

$1.64

0

58
Usually ships in 1 day

$

$1.38

0

59
Usually ships in 1 day

$

$1.44

0

60

Toro Part# 49-8760

QUADRANT-FRONT, LH
Usually ships in 1 day

$

$21.23

0

61

Toro Part# 92-1796

DECAL - RECYCLER
Usually ships in 5 to 8 days

$

$7.38

0

62

Toro Part# 92-1720

KICKER-FRONT
Usually ships in 1 day

$

$15.88

0

63

Toro Part# 323-6

SCREW-HH
Usually ships in 1 day

$

$2.21

0

64

Toro Part# 46-7030

RETAINER-CABLE
Usually ships in 1 day

$

$4.75

0

65

Toro Part# 74-1970

DECAL-POSITION, GEAR
Usually ships in 1 day

$

$4.62

0

Toro Part# 53-7720

Wheel &Tire Assembly (Incl. Ref. #20, 48, 49, 52 & 55)
(Superseded to 121-1380)

Note: Not illustrated

Usually ships in 1 day

$

$70.42

0
