22043 - Toro Recycler Walk-Behind Mower (SN: 099000001 - 099999999) (1999) GAS TANK ASSEMBLY Parts Diagram

Recycler Walk-Behind Mower

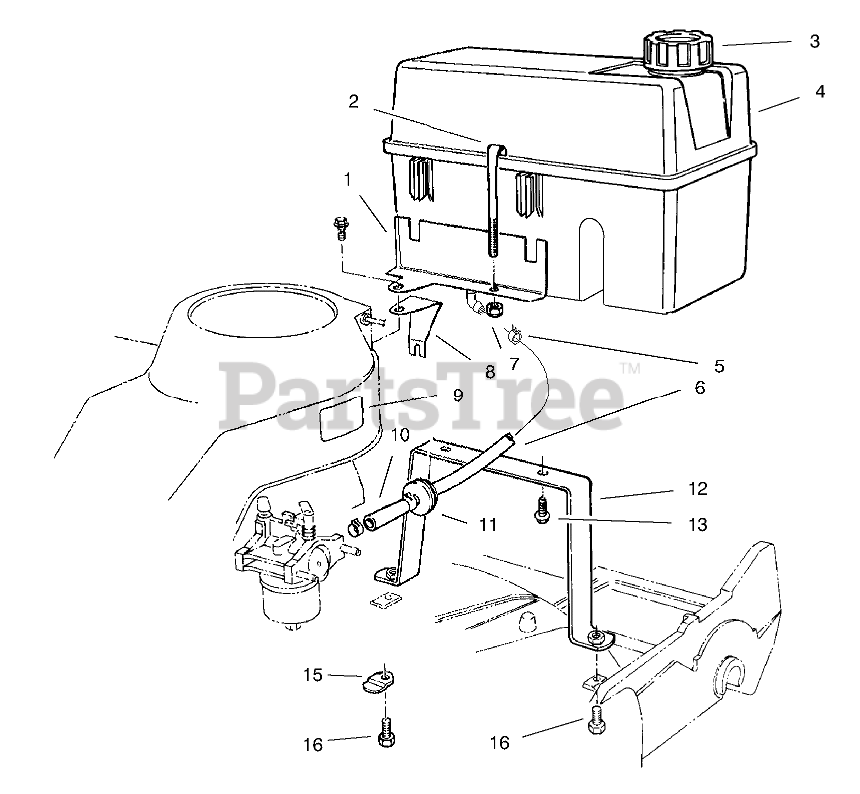

GAS TANK ASSEMBLY Parts Diagram

  • Title
1

Toro Part# 74-2110

Bracket Tank
(Superseded to 74-2110-03)
Usually ships in 5 to 8 days

$

$14.21

0

2

Toro Part# 77-2840

RETAINER - FUEL TANK
Usually ships in 5 to 8 days

$

$46.48

0

3

Toro Part# 55-3575

GAS CAP ASM
Usually ships in 1 day

$

$14.52

0

4

Toro Part# 94-5827

Tank-Gas
(Superseded to 117-3510)
Usually ships in 1 day

$

$74.90

0

5

Toro Part# 2412-95

CLAMP-FUEL LINE
Usually ships in 1 day

$

$1.11

0

6

Toro Part# 68-3633

HOSE-FUEL
Usually ships in 1 day

$

$4.18

0

7

Toro Part# 3296-42

NUT-LOCK, NI
Usually ships in 1 day

$

$0.40

0

8

Toro Part# 77-0520

Support-Bracket
(Superseded to 77-0520-03)
Usually ships in 5 to 8 days

$

$4.43

0

9

Toro Part# 62-7600

DECAL - FUEL
Usually ships in 5 to 8 days

$

$9.37

0

10
Usually ships in 1 day

$

$4.94

0

11

Toro Part# 71-9280

FILTER-FUEL
(Superseded to 139-5916)
Usually ships in 1 day

$

$7.82

0

12

Toro Part# 84-9160

Base-Tank
(Superseded to 84-9160-03)
Usually ships in 1 day

$

$30.86

0

13

Toro Part# 46-8091

SCREW-HWH
Usually ships in 1 day

$

$1.11

0

15

Toro Part# 84-8930

SHIELD-RETAINER
Usually ships in 1 day

$

$2.23

0

16

Toro Part# 323-7

SCREW-HH
Usually ships in 1 day

$

$2.57

0
