22043 - Toro Recycler Walk-Behind Mower (SN: 200000001 - 200999999) (2000) ENGINE & FUEL TANK ASSEMBLY Parts Diagram

Recycler Walk-Behind Mower

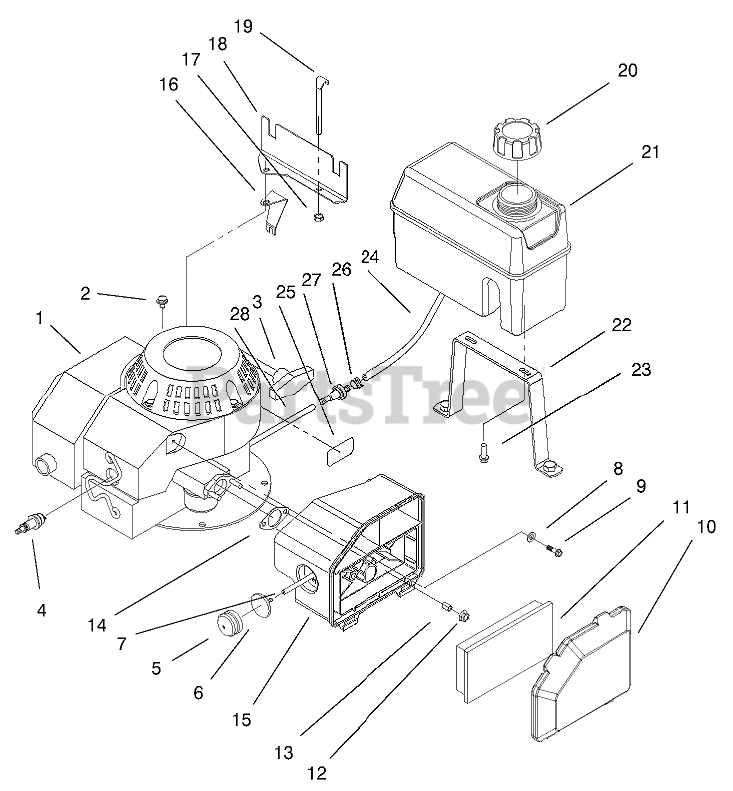

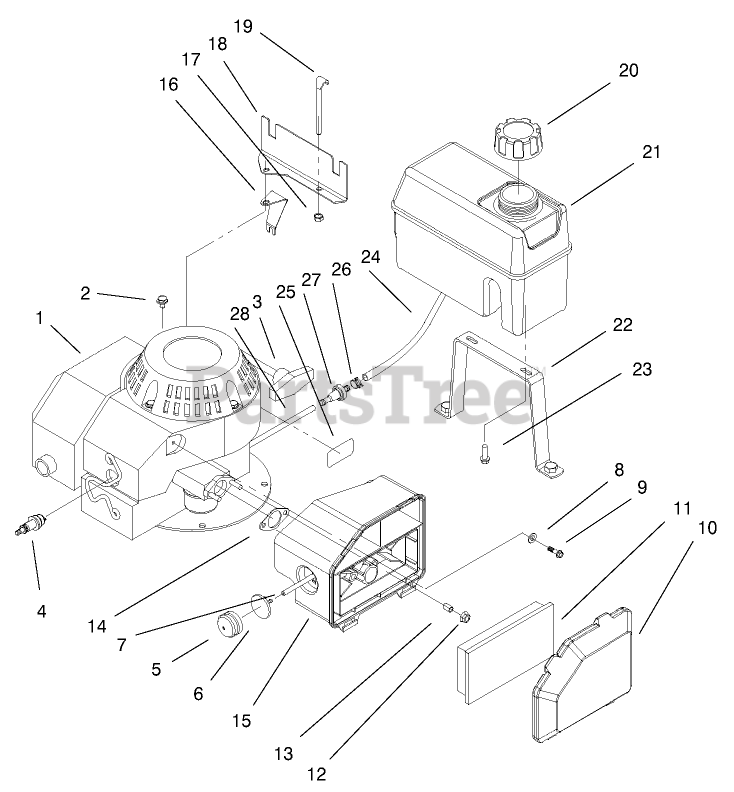

ENGINE & FUEL TANK ASSEMBLY Parts Diagram

  • Title

1

Engine-121cc 2 Cycle

$

$

Not available

2

Toro 81-1280

SCREW-HHF

$1.99

$

In Stock, Qty 6

0

3

Toro 81-2030

STARTER ASM
(Superseded to 81-5940)

$

$

Not available

4

Toro 81-0181

Sparkplug
(Superseded to 50-1170)

$3.49

$

In Stock, Qty 20+

0

5

Toro 66-7460

BULB-PRIMER

$6.49

$

In Stock, Qty 20+

0

6

Toro 44-2750

BODY-PRIMER

$8.99

$

In Stock, Qty 20+

0

7

Toro 44-3172

HOSE-PRIMER

$5.49

$

In Stock, Qty 6

0

8

Toro 3256-16

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

9

Toro 51-2690

SCREW-HH

$1.99

$

In Stock, only 4 left!

0

10

Toro 63-9340

COVER-AIR CLEANER

$49.99

$

In Stock, only 2 left!

0

11

Toro 63-9380

ELEMENT-AIR CLEANER

$11.99

$

In Stock, Qty 7

0

12

Toro 50-7180

NUT

$5.49

$

In Stock, only 3 left!

0

13

Toro 62-3980

SPACER

$2.49

$

Usually ships in 3-6 days

0

14

Toro 81-0090

GASKET-AIR CLEANER

$7.99

$

In Stock, Qty 10

0

15

Toro 63-9330

BODY-AIR CLEANER

$

$

Not available

16

Toro 77-0520-03

SUPPORT-TANK BRACKET

$5.49

$

Usually ships in 3-6 days

0

17

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

18

Toro 74-2110-03

BRACKET-TANK

$17.99

$

Usually ships in 3-6 days

0

19

Toro 77-2840

RETAINER - FUEL TANK

$60.99

$

Usually ships in 3-6 days

0

20

Toro 55-3575

GAS CAP ASM

$17.99

$

In Stock, only 3 left!

0

21

Toro 94-5827

Tank-Gas
(Superseded to 117-3510)

$92.99

$

In Stock, Qty 5

0

22

Toro 84-9160-03

BASE-TANK
(Superseded to 107-4131-03)

$

$

Not available

23

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

24

Toro 68-3633

HOSE-FUEL

$5.49

$

In Stock, only 1 left!

0

25

Toro 62-7600

DECAL - FUEL

$11.99

$

Usually ships in 3-6 days

0

26

Toro 2412-95

CLAMP-FUEL LINE

$1.49

$

In Stock, Qty 14

0

27

Toro 71-9280

FILTER-FUEL
(Superseded to 139-5916)

$9.49

$

In Stock, Qty 20+

0

28

Toro 51-3211

LINE-GAS

$6.49

$

In Stock, Qty 6

0
