221 LHP (31AM2T6D710) - Cub Cadet 21" Snow Thrower (2010) 370-JU Starter Assembly & Blower Housing Parts Diagram

21" Snow Thrower

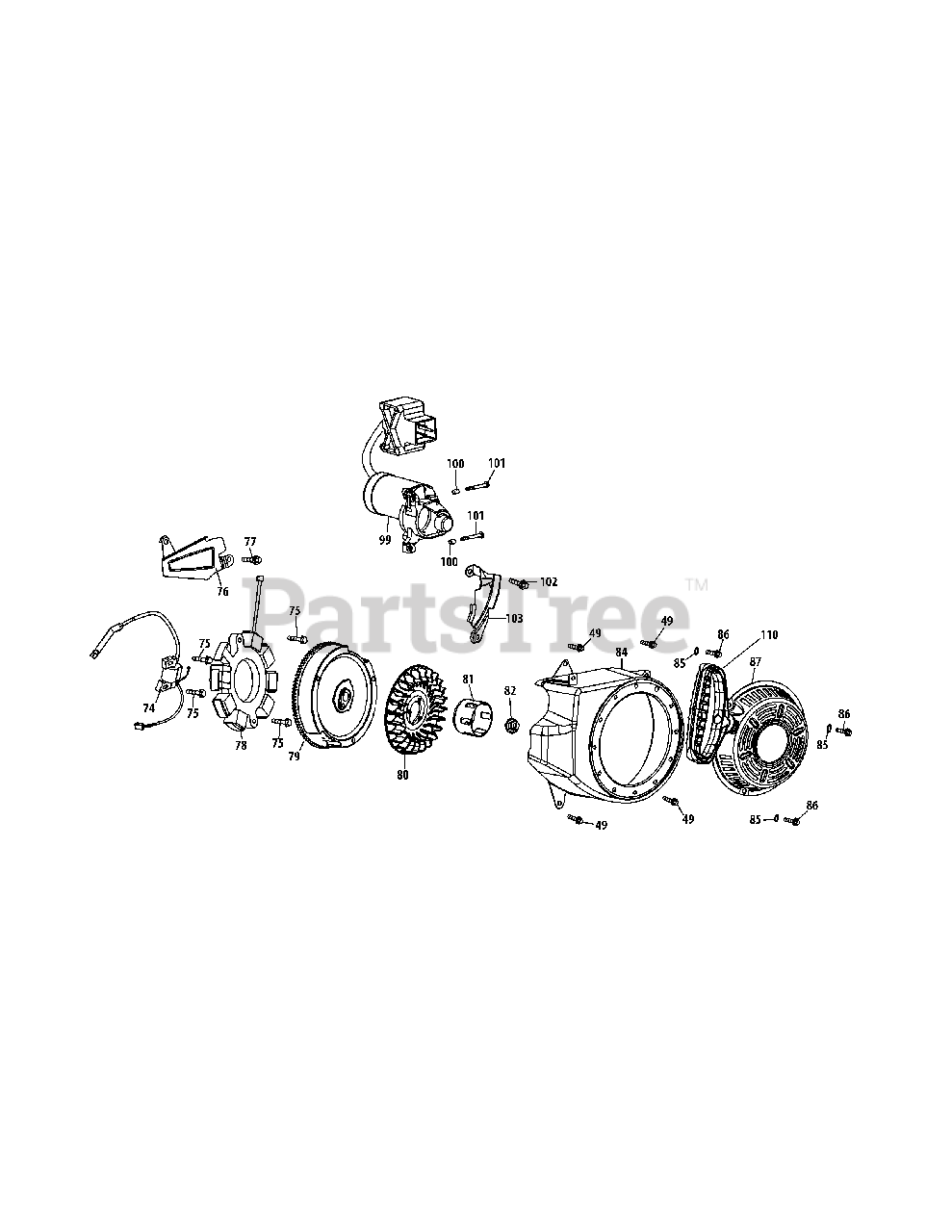

370-JU Starter Assembly & Blower Housing Parts Diagram

  • Title

49

Cub Cadet 710-04941

Bolt M6×12
(Superseded to 710-05103)

$4.49

$

In Stock, only 2 left!

0

74

Cub Cadet 951-12013

Ignition Coil Assembly

$116.99

$

Usually ships in 3-6 days

0

75

Cub Cadet 710-04919

Bolt M6×25

$4.99

$

Usually ships in 3-6 days

0

76

Cub Cadet 951-11110

Air Flow Shield

$4.49

$

Usually ships in 3-6 days

0

77

Cub Cadet 710-04940

Bolt M6×10

$5.99

$

In Stock, only 3 left!

0

78

Cub Cadet 951-12050

Coil Assy., Charge
(Superseded to 951-12050A)

$102.99

$

Usually ships in 3-6 days

0

79

Cub Cadet 951-10805

Flywheel

$141.99

$

Usually ships in 3-6 days

0

80

Cub Cadet 951-10934

Cooling Fan
(Superseded to 951-10909A)

$

$

Not available

81

Cub Cadet 951-10911

Starter Cup

$18.99

$

Usually ships in 3-6 days

0

82

Cub Cadet 712-04209

Nut, Special, M14×1.5
(Superseded to 712-04287)

$7.49

$

In Stock, Qty 9

0

84

Cub Cadet 751-12099

Blower Housing
(Superseded to 951-12099)

$

$

Not available

85

Cub Cadet 736-04455

Washer
(Superseded to 736-04455B)

$7.49

$

Usually ships in 3-6 days

0

86

Cub Cadet 710-04974

Bolt M6×10

$7.49

$

In Stock, only 3 left!

0

87

Cub Cadet 951-12015

Recoil Starter
(Superseded to 951-14152)

$99.99

$

In Stock, only 2 left!

0

99

Cub Cadet 951-10645A

Electric Starter

$322.99

$

Usually ships in 3-6 days

0

100

Cub Cadet 715-04088

Dowel Pin 8×8
(Superseded to 715-04088A)

$3.99

$

In Stock, Qty 6

0

101

Cub Cadet 710-05182

Bolt M6×32

$4.49

$

In Stock, only 1 left!

0

102

Cub Cadet 710-04979

Bolt M6×18

$4.49

$

Usually ships in 3-6 days

0

103

Cub Cadet 951-11109

Blower Housing Shield

$7.99

$

Usually ships in 3-6 days

0

110

Cub Cadet 731-05696

Starter Handle

$17.99

$

In Stock, only 2 left!

0
