221 LHP (31AM2T6D710) - Cub Cadet 21" Snow Thrower (2010) Shroud, Chute & Handle (221LHP) Parts Diagram

21" Snow Thrower

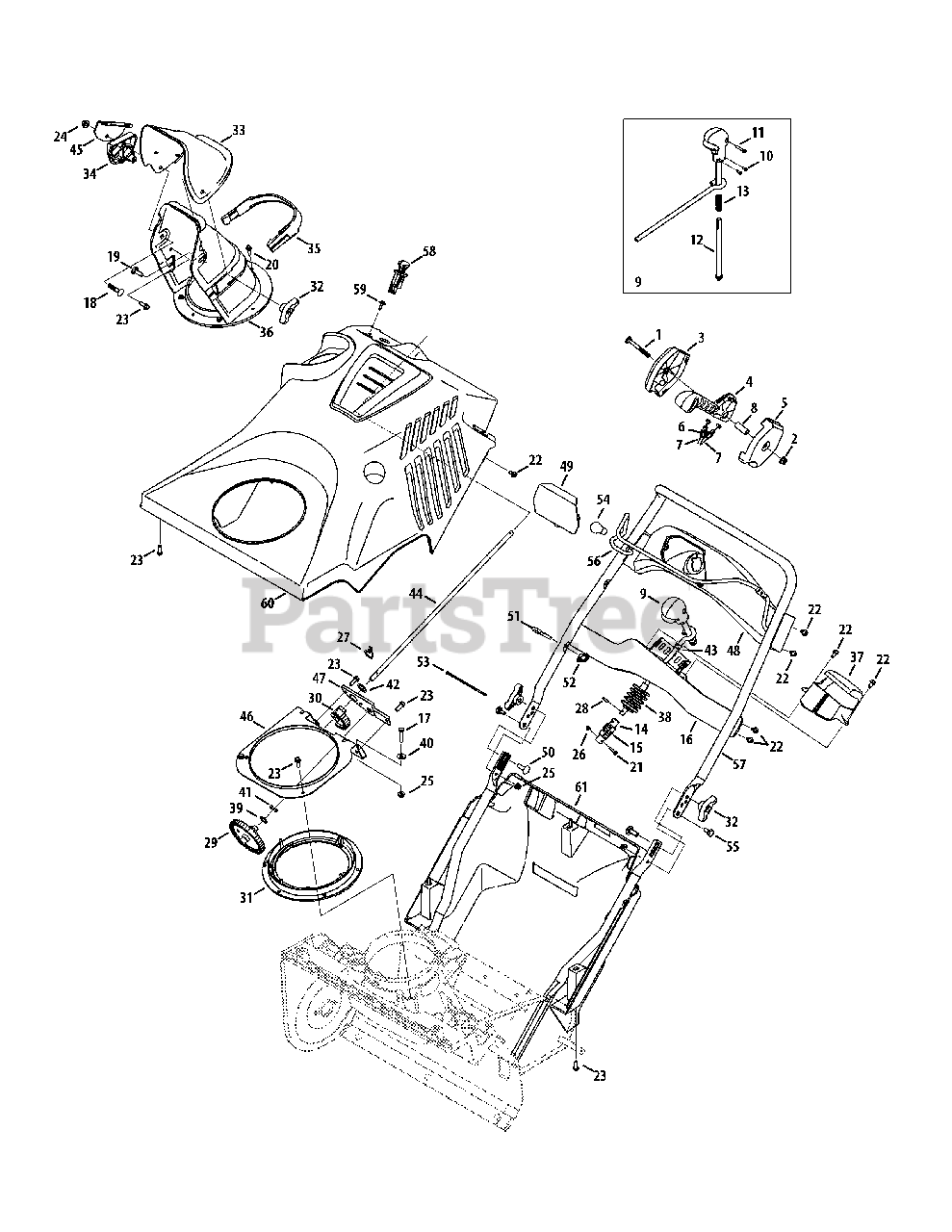

Shroud, Chute & Handle (221LHP) Parts Diagram

  • Title

1

Cub Cadet 710-05163

Carriage Bolt, 5/16-18 x 2.5

$3.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

3

Cub Cadet 731-07651

Chute Control Panel

$8.99

$

In Stock, Qty 9

0

4

Cub Cadet 731-07654

Cable Handle Guide
(Superseded to 731-07654B)

$15.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 731-07656

Chute Control Panel, Inner
(Superseded to 731-07656A)

$8.49

$

In Stock, Qty 6

0

6

Cub Cadet 731-07868

Cable Clip

$3.49

$

In Stock, only 1 left!

0

7

Cub Cadet 946-04722

Cable

$26.99

$

In Stock, Qty 9

0

8

Cub Cadet 750-05414

Spacer, .325 ID x .496 OD x 1.34
(Superseded to 750-05414A)

$2.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 631-04526P

Chute Control Assembly

$86.99

$

In Stock, only 1 left!

0

10

Cub Cadet 710-04352

Screw, #6 x .375

$3.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 710-04353

Screw, #8 x 1.00

$6.49

$

Usually ships in 3-6 days

0

12

Cub Cadet 731-08018

Chute Rod

$8.49

$

In Stock, only 1 left!

0

13

Cub Cadet 732-04789

Spring, .460 OD x 1.469

$2.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 684-04350

Joint Block Assembly

$26.99

$

In Stock, only 4 left!

0

15

Cub Cadet 715-0150

Roll Pin, 3/16 Dia. x 1.1 LG.

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 684-04383

Indicator Bracket Assembly

Variations

Cub Cadet 684-04383-0637

BRACKET-INDICATOR - POWDER BLACK (0637)

$96.99

$

Usually ships in 3-6 days

0

$77.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 710-0106

Hex Screw, 1/4-20 x 1.25

$3.99

$

In Stock, only 1 left!

0

18

Cub Cadet 710-0262

Carriage Bolt, 5/16-18 x 1.00

$3.99

$

In Stock, Qty 14

0

19

Cub Cadet 710-04071

Carriage Bolt, 5/16-18 x 1.00

$4.49

$

In Stock, Qty 16

0

20

Cub Cadet 710-05108

Hex Washer Screw, 1/4 x .750

$3.49

$

In Stock, Qty 20+

0

21

Cub Cadet 710-05179

Screw, #8-32 x .875
(Superseded to 710-05179A)

$4.49

$

Usually ships in 3-6 days

0

22

Cub Cadet 710-0599

Hex Washer Screw, 1/4-20 x .500

$3.99

$

In Stock, Qty 20+

0

23

Cub Cadet 710-0895

Screw, Hi-Lo:1/4-15, 0.75

$5.99

$

In Stock, Qty 20+

0

24

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

25

Cub Cadet 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

26

Cub Cadet 712-04263

Hex Lock Nut, #8-32

$3.49

$

Usually ships in 3-6 days

0

27

Cub Cadet 714-04003

Internal Cotter Pin, .125 x 2.5

$7.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 715-04095

Pin, .156 x .875

$4.99

$

In Stock, only 2 left!

0

29

Cub Cadet 917-04818

Bevel Gear, 40T/11T

$

$

Not available

30

Cub Cadet 917-04820

Spur Gear, 32T
(Superseded to 717-04940)

$12.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 917-04844

Bevel Gear, 95T
(Superseded to 917-04844B)

$32.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 720-04122

Wing Knob, 5/16-18

$6.49

$

In Stock, Qty 20+

0

33

Cub Cadet 731-04427A

Upper Chute
(Superseded to 731-04427B)

$15.99

$

In Stock, only 2 left!

0

34

Cub Cadet 731-06451

Cable Guide

$4.99

$

In Stock, only 1 left!

0

35

Cub Cadet 731-07708

Chute Plug

$12.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 931-07753

Lower Chute
(Superseded to 931-07753A)

$32.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 731-07957

Chute Cover

$11.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 735-04253

Bellows-Chute Crank
(Superseded to 720-04174)

$8.49

$

Usually ships in 3-6 days

0

39

Cub Cadet 936-0108

Flat Washer, .510 x .750 x .033

$6.49

$

In Stock, Qty 7

0

40

Cub Cadet 736-0173

Flat Washer, .28 x .74 x .063

$3.99

$

In Stock, Qty 10

0

41

Cub Cadet 936-0232

Wave Washer, .531 x .781 x .013
(Superseded to 736-0232)

$4.49

$

In Stock, Qty 18

0

42

Cub Cadet 736-04161

Flat Washer, .75 x 1.00 x .06

$6.49

$

In Stock, only 2 left!

0

43

Cub Cadet 941-0475

Plastic Bushing, .380 ID

$3.99

$

In Stock, Qty 20+

0

44

Cub Cadet 747-05299

Chute Rod
(Superseded to 747-05299A)

$14.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 784-5594

Cable Bracket

Variations

Cub Cadet 784-5594-0498

Cable Bracket - OLD CUB YELLOW (0498)

$10.99

$

In Stock, only 1 left!

0

Cub Cadet 784-5594-0637

Cable Bracket - POWDER BLACK (0637)

$10.99

$

In Stock, only 1 left!

0

Cub Cadet 784-5594-0716

Cable Bracket - CUB YELLOW-99 (0716)

$10.99

$

In Stock, only 1 left!

0

$10.99

$

Usually ships in 3-6 days

0

46

Cub Cadet 790-00401

Gear Retainer Bracket

Variations

Cub Cadet 790-00401-0637

BRACKET-CHUTE GEAR - POWDER BLACK (0637)

$19.99

$

Usually ships in 3-6 days

0

$16.99

$

Usually ships in 3-6 days

0

47

Cub Cadet 790-00416

Gear Mounting Plate

$5.49

$

Usually ships in 3-6 days

0

48

Cub Cadet 931-04504

Handle Panel Assembly

$50.99

$

Usually ships in 3-6 days

0

49

Cub Cadet 731-07784

Handle Panel Lens

$9.99

$

Usually ships in 3-6 days

0

50

Cub Cadet 710-04998

Carriage Screw, 5/16-18 x 1.00

$5.49

$

In Stock, Qty 20+

0

51

Cub Cadet 710-1205

Eye Bolt, 1/4-20

$3.99

$

In Stock, Qty 15

0

52

Cub Cadet 720-0279

Handle Knob, 1/4-20

$4.49

$

In Stock, Qty 20+

0

53

Cub Cadet 725-0157

Cable Tie

$3.49

$

In Stock, only 4 left!

0

54

Cub Cadet 725-1629

Lamp
(Superseded to 925-1629)

$10.99

$

In Stock, Qty 14

0

55

Cub Cadet 738-04419A

Shoulder Screw, .375 x .148 x 1/4-20

$3.99

$

In Stock, Qty 20+

0

56

Cub Cadet 747-05327-0637

Auger Bail
(Superseded to 747-05327C-0637)

$15.99

$

Usually ships in 3-6 days

0

57

Cub Cadet 749-04693-0637

Upper Handle
(Superseded to 749-04693A-0637)

$

$

Not available

58

Cub Cadet 925-04031A

Ignition Switch Assembly
(Superseded to 951-10637)

$13.99

$

In Stock, only 1 left!

0

59

Cub Cadet 710-04669

Hex Washer Screw, 10-16 x .625

$3.49

$

In Stock, Qty 20+

0

60

Cub Cadet 731-07721

Top Cover
(Superseded to 759-04314B)

$142.99

$

Usually ships in 3-6 days

0

61

Cub Cadet 731-07725

Bottom Cover
(Superseded to 731-07725B)

$52.99

$

In Stock, only 2 left!

0

Cub Cadet 925-04139

Harness Assembly

Note: Not shown

$21.99

$

Usually ships in 3-6 days

0
