22118 - Gravely 44" Power Brush for Tractor DRIVE AND BRUSH Parts Diagram

44" Power Brush for Tractor

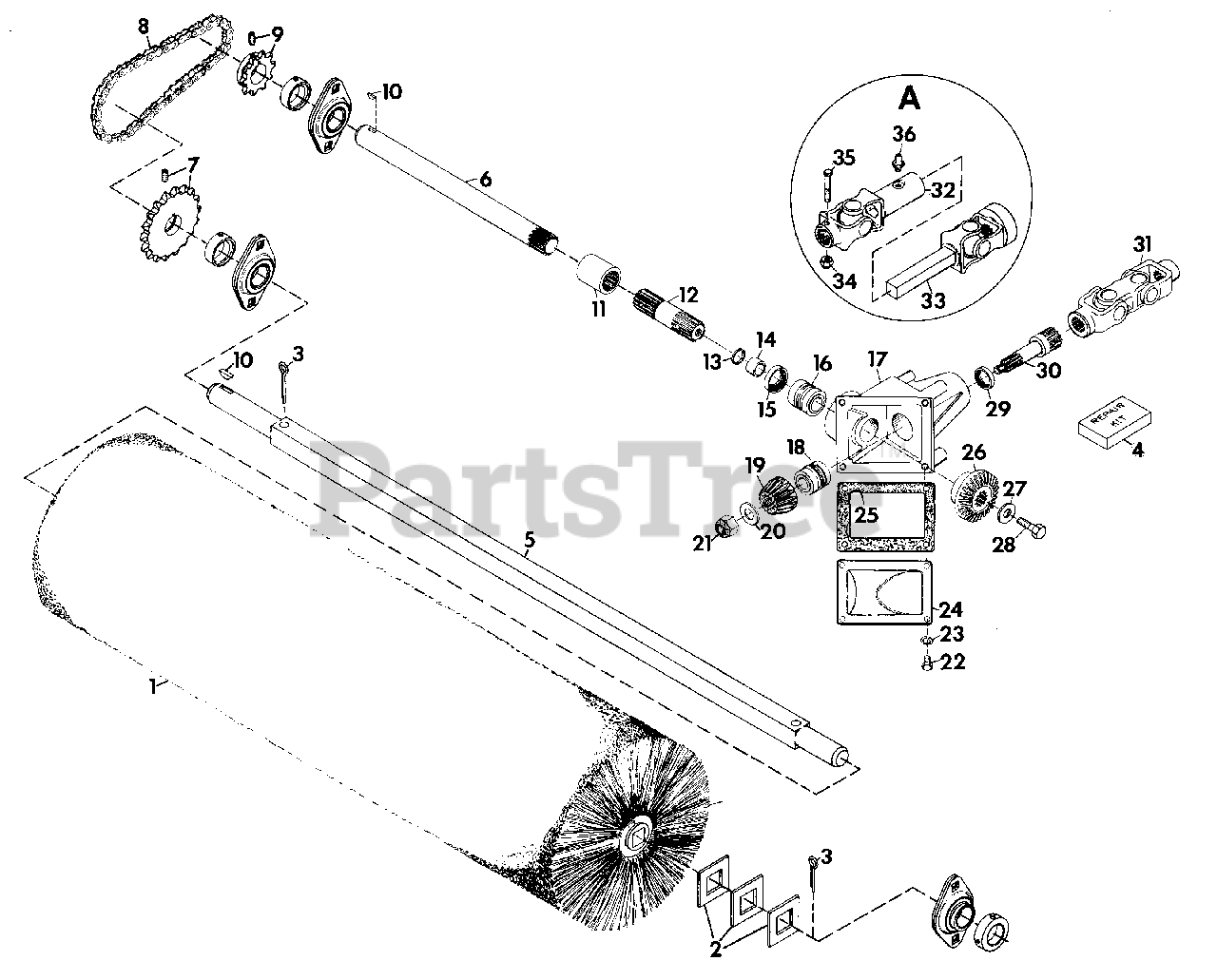

DRIVE AND BRUSH Parts Diagram

  • Title

1

Gravely 022115

BRUSH, 44 INCH
(Superseded to 08518600)

$646.99

$

Usually ships in 4-12 days

0

2

Gravely 022117

SPACER, SQUARE 1.010X2.000X.125
(Superseded to 08518800)

$16.99

$

Usually ships in 4-12 days

0

3

Gravely 103422

PIN, COTTER .250X2.000
(Superseded to 06713100)

$3.99

$

Usually ships in 4-12 days

0

4

Gravely 012134

KIT, REPAIR U-JOINT ROCKWELL STD.
(Superseded to 03155800)

$

$

Not available

4

Gravely 024560

KIT, REPAIR U-JOINT NEAPCO
(Superseded to 03155800)

$

$

Not available

5

Gravely 022116

SHAFT, POWER BRUSH
(Superseded to 08518700)

$258.99

$

Usually ships in 4-12 days

0

6

Gravely 019275

SHAFT
(Superseded to 08509200)

$89.99

$

Usually ships in 4-12 days

0

7

Gravely 019287

SPROCKET
(Superseded to 08509900)

$171.99

$

Usually ships in 4-12 days

0

8

Gravely 019288

CHAIN, ROLLER
(Superseded to 08601400)

$83.99

$

In Stock, only 1 left!

0

9

Gravely 019282

SPROCKET
(Superseded to 08509800)

$87.99

$

Usually ships in 4-12 days

0

10

Gravely 218211

KEY, WOODRUFF .250X.750 HARD
(Superseded to 06601200)

$2.99

$

In Stock, only 4 left!

0

11

Gravely 019272

COUPLING
(Superseded to 07017100)

$55.99

$

Usually ships in 4-12 days

0

12

Gravely 014637

SHAFT, DRIVE
(Superseded to 08502700)

$155.99

$

Usually ships in 4-12 days

0

13

Gravely 014642

RING, RETAINING 1.000 SHAFT
(Superseded to 05711600)

$9.49

$

Usually ships in 4-12 days

0

14

Gravely 014641

SPACER
(Superseded to 08700500)

$23.99

$

Usually ships in 4-12 days

0

15

Gravely 014646

SEAL, OIL 1.250X1.987X.250
(Superseded to 05613700)

$14.99

$

In Stock, only 3 left!

0

16

Gravely 014640

ASSEMBLY, BEARING 1.00X1.98X1.243
(Superseded to 05419300)

$104.99

$

Usually ships in 4-12 days

0

17

Gravely 014636

CASTING, GEAR BOX
(Superseded to 08700400)

$298.99

$

Usually ships in 4-12 days

0

18

Gravely 014644

ASSEMBLY, BEARING .75X1.781X1.499
(Superseded to 05419400)

$105.99

$

Usually ships in 4-12 days

0

19

Gravely 011831

GEAR, BEVEL
(Superseded to 08585800)

$266.99

$

Usually ships in 4-12 days

0

20

Gravely 417098

WASHER, FLAT .531X1.000X.063
(Superseded to 06401115)

$0.99

$

In Stock, Qty 7

0

21

Gravely 011835

NUT, LOCK 1/2-20 LIGHT THIN
(Superseded to 06544000)

$5.99

$

In Stock, only 1 left!

0

22

Gravely 180016

BOLT, HEX 1/4-20X.50
(Superseded to 05901705)

$0.99

$

In Stock, Qty 5

0

23

Gravely 120380

WASHER, LOCK 1/4 REG.
(Superseded to 06401009)

$0.99

$

In Stock, Qty 16

0

24

Gravely 010982

COVER, GEAR HOUSING
(Superseded to 08860500)

$43.99

$

Usually ships in 4-12 days

0

25

Gravely 011231

GASKET, GEAR HOUSING
(Superseded to 08570100)

$5.99

$

Usually ships in 4-12 days

0

26

Gravely 011220

GEAR, BEVEL
(Superseded to 08790300)

$240.99

$

Usually ships in 4-12 days

0

27

Gravely 015369

WASHER, .563X1.50X.180
(Superseded to 06441000)

$2.99

$

In Stock, Qty 15

0

28

Gravely 013624

BOLT, HEX 1/2-13X1 NYLON INSERT
(Superseded to 05941200)

$

$

Not available

29

Gravely 019321

SEAL, OIL 1.000X1.690X.250
(Superseded to 05615500)

$23.99

$

Usually ships in 4-12 days

0

30

Gravely 019268

SHAFT
(Superseded to 08508800)

$135.99

$

Usually ships in 4-12 days

0

31

Gravely 011967

ASSEMBLY, DOUBLE JOINT
(Superseded to 08587200)

$452.99

$

Usually ships in 4-12 days

0

32

Gravely 013518

U-JOINT, FEMALE END
(Superseded to 08700200)

$

$

Not available

33

Gravely 019871

JOINT, U MALE
(Superseded to 08716700)

$

$

Not available

34

Gravely 419454

NUT, LOCK 1/4-20
(Superseded to 06500832)

$4.99

$

In Stock, only 2 left!

0

35

Gravely 180044

BOLT, HEX 1/4-20X2.00
(Superseded to 05901740)

$2.49

$

In Stock, only 2 left!

0

36

Gravely 411027

FITTING, LUBE 1/4-28
(Superseded to 07012600)

$

$

Not available
