22145 - Toro 21" ProLine Recycler Walk-Behind Mower (SN: 069000001 - 069999999) (1996) ENGINE GTS 150 Parts Diagram

21" ProLine Recycler Walk-Behind Mower

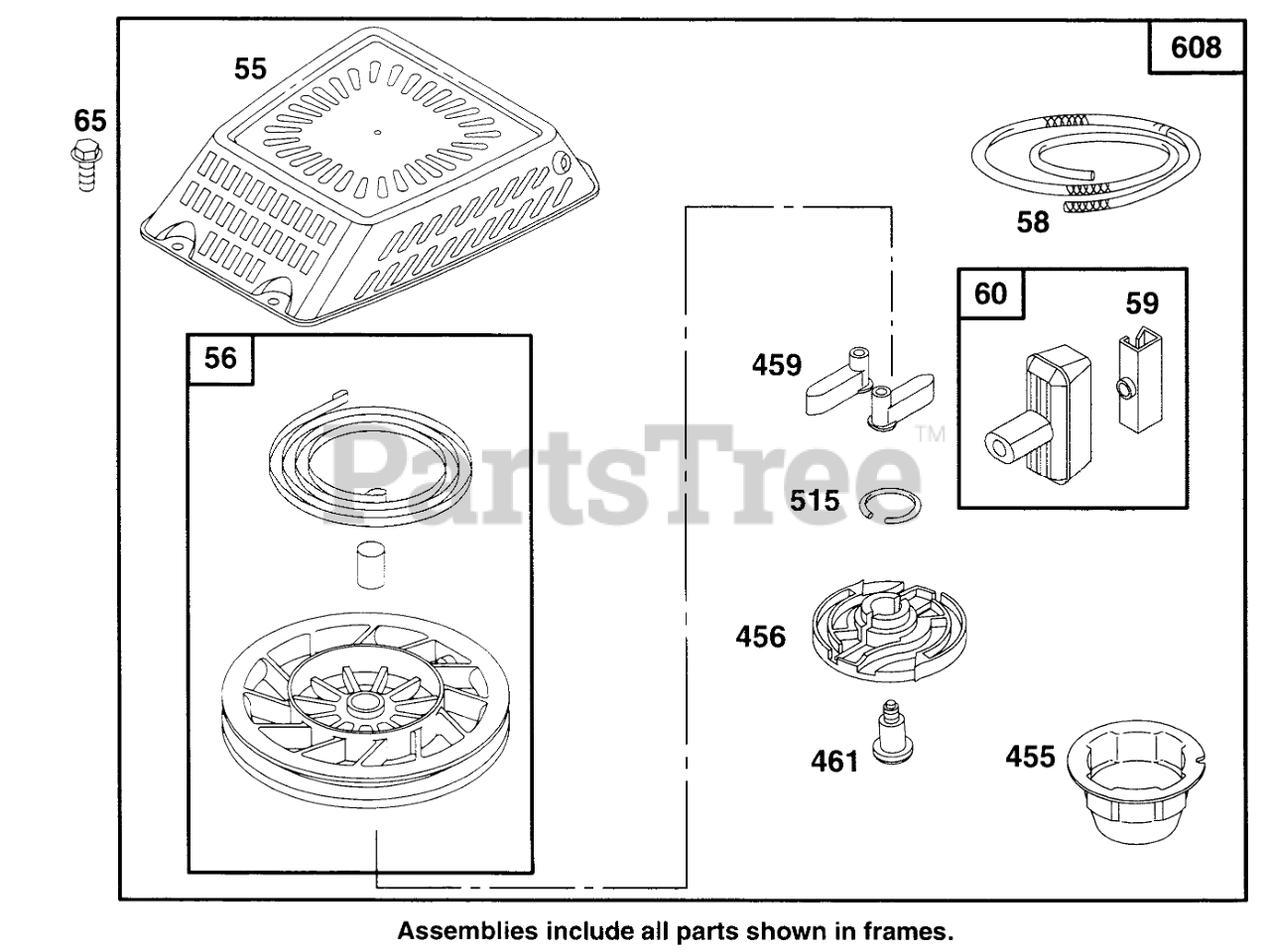

ENGINE GTS 150 Parts Diagram

  • Title

55

Toro 94-1656

HOUSING - REWIND STARTER

$

$

Not available

56

Toro 94-1657

PULLEY-STARTER, REWIND

$53.99

$

Usually ships in 3-6 days

0

58

Toro 94-1658

Rope-Starter (Cut To Suit)
(Superseded to 77-8480)

$

$

Not available

59

Toro 77-7210

INSERT-HANDLE, REWIND

$10.99

$

Usually ships in 3-6 days

0

60

Toro 77-8520

HANDLE-STARTER, REWIND

$

$

Not available

65

Toro 77-8300

SCREW - HEX HEAD

$

$

Not available

455

Toro 94-1653

CUP - STARTER

$17.99

$

Usually ships in 3-6 days

0

456

Toro 94-1659

RETAINER-STARTER, REWIND

$7.49

$

Usually ships in 3-6 days

0

459

Toro 94-1654

PAWL-STARTER

$7.49

$

Usually ships in 3-6 days

0

461

Toro 94-1660

SCREW-SHOULDER

$

$

Not available

515

Toro 94-1655

SPRING-TORSION

$

$

Not available

608

Toro 94-1661

ASM - REWIND STARTER

$

$

Not available
