2215 - Weed Eater String Trimmer CUTTING HEAD ASSEMBLY Parts Diagram

String Trimmer

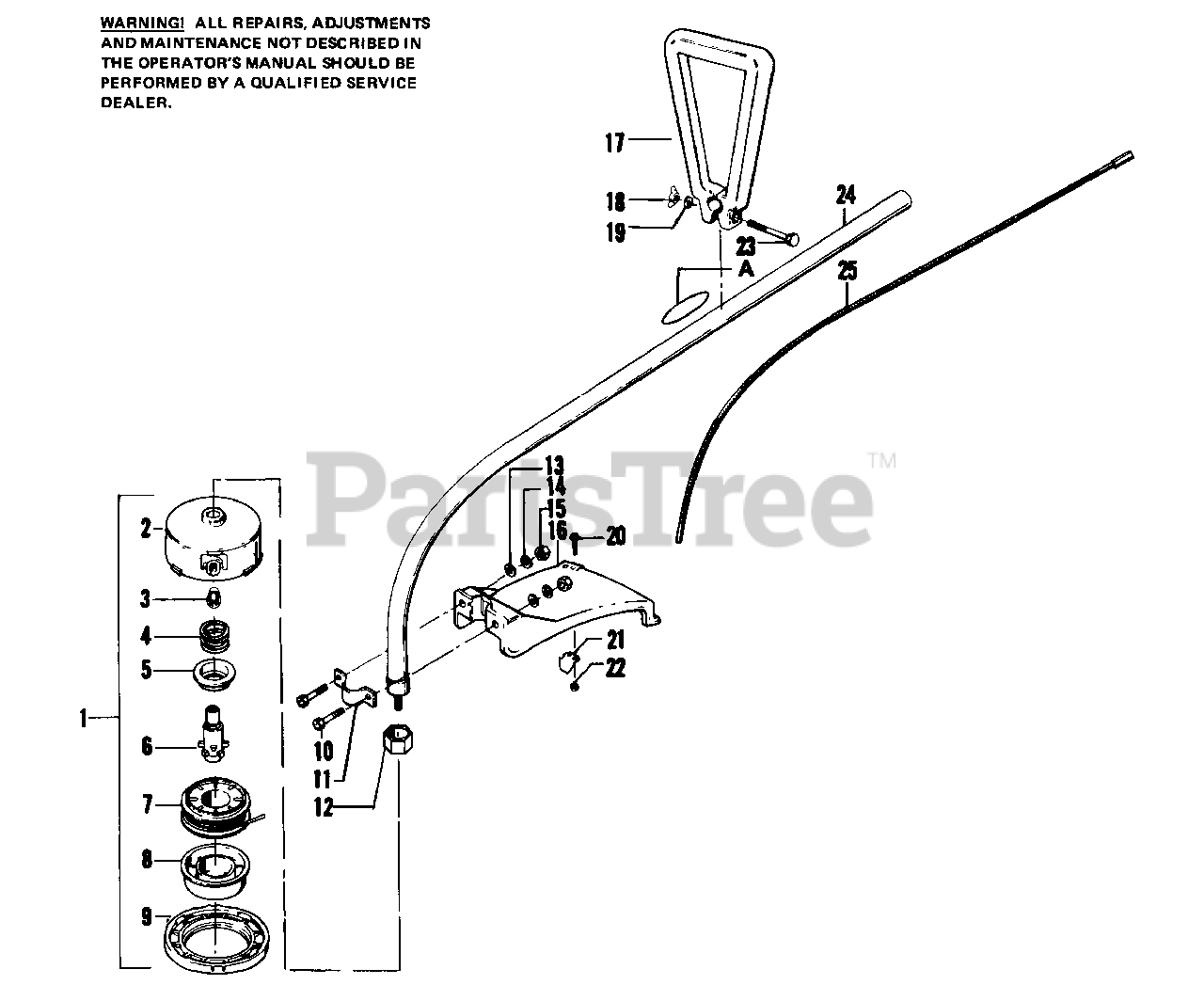

CUTTING HEAD ASSEMBLY Parts Diagram

  • Title

1

Poulan 952701574

Cutting Head Ass'y (Inc. # 2 - 9)
(Superseded to 952711547)

$

$

Not available

2

Poulan 530093896

Hub w/ Line Saver
(Superseded to 530071295)

$21.99

$

In Stock, only 1 left!

0

3

Poulan 530093898

Line Saver

$4.99

$

Usually ships in 3-10 days

0

4

Poulan 530092067

Spring
(Superseded to 530340007)

$3.99

$

Usually ships in 3-10 days

0

5

Poulan 530092068

Adaptor - Spring
(Superseded to 530328929)

$

$

Not available

6

Poulan 530093897

Drive Gear

$9.99

$

Usually ships in 3-10 days

0

7

Poulan 952701523

Spool w/Line

$

$

Not available

8

Poulan 530093387

Release Button
(Superseded to 530401183)

$

$

Not available

9

Poulan 530092133

Cover

$

$

Not available

10

Poulan 530625567

Bolt - Shield

$

$

Not available

11

Poulan 530093653

Bracket - Shield (1/4-20 x 1-3/4)

$3.99

$

In Stock, only 1 left!

0

12

Poulan 530093716

Dust Cup

$

$

Not available

13

Poulan 530015209

Washer - Flat

$2.49

$

Usually ships in 3-10 days

0

14

Poulan 530001642

Washer - Lock 1/4

$3.99

$

Usually ships in 3-10 days

0

15

Poulan 530015515

Nut - Shield 1/4-20

$4.99

$

In Stock, only 1 left!

0

16

Poulan 530093583

Shield

$

$

Not available

Poulan 530093655

Shield Ass'y (Inc. #16, 20, 21 & 22)

$

$

Not available

17

Poulan 530091412

Assist Handle

$

$

Not available

18

Poulan 530091373

Wing Nut - 1/4-20

$4.99

$

In Stock, only 1 left!

0

19

Poulan 530092062

Washer - 1/4 Flat

$3.99

$

Usually ships in 3-10 days

0

20

Poulan 530015337

Screw - Line Limiter (10-24x1)

$3.99

$

Usually ships in 3-10 days

0

21

Poulan 530093853

Limiter - Line

$

$

Not available

22

Poulan 530015064

Nut - Line Limiter

$

$

Not available

23

Poulan 530091372

Hex Bolt - 1/4-20 x 2-1/4

$

$

Not available

24

Poulan 530093902

Drive Shaft Ass'y (Inc. # 12)

$

$

Not available

25

Poulan 530093575

Flexible Shaft Ass'y

$

$

Not available

Poulan 530066271

Operator's Manual

$

$

Not available

A

Poulan 530026347

Decal - Attachment Warning

$

$

Not available
