2215 - Weed Eater String Trimmer ENGINE BLOCK, & SHROUDS Parts Diagram

String Trimmer

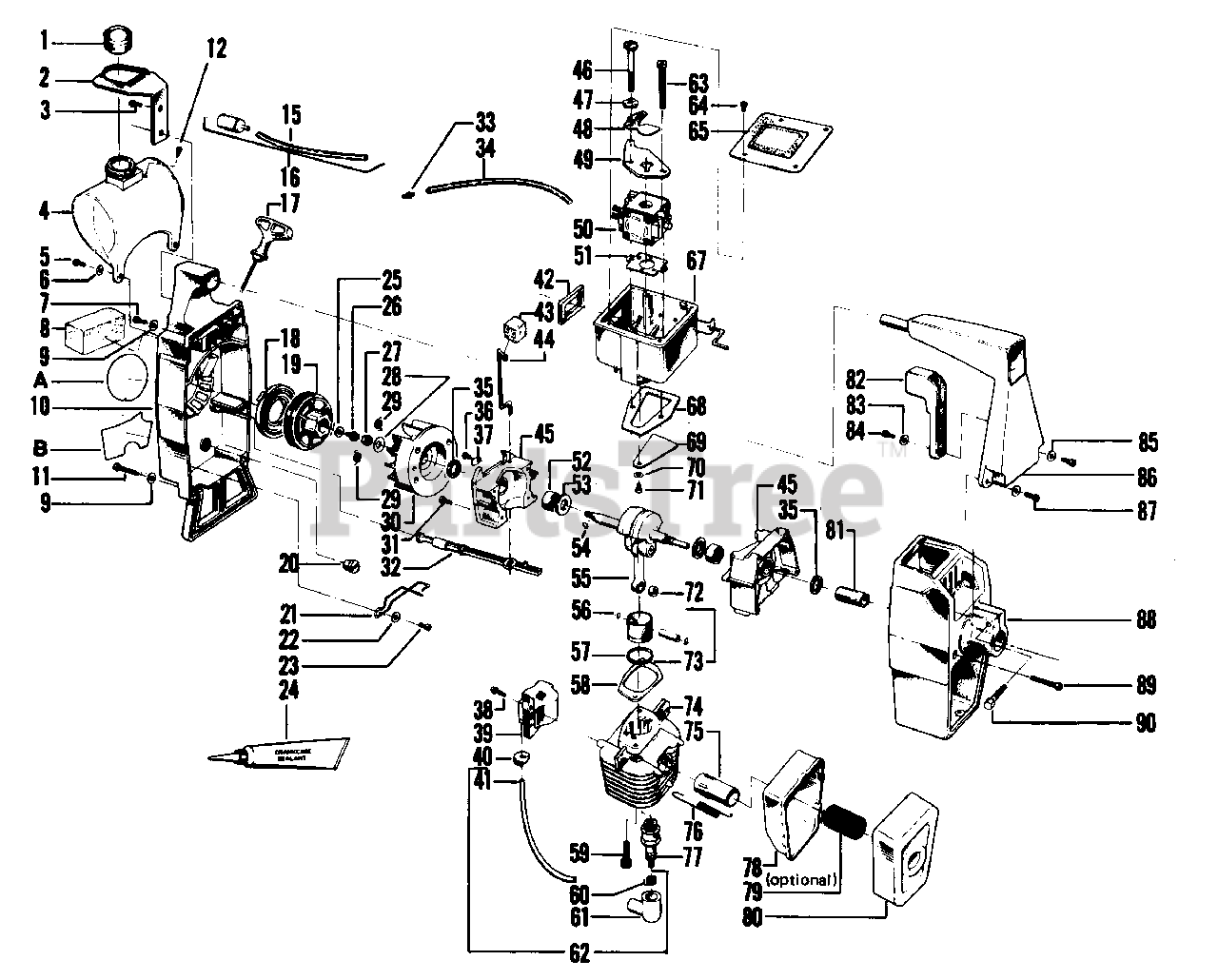

ENGINE BLOCK, & SHROUDS Parts Diagram

  • Title

1

Poulan 701567

Fuel Cap Assembly
(Superseded to 917701567)

$3.99

$

Usually ships in 3-10 days

0

2

Poulan 530025377

Bracket - Fuel Tank

$

$

Not available

3

Poulan 530092243

Screw - Bracket/Handle (1/4 - 10 x 1-1/8)
(Superseded to 530016107)

$3.99

$

In Stock, Qty 11

0

4

Poulan 530025706

Fuel Tank (Inc. # 12)

$

$

Not available

5

Poulan 530015509

Screw - Fuel Tank/Fan Housing (10 - 1)

$3.99

$

In Stock, only 2 left!

0

Poulan 530010522

Fuel Tank Assembly (Inc. #1, 4, 12, & 16)

$

$

Not available

6

Poulan 530015158

Washer - Fuel Tank/Fan Housing
(Superseded to 530015123)

$4.99

$

In Stock, only 4 left!

0

7

Poulan 530015168

Screw - Fan Hsg. Top #10 - 24 x 5/8 Fil.

$

$

Not available

8

Poulan 952701568

Air Filter

$

$

Not available

9

Poulan 530015274

Washer - Flat - Fan Housing

$0.99

$

Usually ships in 3-10 days

0

10

Poulan 534010701

ARMATURE ASSY.1.0"STK 10 PARAM

$34.99

$

Usually ships in 3-10 days

0

Poulan 530010701

Fan Housing Ass'y

$

$

Not available

11

Poulan 530015305

Screw - Fan Housing - Bottom - #10 - 24 x 1-3/16 Fil.

$1.99

$

Usually ships in 3-10 days

0

12

Poulan 530026119

Check Valve - Duck Bill

$4.49

$

In Stock, Qty 18

0

15

Poulan 530021045

Line - Fuel Pick-up

$

$

Not available

16

Poulan 530010739

Fuel Line & Filter Assembly (Inc. # 15)

$

$

Not available

17

Poulan 530026112

Rope & Handle - Starter

$

$

Not available

18

Poulan 530042067

Starter - Recoil Spring
(Superseded to 545008009)

$8.49

$

Usually ships in 3-10 days

0

19

Poulan 530026048

Starter - Pulley

$

$

Not available

20

Poulan 530026679

Button - Kill Switch

$

$

Not available

21

Spring - Kill Switch - See Service Ref. 1

$

$

Not available

22

Poulan 530015382

Washer - Kill Switch

$

$

Not available

23

Poulan 530015407

Screw - Kill Switch (8 x 3/8)

$

$

Not available

24

Poulan 530030054

Crankcase Sealant - 3 oz. tube (Optional)

$

$

Not available

25

Poulan 530015123

Washer - Starter Pulley

$4.99

$

In Stock, only 4 left!

0

26

Poulan 530015479

Screw - Starter Pulley (#10 - 3/4 - Hex Head)
(Superseded to 530071620)

$34.99

$

In Stock, Qty 13

0

27

Poulan 530626605

Nut - Flywheel (5/16 x 24)

$3.99

$

Usually ships in 3-10 days

0

28

Poulan 530015127

Washer - Flywheel

$6.49

$

Usually ships in 3-10 days

0

29

Poulan 530042059

Spring - Starter Dog
(Superseded to 530023817)

$6.49

$

In Stock, Qty 5

0

30

Poulan 530039114

Flywheel Ass'y (Inc. #28)

$

$

Not available

31

Poulan 530015168

Screw - Crankcase (# 10 - 24 x 5/8 Fil.)

$

$

Not available

32

Poulan 530024303

Knob - Choke

$

$

Not available

33

Poulan 530025472

Fitting - Fuel Line

$3.99

$

In Stock, only 2 left!

0

34

Poulan 530021044

Fuel Line - Carburetor

$

$

Not available

35

Poulan 530019059

Seal - Crankshaft

$

$

Not available

36

Poulan 530015004

Screw - Clamp # 8 - 32 x 5/16 Pan.

$3.99

$

Usually ships in 3-10 days

0

37

Poulan 530024651

Clamp - Choke Wire

$

$

Not available

38

Poulan 530015128

Screw - Ignition Module (8 - 32 x 3/4 - Sems)
(Superseded to 530015816)

$3.99

$

Usually ships in 3-10 days

0

39

Poulan 530069181

Kit - Ignition Module (Inc. 21)

$

$

Not available

40

Poulan 530024435

Grommet - Plug Wire

$3.99

$

Usually ships in 3-10 days

0

41

Poulan 530039082

Lead Wire - High Tension

$

$

Not available

42

Poulan 530019105

Seal - Carburetor Case

$

$

Not available

43

Poulan 530023373

Boot - Choke Wire

$

$

Not available

44

Poulan 530026236

Wire - Choke

$2.49

$

Usually ships in 3-10 days

0

45

Poulan 530010316

Crankcase Ass'y (Inc. #35 & 52)

$

$

Not available

46

Poulan 530015404

Screw - Carburetor (Shoulder #10 - 24)

$3.99

$

Usually ships in 3-10 days

0

47

Poulan 530015254

Wave Washer

$3.99

$

In Stock, only 2 left!

0

48

Poulan 530024558

Shutter - Choke

$3.99

$

Usually ships in 3-10 days

0

49

Poulan 530026237

Plate - Guide, Choke Wire

$

$

Not available

50

Poulan 530035183

Carburetor (WA-149)

$

$

Not available

51

Poulan 530019115

Gasket - Carburetor

$

$

Not available

52

Poulan 530032058

Bearing - Crankshaft
(Superseded to 530032029)

$10.99

$

In Stock, only 4 left!

0

53

Poulan 530015351

Thrust Washer - Crankshaft

$6.49

$

Usually ships in 3-10 days

0

54

Poulan 530015126

Key - Flywheel

$3.99

$

Usually ships in 3-10 days

0

55

Poulan 530024494

Crankshaft & Rod Assembly

$

$

Not available

56

Poulan 530015162

Retainer - Wrist Pin

$6.49

$

Usually ships in 3-10 days

0

57

Poulan 530024302

Piston Ring

$

$

Not available

58

Poulan 530019111

Gasket - Cylinder
(Superseded to 530069219)

$

$

Not available

59

Poulan 530015239

Screw - Cylinder (1/4 - 20 x 3/4 Socket Head)

$2.49

$

Usually ships in 3-10 days

0

60

Poulan 530003933

Connector - Spark Plug
(Superseded to 507475326)

$

$

Not available

61

Poulan 530003934

Boot - Spark Plug

$

$

Not available

62

Poulan 502039103

BEVEL GEAR COMPLETE
(Superseded to 502271102)

$364.99

$

Usually ships in 3-10 days

0

Poulan 530039103

High Tension Lead Ass'y (Inc. #41,60,61)

$

$

Not available

63

Poulan 530015379

Screw - Carburetor (#10 - 24 Fil.)

$3.99

$

Usually ships in 3-10 days

0

64

Poulan 530015235

Screw - Carburetor Cover (8 - 18 x 9/16)

$

$

Not available

65

Poulan 530026029

Cover - Carburetor Case

$

$

Not available

67

Poulan 530010453

Carburetor Case Assembly

$

$

Not available

68

Poulan 530019108

Gasket - Carburetor Case/Crankcase

$4.99

$

Usually ships in 3-10 days

0

69

Poulan 530024438

Reed Valve

$

$

Not available

70

Poulan 530023367

Washer - Reed Valve

$

$

Not available

71

Poulan 530015241

Screw - Reed Valve (6 - 19 x 5/16)

$3.99

$

Usually ships in 3-10 days

0

72

Poulan 530032057

Bearing - Wrist Pin

$

$

Not available

73

Poulan 530022198

Piston Ass'y (Inc. # 56, 57 and Pin)

$

$

Not available

74

Poulan 530012070

Cylinder

$

$

Not available

75

Poulan 530024363

Diffuser - Muffler

$

$

Not available

76

Poulan 530024903

Spring - Muffler Attachment
(Superseded to 530036409)

$

$

Not available

77

Poulan 530030077

Spark Plug (CJ-14)

$

$

Not available

78

Poulan 530024362

Body - Muffler

$

$

Not available

79

Poulan 530069172

Screen - Spark Arrestor Kit (optional)

$

$

Not available

80

Poulan 530024361

Cover - Muffler

$

$

Not available

81

Poulan 530093694

Coupling - Hex Drive

$

$

Not available

82

Poulan 530025342

Trigger - Throttle

$

$

Not available

83

Poulan 530015382

Washer - Throttle

$

$

Not available

84

Poulan 530015407

Screw - Throttle (8 - 16 x 3/8)

$

$

Not available

85

Poulan 530015274

Washer - Flat - Shroud

$0.99

$

Usually ships in 3-10 days

0

86

Poulan 530025704

Handle

$

$

Not available

87

Poulan 530015163

Screw - Shroud (Top) - (10 - 24 x 7/8)

$2.49

$

Usually ships in 3-10 days

0

88

Poulan 530011778

Shroud

$

$

Not available

89

Poulan 530015376

Screw - Shroud (Bottom) - #10 - 24 x 1-1/2 Fil.

$

$

Not available

90

Poulan 530625509

Bolt, Pinch Clamp (1/4 - 20 x 1 - Hex Cap)

$2.49

$

Usually ships in 3-10 days

0

A

Poulan 530026345

Decal - Starting Instructions

$

$

Not available

B

Poulan 530026346

Decal - Choke / OFF

$

$

Not available

Poulan 530025709

Decal - Shroud (Right) - Not Shown

$

$

Not available

Poulan 530025711

Decal - Shroud (Left) - Not Shown

$

$

Not available
