22150 - Toro 21" ProLine Recycler Walk-Behind Mower (SN: 069000001 - 069999999) (1996) ENGINE GTS 150 Parts Diagram

21" ProLine Recycler Walk-Behind Mower

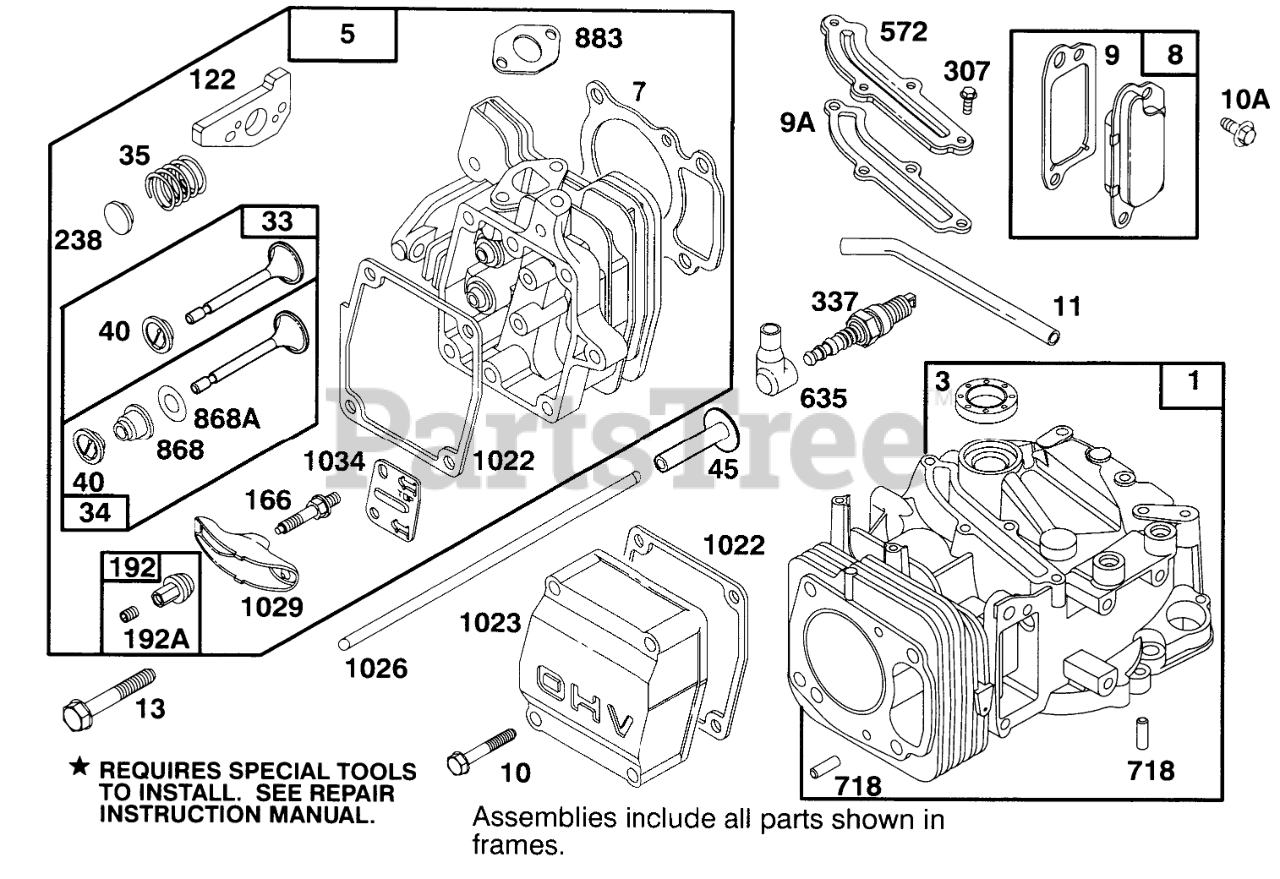

ENGINE GTS 150 Parts Diagram

  • Title

1

Toro 77-7590

CYLINDER ASSEMBLY

$899.99

$

Usually ships in 3-6 days

0

3

Toro 77-9060

SEAL - OIL

Note: Included in Gasket Set-Part No. 77-8900

$

$

Not available

5

Toro 77-7730

CYLINDER HEAD

$

$

Not available

7

Toro 77-7740

CYLINDER HEAD GASKET

Note: Included in Gasket Set-Part No. 77-8900

$34.99

$

Usually ships in 3-6 days

0

8

Toro 77-9260

BREATHER ASM

$

$

Not available

9

Toro 77-9250

BREATHER GASKET
(Superseded to 99-0913)

Note: Included in Gasket Set-Part No. 77-8900

$5.49

$

Usually ships in 3-6 days

0

9A

Toro 77-7410

GASKET-BREATHER
(Superseded to 99-0923)

Note: Included in Gasket Set-Part No. 77-8900

$15.99

$

Usually ships in 3-6 days

0

10

Toro 77-7360

HEX HEAD SCREW

$

$

Not available

10A

Toro 77-9200

HEX HEAD SCREW

$

$

Not available

11

Toro 77-9410

TUBE - BREATHER

$

$

Not available

13

Toro 77-7630

CYLINDER HEAD SCREW

$

$

Not available

33

Toro 77-7860

EXHAUST VALVE

$

$

Not available

34

Toro 77-7880

INTAKE VALVE

$

$

Not available

35

Toro 77-7810

VALVE SPRING

$

$

Not available

40

Toro 77-7870

SPRING RETAINER

$

$

Not available

45

Toro 77-7610

VALVE TAPPET

$

$

Not available

122

Toro 77-7820

ADAPTER ASSEMBLY

Note: Included in Carburetor Overhaul Kit-Part No 77-9580

$36.99

$

Usually ships in 3-6 days

0

166

Toro 77-7780

ROCKER ARM STUD

$

$

Not available

192

Toro 77-7910

Ball & Screw-Rocker Arm (Incl. Ref. #192A)

$

$

Not available

192A

Screw-Set

$

$

Not available

238

Toro 77-7800

VALVE CAP

$

$

Not available

307

Toro 77-7420

SCREW - SEM

$

$

Not available

337

Toro 77-7330

PLUG-SPARK

$3.99

$

Usually ships in 3-6 days

0

572

Toro 77-7400

BAFFLE - CYCLINDER
(Superseded to 99-0922)

$

$

Not available

635

Toro 77-7340

SPARK PLUG ELBOW

$

$

Not available

718

Toro 77-7600

DOWEL - SLEEVE

$

$

Not available

868

Toro 77-7890

SealAssy-Valve
(Superseded to 94-1669)

Note: Included in Gasket Set-Part No. 77-8900

$

$

Not available

868A

Toro 77-7900

Seal-Valve
(Superseded to 94-1669)

Note: Included in Gasket Set-Part No. 77-8900

$

$

Not available

883

Toro 77-7760

EXHAUST GASKET

Note: Included in Gasket Set-Part No. 77-8900

$

$

Not available

1022

Toro 77-7320

ROCKER COVER GASKET

Note: Included in Gasket Set-Part No. 77-8900

$24.99

$

In Stock, only 1 left!

0

1023

Toro 77-9320

COVER - VALVE

$

$

Not available

1026

Toro 77-7620

PUSH ROD

$

$

Not available

1029

Toro 77-7790

ROCKER ARM

$37.99

$

In Stock, only 1 left!

0

1034

Toro 77-7770

PUSH ROD GUIDE

$

$

Not available
