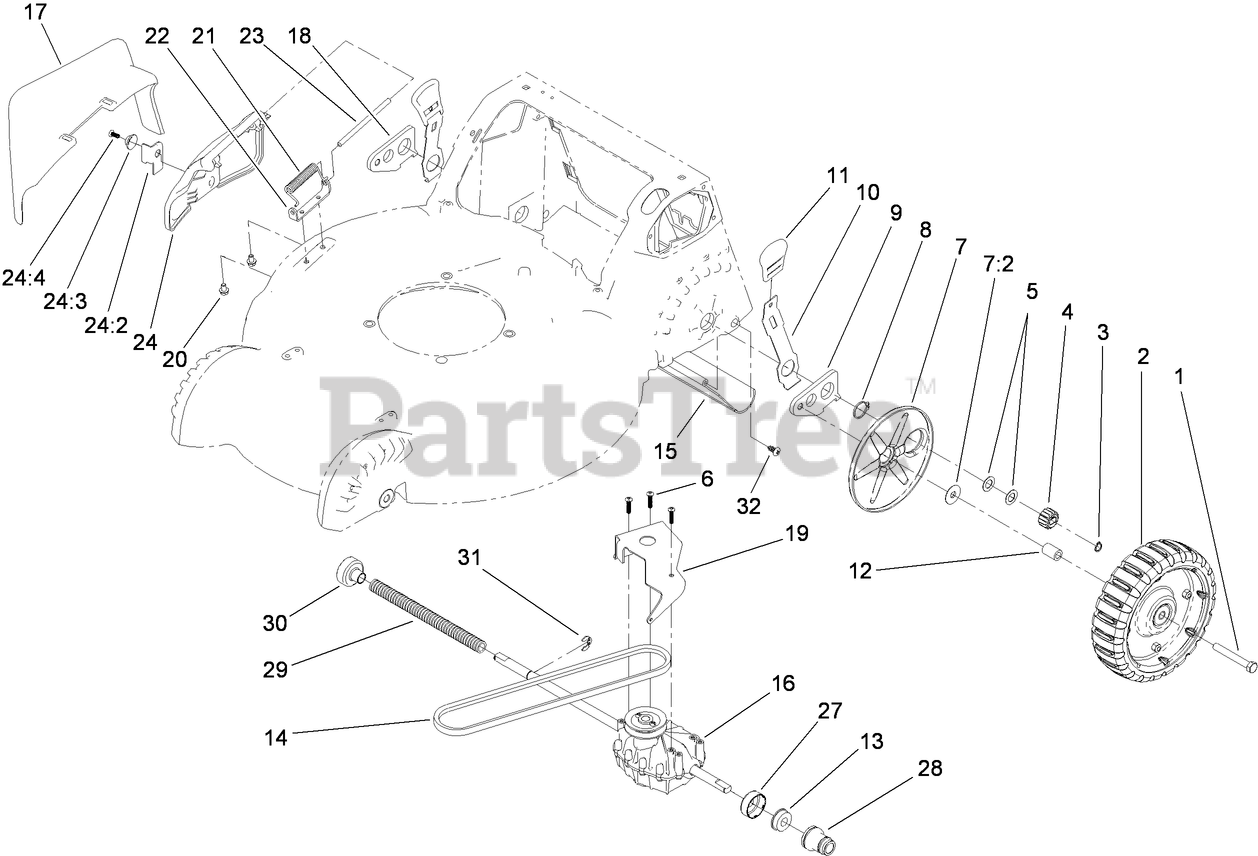

22156 TE - Toro 53cm Walk-Behind Mower (SN: 310001001 - 310999999) (2010) > Parts Diagrams (7) > DISHARGE DOOR AND REAR WHEEL ASSEMBLY

  • Title
323-13

1

SCREW-HH

Part# 323-13

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.82

117-5253

2

8-INCH WHEEL ASM

Part# 117-5253

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $58.13

32151-61

3

RING-RETAINING

Part# 32151-61

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.05

110-9417

4

GEAR-PINION, 15T

Part# 110-9417 (Superseded to 131-5399)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.37

36-4780

5

WASHER-PLAIN

Part# 36-4780

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $5.58

108-7476

6

SCREW-PLASTITE

Part# 108-7476

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.63

110-1792

7

WHEEL COVER ASM

Part# 110-1792 (Superseded to 127-6840)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $4.46

614426

7:2

WASHER-STEPPED

Part# 614426

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.11

32151-36

8

RING-RETAINING

Part# 32151-36

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.53

108-9344

9

ARM-REAR PIVOT, LH

Part# 108-9344

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $8.27

110-9445

10

ARM-SPRING, REAR

Part# 110-9445

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $8.03

110-0549

11

KNOB-HOC

Part# 110-0549

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.11

114-2754

12

SPACER

Part# 114-2754

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $7.36

104-8699

13

BEARING-BALL

Part# 104-8699

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.34

110-9429

14

V-BELT

Part# 110-9429

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $12.29

112-8768

15

SHIELD-TRAILING

Part# 112-8768 (Superseded to 120-7010)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $26.75

114-2819

16

TRANSMISSION

Part# 114-2819

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $108.13

105-3028

17

CHUTE-DISCHARGE, SIDE

Part# 105-3028

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $8.93

108-9343

18

ARM-REAR PIVOT, RH

Part# 108-9343

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $8.27

114-7977-03

19

BRACKET-TRANSMISSION

Part# 114-7977-03

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $9.05

99-8445

20

SCREW-HWH

Part# 99-8445

OEM Warranty Repair Part for Toro

Not available

99-5293

21

SPRING-TORSION

Part# 99-5293

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $6.70

112-6416

22

BRACKET-COVER

Part# 112-6416

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.24

99-5291

23

ROD-COVER

Part# 99-5291 (Superseded to 136-8672)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.04

106-8376

24

DISCHARGE DOOR ASM

Part# 106-8376

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $9.90

107-0795

24:2

LATCH-DOOR

Part# 107-0795

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.18

107-7456

24:3

CAP-DOOR

Part# 107-7456 (Superseded to 138-3242)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.16

107-7461

24:4

SCREW-PLASTITE

Part# 107-7461

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.11

117-5268

27

Cover-Bearing

Part# 117-5268

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $6.46

110-9422

28

RETAINER-BEARING

Part# 110-9422

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $10.96

117-5260

29

Cover-Shaft, Drive

Part# 117-5260

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.34

114-2755

30

CAP-BEARING

Part# 114-2755

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.19

65-2720

31

RING-CLIP, LOCKING

Part# 65-2720

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.00

117-1092

32

SCREW-PTH

Part# 117-1092

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.11
