22156 TE - Toro 53cm Walk-Behind Mower (SN: 310001001 - 310999999) (2010)

53cm Walk-Behind Mower

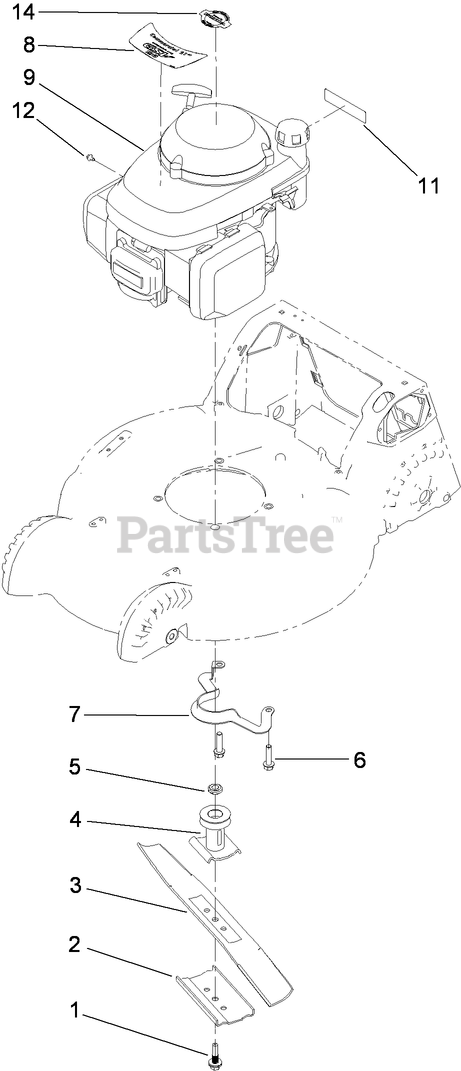

22156 TE - Toro 53cm Walk-Behind Mower (SN: 310001001 - 310999999) (2010) > Parts Diagrams (7) > ENGINE AND BLADE ASSEMBLY

  • Title
117-5270

1

BOLT-BLADE

Part# 117-5270

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.34

108-3766-03

2

SUPPORT-BLADE

Part# 108-3766-03

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $8.23

108-3759-03

3

BLADE-BAGGING

Part# 108-3759-03

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $20.11

114-2774

4

DRIVER-BLADE

Part# 114-2774

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $22.85

106-3999

5

Spacer-Driver

Part# 106-3999

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.26

32144-102

6

SCREW-HWH

Part# 32144-102

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.24

108-8110-03

7

GUIDE-BELT

Part# 108-8110-03

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $11.27

117-5245

8

DECAL-ENGINE

Part# 117-5245

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $7.83

9

ENGINE-HONDA, GSV190A-A3TE

Part#

Note: Not serviced separately

Not available

9

ENGINE-HONDA, GSV190A-A3TE

Part#

Note: Obtain parts from www.honda-engines.com

Not available

117-2718

11

DECAL-ARRESTER, SPARK

Part# 117-2718

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $5.52

98-1394

12

SCREW-HWH

Part# 98-1394

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.71

112-8793

14

DECAL-ENGINE

Part# 112-8793

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $9.62
