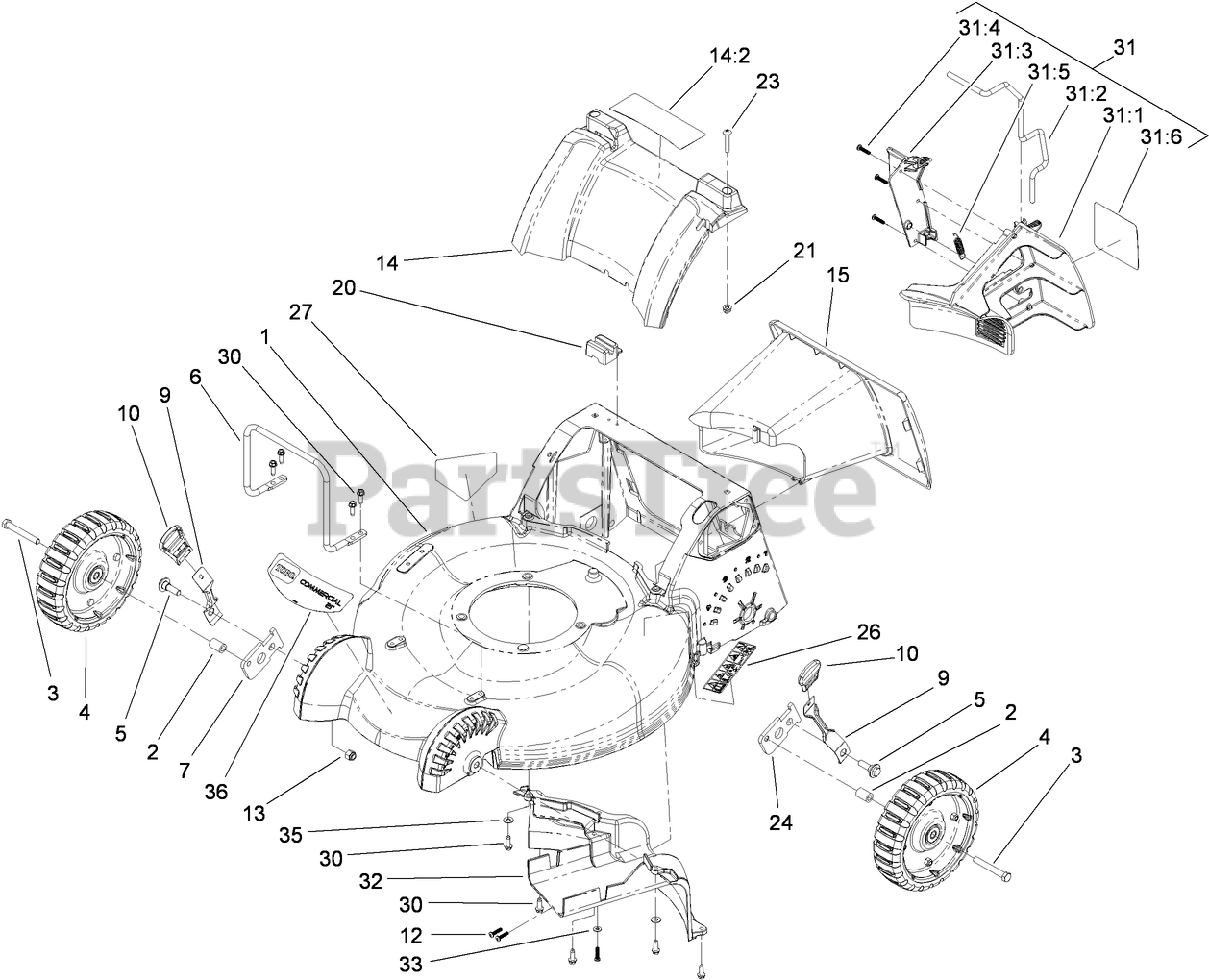

22156 TE - Toro 53cm Walk-Behind Mower (SN: 310001001 - 310999999) (2010) > Parts Diagrams (7) > HOUSING AND TUNNEL ASSEMBLY

  • Title
117-5296

1

HOUSING ASM

Part# 117-5296

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $169.63

114-2754

2

SPACER

Part# 114-2754

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $7.36

323-13

3

SCREW-HH

Part# 323-13

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.82

117-5252

4

8-INCH WHEEL ASM

Part# 117-5252

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $57.01

614672

5

SCREW-SHOULDER, HWH

Part# 614672

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.23

110-9475-03

6

GUARD-ENGINE

Part# 110-9475-03

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $19.35

110-9421

7

ARM-PIVOT, RH

Part# 110-9421

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $12.15

110-9434

9

ARM-SPRING, FRONT

Part# 110-9434

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $7.08

110-0549

10

KNOB-HOC

Part# 110-0549

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.11

108-7476

12

SCREW-PLASTITE

Part# 108-7476

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.63

3296-39

13

NUT-LOCK, NI

Part# 3296-39

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.05

115-3177

14

REAR COVER ASM

Part# 115-3177

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $32.95

114-2820

14:2

DECAL-WARNING

Part# 114-2820

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $4.43

110-9455

15

TUNNEL

Part# 110-9455

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $29.19

110-1786

20

MODULE-SWITCH

Part# 110-1786

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $42.18

94-1610

21

NUT-CLIP

Part# 94-1610

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.67

108-0965

23

SCREW-PTH

Part# 108-0965

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.89

110-9420

24

ARM-PIVOT, LH

Part# 110-9420

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $12.15

110-4978

26

DECAL-DANGER

Part# 110-4978

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $10.21

112-8760

27

DECAL-DANGER

Part# 112-8760

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $7.05

49-2040

30

SCREW-HWHTF

Part# 49-2040

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.48

110-9468

31

MULCH PLUG ASM

Part# 110-9468

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $42.61

110-9446

31:1

PLUG-MULCH, LH

Part# 110-9446

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $15.83

110-9448

31:2

LATCH-PLUG, MULCH

Part# 110-9448

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $11.65

110-9447

31:3

PLUG-MULCH, RH

Part# 110-9447

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $7.08

108-7476

31:4

SCREW-PLASTITE

Part# 108-7476

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.63

110-9458

31:5

SPRING-EXTENSION

Part# 110-9458

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.36

110-9457

31:6

DECAL-PLUG, MULCH

Part# 110-9457

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $5.91

110-9413

32

BAFFLE-REAR

Part# 110-9413

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $21.42

3256-14

33

WASHER-FLAT

Part# 3256-14

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.13

3256-22

35

WASHER-FLAT

Part# 3256-22

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.13

119-2339

36

DECAL-HOUSING, FRONT

Part# 119-2339

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $11.28
