22157 - Toro 53cm Recycler Walk-Behind Mower (SN: 089000001 - 089999999) (1998) REAR WHEEL & TIRE ASSEMBLY Parts Diagram

53cm Recycler Walk-Behind Mower

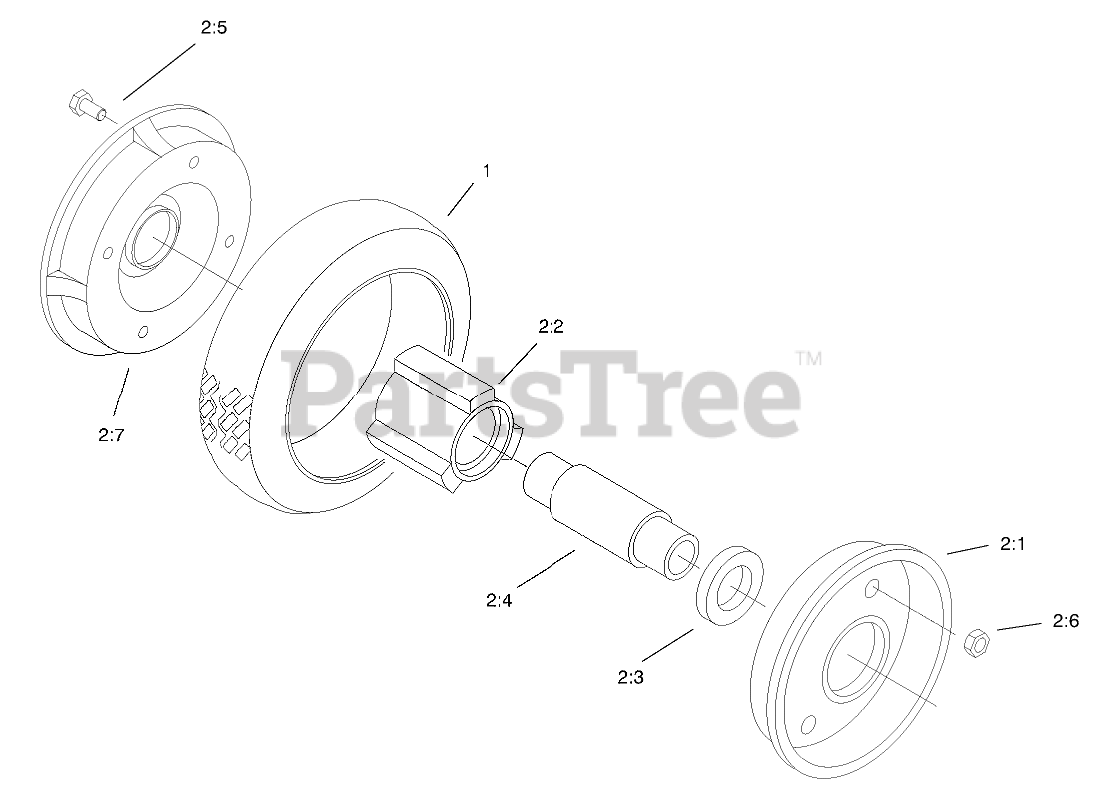

REAR WHEEL & TIRE ASSEMBLY Parts Diagram

  • Title

1

Toro 53-7740

TIRE

$37.99

$

In Stock, Qty 9

0

2:1

Toro 53-7780

Wheel-Half
(Superseded to 121-1365-06)

$18.99

$

In Stock, only 3 left!

0

2:2

Toro 52-2410

HUB-BEARING

$31.99

$

In Stock, Qty 14

0

2:3

Toro 52-2450

BEARING-WHEEL

$17.99

$

In Stock, Qty 20+

0

2:4

Toro 52-2440

SPACER-BEARING

$8.99

$

In Stock, Qty 5

0

2:5

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

2:6

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

2:7

Toro 92-4957

Wheel-Half
(Superseded to 121-1378-06)

$28.99

$

In Stock, Qty 10

0

2

ASM-Wheel and Tire

Note: Included in a service kit or in an assembly

$

$

Not available
