22164 TE (HD 53) - Toro Walk-Behind Mower (SN: 290000001 - 290999999) (2009) ELECTRIC EQUIPMENT ASSEMBLY KAWASAKI FJ180V-AS58 Parts Diagram

Walk-Behind Mower

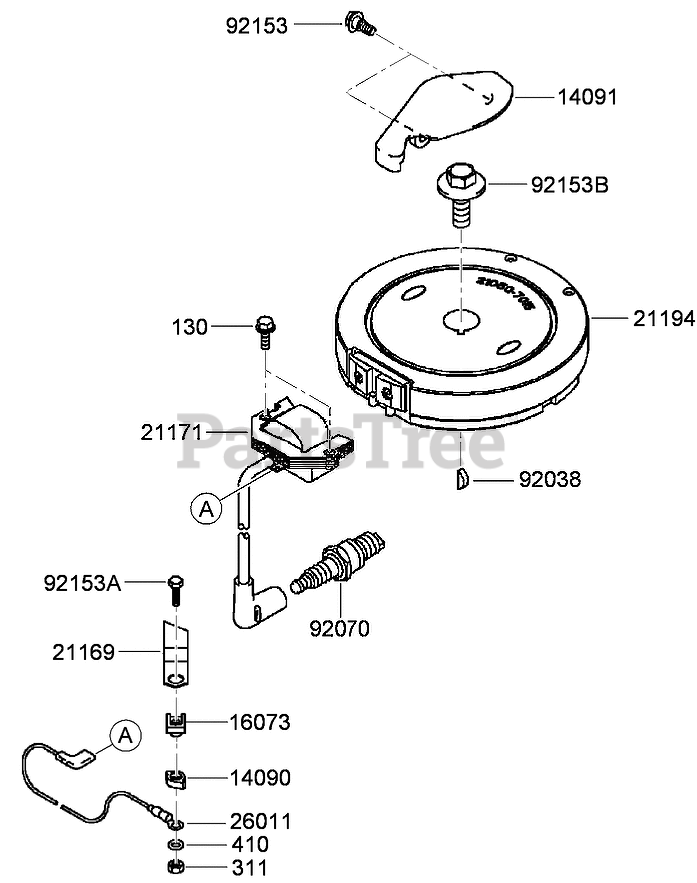

ELECTRIC EQUIPMENT ASSEMBLY KAWASAKI FJ180V-AS58 Parts Diagram

  • Title

130

Kawasaki 130AA0620

BOLT-FLANGED (6X20)
(Superseded to 130B0620)

Note: Obtain parts from www.kawpowerepc.com

$3.49

$

In Stock, only 2 left!

0

311

Kawasaki 311AA0400

NUT-HEX (4MM)
(Superseded to 311509-6152-00)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 10

0

410

Kawasaki 410AA0400

W-PLAIN-S (4MM)
(Superseded to 21025-002)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 9

0

14090

Kawasaki 14090-2108

COVER
(Superseded to 14024-2183)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, only 1 left!

0

14091

Kawasaki 14091-7036

COVER
(Superseded to 14091-7024)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

Usually ships in 2-5 days

0

16073

Kawasaki 16073-2192

INSULATOR
(Superseded to 16073-2124)

Note: Obtain parts from www.kawpowerepc.com

$1.49

$

In Stock, only 2 left!

0

21169

Kawasaki 21169-2071

TERMINAL

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 9

0

21171

Kawasaki 21171-7030

IGNITION COIL ASM
(Superseded to 21171-2267)

Note: Obtain parts from www.kawpowerepc.com

$108.99

$

In Stock, only 1 left!

0

21194

Kawasaki 21194-7024

FLYWHEEL
(Superseded to 21194-2355)

Note: Obtain parts from www.kawpowerepc.com

$202.99

$

Usually ships in 2-5 days

0

26011

Kawasaki 26011-7013

WIRE-LEAD

Note: Obtain parts from www.kawpowerepc.com

$2.99

$

In Stock, only 1 left!

0

92038

Kawasaki 92038-2077

Key

Note: Obtain parts from www.kawpowerepc.com

$2.99

$

In Stock, Qty 14

0

92070

Toro 92070-2088

SPARK PLUG, B P R 5E S (N G K) SOLID

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

92153

Kawasaki 92153-7007

Bolt

Note: Obtain parts from www.kawpowerepc.com

$4.49

$

Usually ships in 2-5 days

0

92153A

Kawasaki 92153-7012

BOLT (4X16)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 5

0

92153B

Kawasaki 92153-7030

BOLT (12X30)

Note: Obtain parts from www.kawpowerepc.com

$2.49

$

Usually ships in 2-5 days

0
