22167 - Toro 21" Heavy-Duty Recycler Walk-Behind Mower (SN: 270000001 - 270999999) (2007) ENGINE AND BLADE ASSEMBLY Parts Diagram

21" Heavy-Duty Recycler Walk-Behind Mower

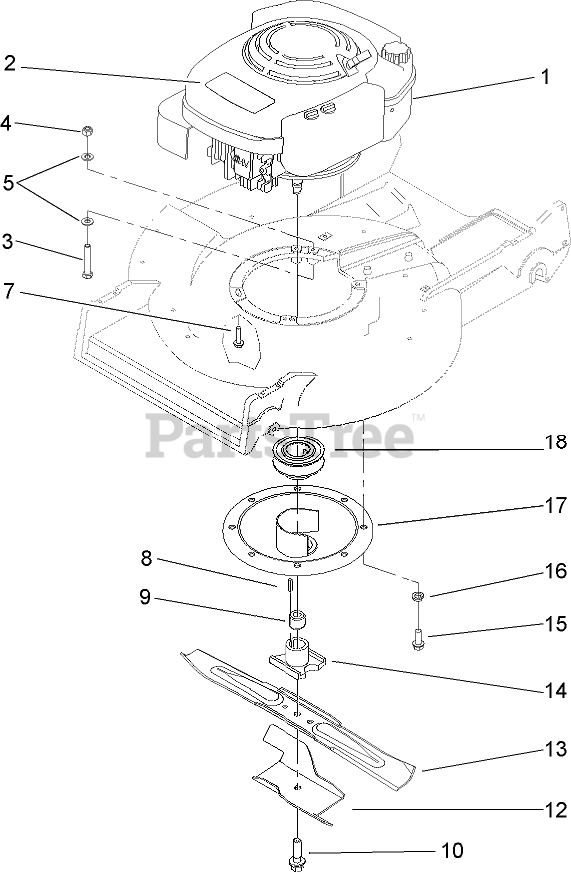

ENGINE AND BLADE ASSEMBLY Parts Diagram

  • Title

1

ENGINE-HONDA, GXV 160K1A1T

Note: Not serviced separately

$

$

Not available

2

Toro 110-0521

DECAL-ENGINE, HONDA

$

$

Not available

3

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

4

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

5

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

7

Toro 103-2678

SCREW-SHOULDER

$6.99

$

In Stock, Qty 6

0

8

Toro 5-1077

KEY-SQUARE

$7.49

$

In Stock, Qty 6

0

9

Toro 103-3795

Spacer-Retainer, Blade

$8.49

$

In Stock, only 3 left!

0

10

Toro 105-8579

BOLT-BLADE
(Superseded to 125-2466)

$3.99

$

In Stock, Qty 20+

0

12

Toro 92-1599-03

STIFFENER-BLADE

$91.99

$

Usually ships in 3-6 days

0

13

Toro 14-9419

Blade
(Superseded to 91-2256-03)

$34.99

$

In Stock, Qty 12

0

14

Toro 52-2170

RETAINER-BLADE
(Superseded to 52-2170-03)

$79.99

$

In Stock, only 4 left!

0

15

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

16

Toro 3254-6

WASHER-LOCK, INTERNAL

$0.99

$

Usually ships in 3-6 days

0

17

Toro 65-5860

PROTECTOR-CRANKSHAFT
(Superseded to 125-8370)

$111.99

$

Usually ships in 3-6 days

0

18

Toro 46-7910

PULLEY-DRIVER

$38.99

$

In Stock, only 2 left!

0
