22170 - Toro Recycler Walk-Behind Mower (SN: 220000001 - 220999999) (2002) ENGINE & BLADE ASSEMBLY Parts Diagram

Recycler Walk-Behind Mower

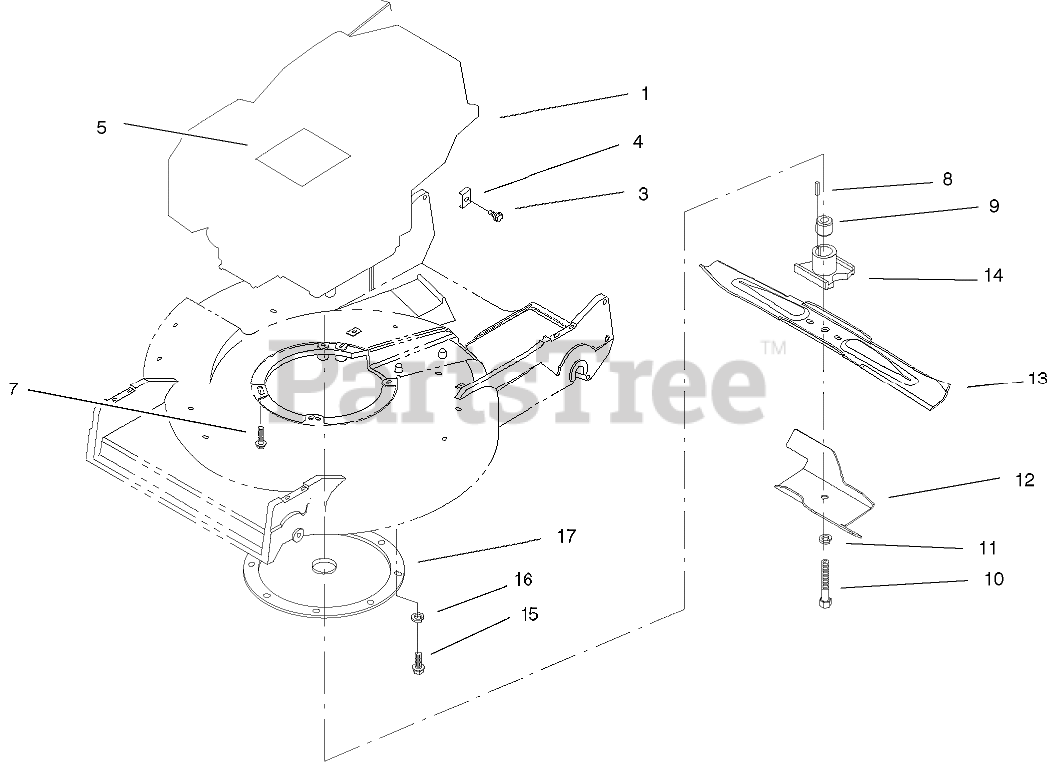

ENGINE & BLADE ASSEMBLY Parts Diagram

  • Title
1

Toro Part# 104-1331

Engine-4cyc Zs, Kawasaki
(Superseded to 100-6498)
Usually ships same day

Not available

$

$

3

Toro Part# 95-9853

BOLT (5X18)
Usually ships in 5 to 8 days

$

$1.00

0

Usually ships in 5 to 8 days

$

$2.74

0

5

Toro Part# 104-1335

Decal-Engine
Usually ships in 5 to 8 days

$

$4.94

0

7

Toro Part# 100-2835

SCREW-MOUNT, ENGINE
Usually ships in 5 to 8 days

$

$5.77

0

8

Toro Part# 27-8590

KEY-SQUARE
Usually ships in 5 to 8 days

$

$4.99

0

9

Toro Part# 99-6279

SPACER-BLADE RETAINER
Usually ships in 1 day

$

$10.31

0

10

Toro Part# 26-0670

SCREW-BLADE
Usually ships in 1 day

$

$4.08

0

11

Toro Part# 3253-22

WASHER-LOCK
Usually ships in 1 day

$

$1.88

0

12

Toro Part# 92-1599-03

STIFFENER-BLADE
Usually ships in 1 day

$

$62.60

0

13

Toro Part# 14-9419

Blade
(Superseded to 91-2256-03)
Usually ships in 1 day

$

$27.94

0

14

Toro Part# 99-6283

Retainer-Blade
(Superseded to 99-6283-03)
Usually ships in 5 to 8 days

$

$55.89

0

15

Toro Part# 32144-70

SCREW-HWHTF
Usually ships in 1 day

$

$1.81

0

16

Toro Part# 3254-6

WASHER-LOCK, INTERNAL
Usually ships in 1 day

$

$0.09

0

17

Toro Part# 48-2591

PROTECTOR-CRANKSHAFT
Usually ships in 5 to 8 days

$

$133.03

0
