22171 - Toro Recycler Walk-Behind Mower (SN: 099000001 - 099999999) (1999) Brake/cover Parts Diagram
Recycler Walk-Behind Mower

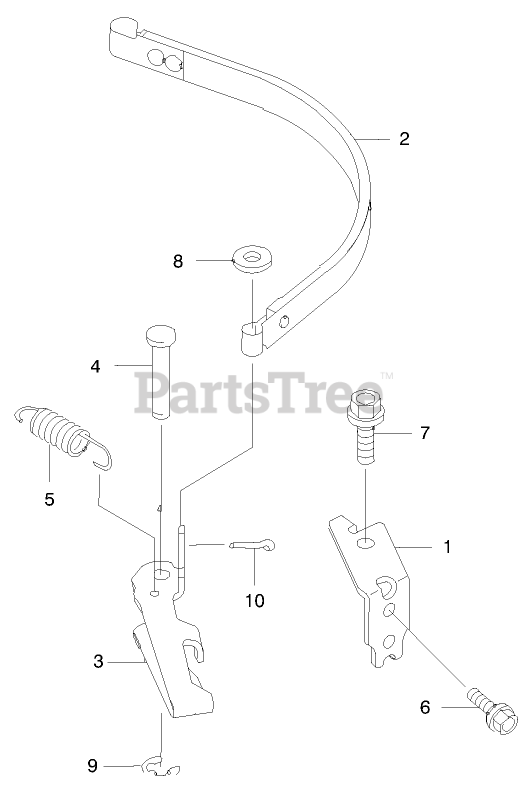

Brake/cover Parts Diagram
Toro 100-2783
BRACKET
$
$
Not available
Toro 100-2784
BAND-BRAKE
$
$
Not available
Toro 100-2785
LEVER-BRAKE
$
$
Not available
Toro 100-2786
PIN
$
$
Not available
Toro 100-2787
SPRING
$
$
Not available
Toro 100-2609
BOLT-FLANGED
$
$
Not available
Toro KW10029
BOLT-FLANGED
$0.99
$
Usually ships in 3-6 days
Toro 100-2671
WASHER PLAIN S
$
$
Not available
Toro 100-2791
CIRCLIP-TYPE-E
$
$
Not available
Toro 100-2792
PIN COTTER
$
$
Not available
