22174 - Toro 53cm Heavy-Duty Recycler Walk-Behind Mower (SN: 210000001 - 210999999) (2001) Engine And Blade Assembly Parts Diagram

53cm Heavy-Duty Recycler Walk-Behind Mower

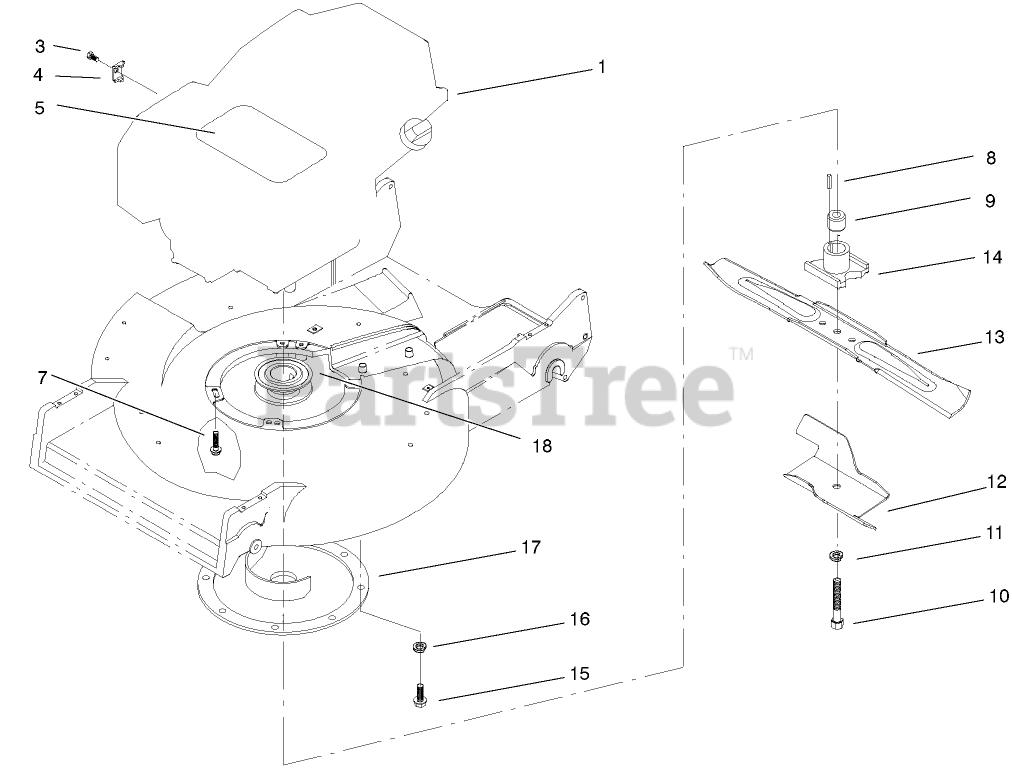

Engine And Blade Assembly Parts Diagram

  • Title

1

Toro 104-1331

See Supercession: 100-6498
(Superseded to 100-6498)

$

$

Not available

3

Toro 95-9853

BOLT (5X18)

$1.49

$

Usually ships in 3-6 days

0

4

Toro 95-9849

CLAMP

$

$

Not available

5

Toro 104-1335

DECAL-ENGINE

$

$

Not available

7

Toro 100-2835

SCREW-MOUNT, ENGINE

$

$

Not available

8

Toro 27-6300

KEY-SQUARE

$6.99

$

Usually ships in 3-6 days

0

9

Toro 99-6279

SPACER-BLADE RETAINER

$14.99

$

Usually ships in 3-6 days

0

10

Toro 26-0670

SCREW-BLADE

$

$

Not available

11

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 2 left!

0

12

Toro 92-1599-03

STIFFENER-BLADE

$94.99

$

Usually ships in 3-6 days

0

13

Toro 14-9419

See Supercession: 91-2256-03
(Superseded to 91-2256-03)

$34.99

$

In Stock, only 4 left!

0

14

Toro 99-6283

See Supercession: 99-6283-03
(Superseded to 99-6283-03)

$84.99

$

In Stock, only 1 left!

0

15

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 15

0

16

Toro 3254-6

WASHER-LOCK, INTERNAL

$0.99

$

Usually ships in 3-6 days

0

17

Toro 65-5860

See Supercession: 125-8370
(Superseded to 125-8370)

$115.99

$

In Stock, only 2 left!

0

18

Toro 100-1586

PULLEY-DRIVER

$90.99

$

Usually ships in 3-6 days

0
