22176 TE - Toro 53cm Heavy-Duty Recycler Walk-Behind Mower (SN: 270000001 - 270999999) (2007) HOUSING, CHUTE AND WHEEL ASSEMBLY Parts Diagram

53cm Heavy-Duty Recycler Walk-Behind Mower

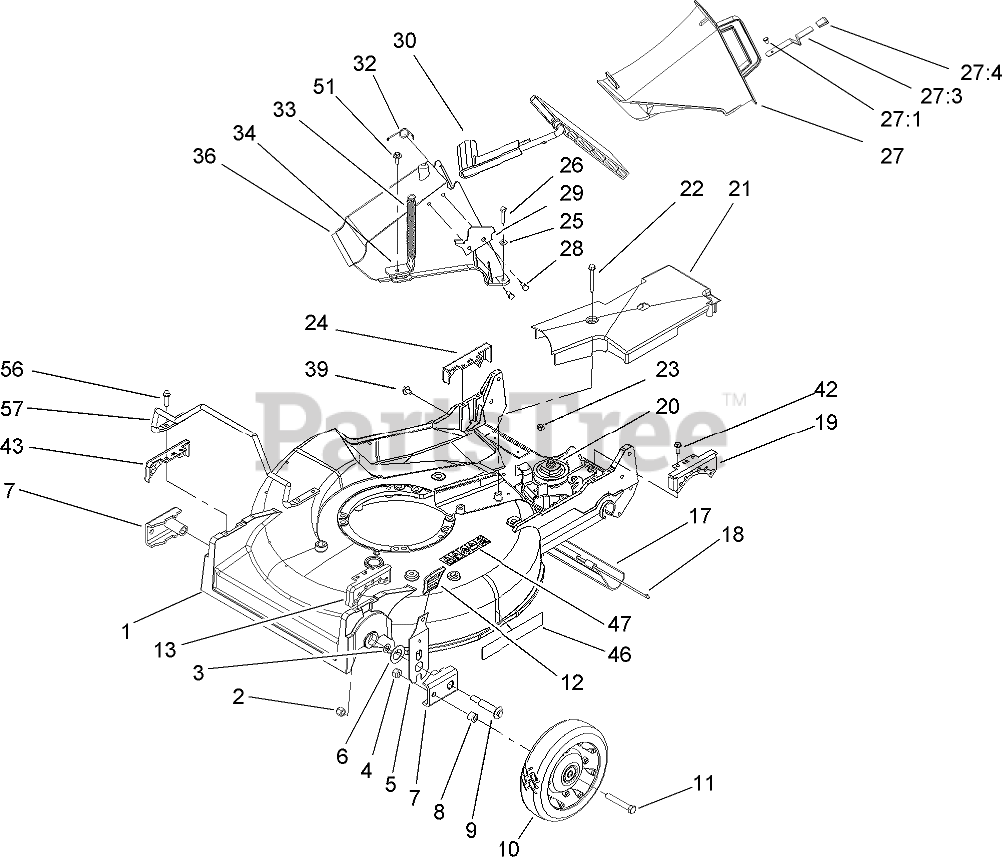

HOUSING, CHUTE AND WHEEL ASSEMBLY Parts Diagram

  • Title

1

Toro 98-7142

HOUSING

$

$

Not available

2

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

3

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

4

Toro 32152-2

NUT-LOCK, CONE

$2.99

$

In Stock, Qty 20+

0

5

Toro 110-0537

SPRING ARM ASM
(Superseded to 115-0980)

$14.99

$

In Stock, Qty 6

0

6

Toro 257-3

WASHER-THRUST

$15.99

$

In Stock, Qty 5

0

7

Toro 61-8300

ARM-PIVOT, FRONT

$28.99

$

In Stock, Qty 7

0

8

Toro 52-2480

SPACER-WHEEL

$6.49

$

In Stock, Qty 12

0

9

Toro 27-6232

BOLT-WHEEL
(Superseded to 114-3468)

$5.49

$

In Stock, Qty 14

0

10

Toro 100-2870

Wheel and Tire ASM
(Superseded to 121-1380)

$100.99

$

In Stock, only 4 left!

0

11

Toro 323-12

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

12

Toro 110-0549

KNOB-HOC

$1.49

$

In Stock, Qty 20+

0

13

Toro 49-8760

QUADRANT-FRONT, LH

$26.99

$

In Stock, Qty 10

0

17

Toro 112-9989

SHIELD-TRAILING

$27.99

$

In Stock, Qty 16

0

18

Toro 33-3208

ROD-SHIELD

$14.99

$

In Stock, Qty 16

0

19

Toro 49-8740

QUADRANT-REAR, LH

$26.99

$

In Stock, only 4 left!

0

20

Toro 74-1861

GEAR CASE ASM
(Superseded to 74-1860)

$730.99

$

Usually ships in 3-6 days

0

21

Toro 74-1770

COVER-BELT

$43.99

$

In Stock, Qty 5

0

22

Toro 37-7260

SCREW-HHFTF

$6.49

$

In Stock, Qty 6

0

23

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

24

Toro 49-8750

QUADRANT-REAR, RH

$26.99

$

In Stock, only 4 left!

0

25

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

26

Toro 321-8

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

27

Toro 77-0502

DISCHARGE PLUG ASM

$123.99

$

Usually ships in 3-6 days

0

27:1

Toro 3295-35

RIVET-HEAD, FLAT

$2.99

$

Usually ships in 3-6 days

0

27:3

Toro 76-4640

LATCH-PLUG, DISCHARGE

$7.99

$

Usually ships in 3-6 days

0

27:4

Toro 76-4650

GRIP-LATCH

$5.49

$

Usually ships in 3-6 days

0

28

Toro 46-8090

SCREW-PLASTITE

$

$

Not available

29

Toro 93-3154

LATCH-PLATE

$5.49

$

In Stock, Qty 5

0

30

Toro 93-7351

DISCHARGE DOOR ASM

$112.99

$

In Stock, only 1 left!

0

32

Toro 80-3770

RETAINER-DOOR

$2.99

$

In Stock, only 2 left!

0

33

Toro 76-4660

SPRING-DOOR

$10.99

$

In Stock, Qty 6

0

34

Toro 71-9350

BRACKET-SPRING

$14.99

$

Usually ships in 3-6 days

0

36

Toro 82-9151

TUNNEL-DISCHARGE

$164.99

$

Usually ships in 3-6 days

0

39

Toro 46-6810

SCREW AND WASHER ASM

$5.49

$

In Stock, only 3 left!

0

42

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

43

Toro 49-8770

QUADRANT-FRONT, RH

$26.99

$

In Stock, only 2 left!

0

46

Toro 106-0689

Decal

$6.49

$

In Stock, Qty 20+

0

47

Toro 110-4978

DECAL-DANGER

$15.99

$

In Stock, only 2 left!

0

51

Toro 46-6811

SCREW-HWH

$3.49

$

In Stock, Qty 7

0

56

Toro 32144-86

SCREW-HWHTF

$1.49

$

In Stock, Qty 20+

0

57

Toro 99-6722

GUARD-ENGINE

$37.99

$

In Stock, only 1 left!

0
