22178 TE - Toro 53cm Heavy-Duty Rear Bagger Walk-Behind Mower (SN: 260000001 - 260999999) (2006) Rear Wheel Assembly No. 100-2860 Parts Diagram

53cm Heavy-Duty Rear Bagger Walk-Behind Mower

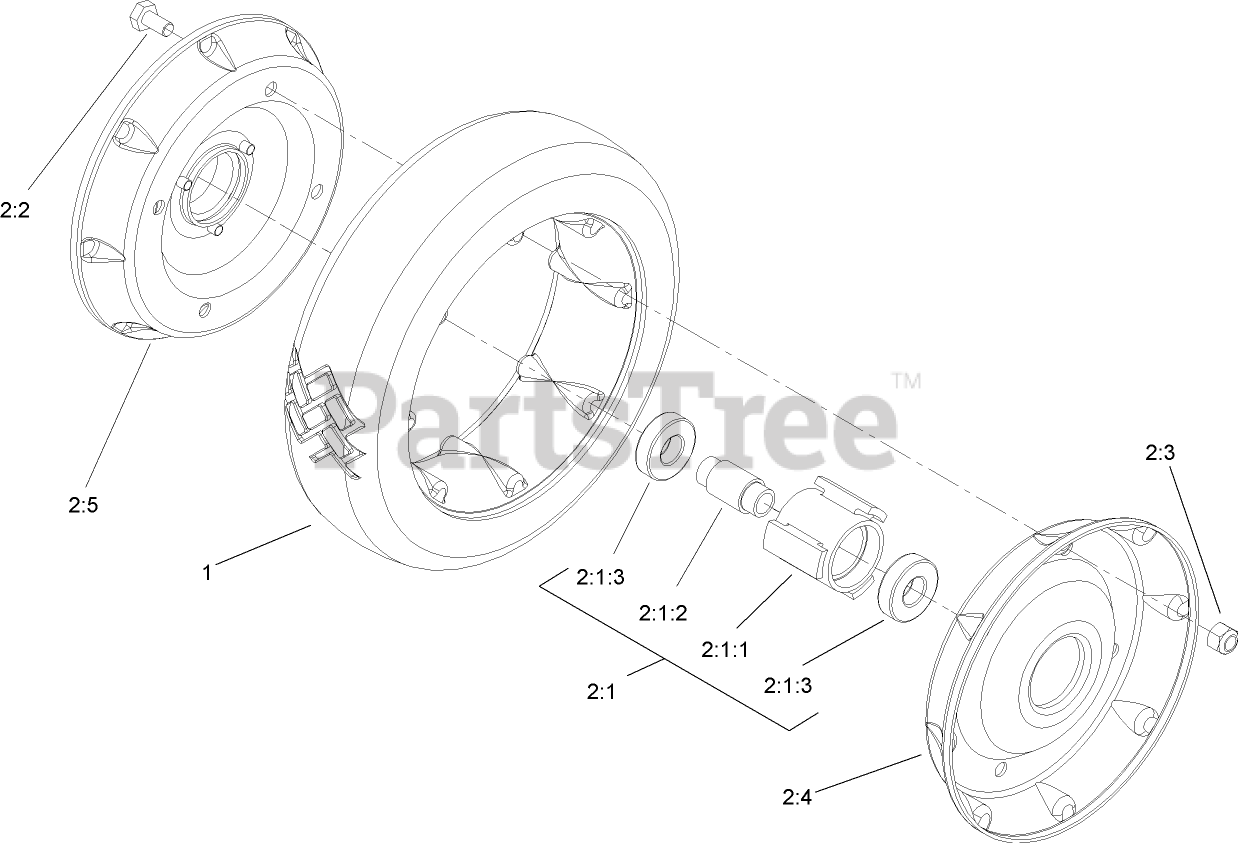

Rear Wheel Assembly No. 100-2860 Parts Diagram

  • Title

1

Toro 53-7740

TIRE

$43.99

$

In Stock, only 1 left!

0

2

Wheel ASM

Note: Not serviced separately

$

$

Not available

2

Wheel ASM

Note: Not illustrated

$

$

Not available

2:1

Loose Parts Package

Note: Not serviced separately

$

$

Not available

2:1:1

Toro 52-2410

HUB-BEARING

$36.99

$

In Stock, Qty 13

0

2:1:2

Toro 52-2440

SPACER-BEARING

$11.99

$

In Stock, only 3 left!

0

2:1:3

Toro 52-2450

BEARING-WHEEL

$20.99

$

In Stock, Qty 20+

0

2:2

Toro 321-2

SCREW-HH

$3.99

$

In Stock, only 4 left!

0

2:3

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

2:4

Toro 53-7780-06

See Supercession: 121-1365-06
(Superseded to 121-1365-06)

$19.99

$

In Stock, only 2 left!

0

2:5

Toro 92-4957-06

See Supercession: 121-1378-06
(Superseded to 121-1378-06)

$29.99

$

In Stock, only 2 left!

0
