22178 TE - Toro 53cm Heavy-Duty Rear Bagger Walk-Behind Mower (SN: 270000001 - 270004000) (2007) HOUSING ASSEMBLY Parts Diagram

53cm Heavy-Duty Rear Bagger Walk-Behind Mower

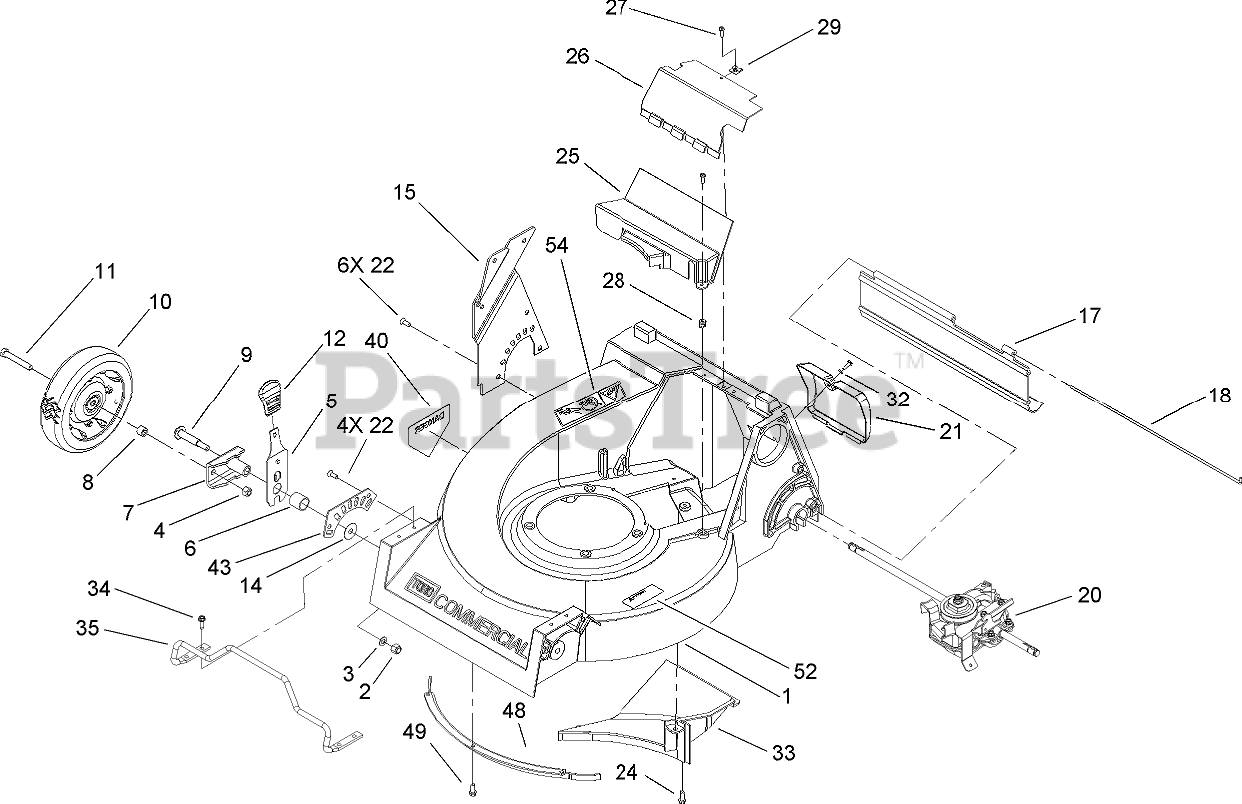

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 107-4165-01

HOUSING
(Superseded to 115-0992)

$461.99

$

Usually ships in 3-6 days

0

2

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

3

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

4

Toro 32152-2

NUT-LOCK, CONE

$2.99

$

In Stock, Qty 20+

0

5

Toro 110-0537

SPRING ARM ASM
(Superseded to 115-0980)

$14.99

$

In Stock, Qty 6

0

6

Toro 75-5310

SPACER-BEARING

$5.99

$

Usually ships in 3-6 days

0

7

Toro 61-8300

ARM-PIVOT, FRONT

$28.99

$

In Stock, Qty 7

0

8

Toro 52-2480

SPACER-WHEEL

$6.49

$

In Stock, Qty 12

0

9

Toro 27-6232

BOLT-WHEEL
(Superseded to 114-3468)

$5.49

$

In Stock, Qty 14

0

10

Toro 100-2870

Wheel and Tire ASM
(Superseded to 121-1380)

$100.99

$

In Stock, only 4 left!

0

11

Toro 323-12

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

12

Toro 110-0549

KNOB-HOC

$1.49

$

In Stock, Qty 20+

0

13

Toro 112-8731

PLATE-FRONT HOC, LH
(Superseded to 115-0960)

Note: Not illustrated

$44.99

$

Usually ships in 3-6 days

0

14

Toro 105-6814

WASHER-PLAIN

$1.49

$

In Stock, Qty 10

0

15

Toro 112-8730-01

PLATE-REAR HOC, RH
(Superseded to 115-4462)

$

$

Not available

17

Toro 110-0509

SHEILD-TRAILING

$38.99

$

In Stock, only 1 left!

0

18

Toro 33-3202

ROD-SHIELD

$7.99

$

In Stock, only 1 left!

0

19

Toro 112-8729-01

PLATE-REAR HOC, LH
(Superseded to 115-4462)

Note: Not illustrated

$

$

Not available

20

Toro 110-2100

GEAR CASE ASM

$952.99

$

Usually ships in 3-6 days

0

21

Toro 107-4288

DOOR-ACCESS, REAR

$22.99

$

Usually ships in 3-6 days

0

22

Toro 32144-17

SCREW-HH

$5.99

$

Usually ships in 3-6 days

0

24

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

25

Toro 107-4297

COVER-BELT, LOWER

$22.99

$

Usually ships in 3-6 days

0

26

Toro 107-4298

COVER-BELT, UPPER

$22.99

$

Usually ships in 3-6 days

0

27

Toro 32144-32

SCREW

$2.49

$

Usually ships in 3-6 days

0

28

Toro 611380

NUT-CLIP

$3.49

$

Usually ships in 3-6 days

0

29

Toro 3290-171

NUT-TYPE J

$5.99

$

In Stock, only 3 left!

0

32

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

33

Toro 110-2108

BAFFLE-CHUTE, FLOOR
(Superseded to 115-0973)

$28.99

$

Usually ships in 3-6 days

0

34

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

35

Toro 110-4876

GUARD-ENGINE

$49.99

$

Usually ships in 3-6 days

0

40

Toro 93-6654

DECAL-DANGER

$

$

Not available

43

Toro 112-8732

PLATE-FRONT HOC, RH
(Superseded to 115-0961)

$44.99

$

Usually ships in 3-6 days

0

48

Toro 46-5400-03

SHIELD

$56.99

$

Usually ships in 3-6 days

0

49

Toro 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0

52

Toro 110-4978

DECAL-DANGER

$15.99

$

In Stock, only 2 left!

0

54

Toro 110-4977

DECAL-DANGER

$7.49

$

Usually ships in 3-6 days
