22189 - Toro 21" Heavy-Duty Rear Bagger Walk-Behind Mower (SN: 280000001 - 280999999) (2008) Engine and Fuel Tank Assembly Parts Diagram

21" Heavy-Duty Rear Bagger Walk-Behind Mower

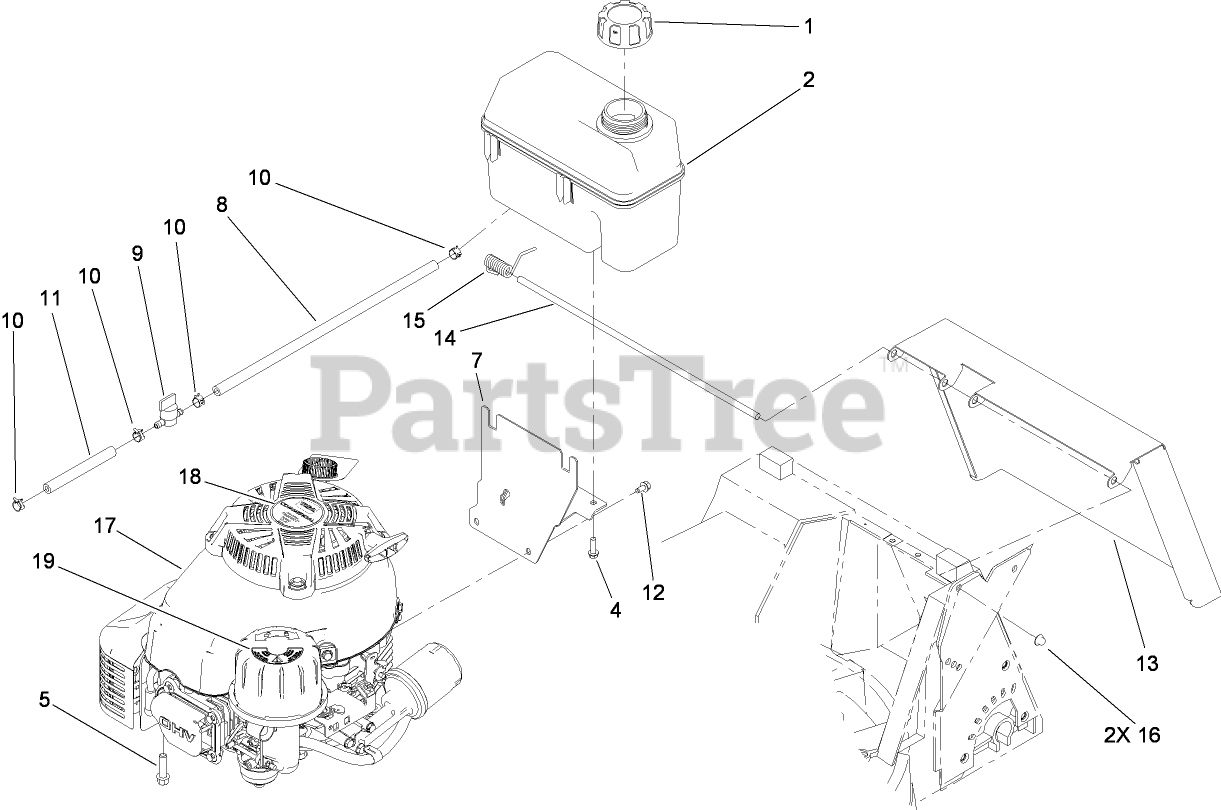

Engine and Fuel Tank Assembly Parts Diagram

  • Title

1

Toro 93-7198

CAP-GAS

$17.99

$

In Stock, only 2 left!

0

2

Toro 106-0625

See Supercession: 117-3510
(Superseded to 117-3510)

$103.99

$

In Stock, only 2 left!

0

4

Toro 46-8091

SCREW-HWH

$4.49

$

In Stock, Qty 20+

0

5

Toro 95-1727

SCREW-TAPTITE

$2.99

$

In Stock, Qty 10

0

7

Toro 115-0954-03

MOUNT-TANK

$45.99

$

In Stock, only 3 left!

0

8

Toro 114-3766

HOSE-FUEL

$12.99

$

In Stock, Qty 5

0

9

Toro 1-603770

VALVE-FUEL

$8.99

$

In Stock, Qty 12

0

10

Toro 2412-98

CLAMP-HOSE

$1.99

$

In Stock, Qty 20+

0

11

Toro 107-0588

HOSE-FUEL

$6.49

$

In Stock, only 2 left!

0

12

Toro 104-2628

SCREW-HWH

$1.99

$

In Stock, only 4 left!

0

13

Toro 114-3445-03

DOOR-DISCHARGE, REAR

$109.99

$

Usually ships in 3-6 days

0

14

Toro 107-4286

ROD-DOOR

$19.99

$

Usually ships in 3-6 days

0

15

Toro 110-5005

SPRING-TORSION, DOOR

$12.99

$

Usually ships in 3-6 days

0

16

Toro 32112-1

PUSHNUT-CAP, WASHER

$6.49

$

Usually ships in 3-6 days

0

18

Toro 112-9967

See Supercession: 110-0520
(Superseded to 110-0520)

$36.99

$

Usually ships in 3-6 days

0

17

Toro 110-5048

See Supercession: 121-1400
(Superseded to 121-1400)

$

$

Not available

19

Toro 114-3415

DECAL

$7.99

$

Usually ships in 3-6 days

0
