22189 - Toro 21" Heavy-Duty Rear Bagger Walk-Behind Mower (SN: 290000001 - 290999999) (2009) ENGINE AND FUEL TANK ASSEMBLY Parts Diagram

21" Heavy-Duty Rear Bagger Walk-Behind Mower

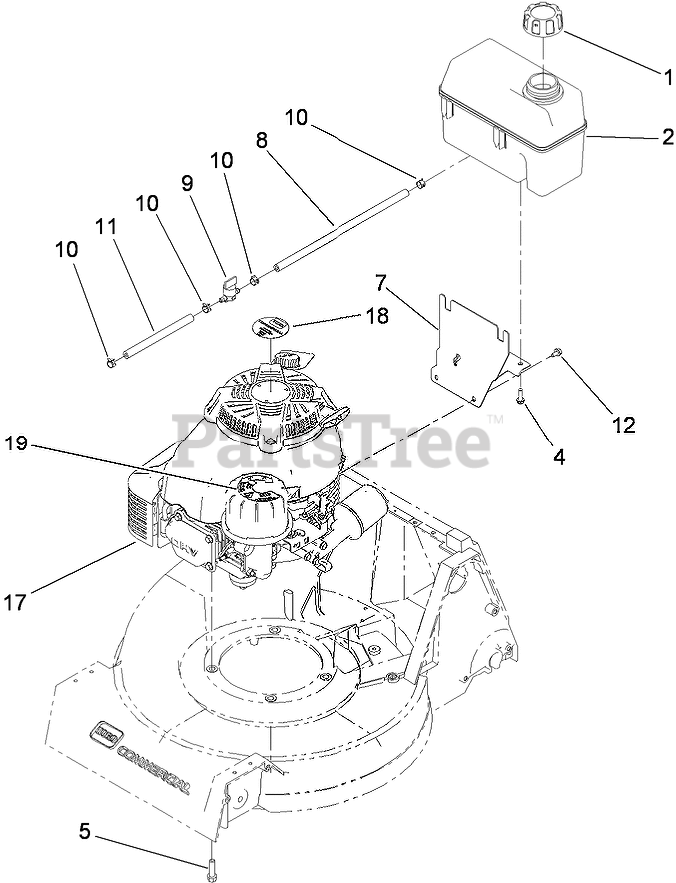

ENGINE AND FUEL TANK ASSEMBLY Parts Diagram

  • Title
1
Usually ships in 1 day

$

$13.41

0

2

Toro Part# 106-0625

Tank-Fuel
(Superseded to 117-3510)
Usually ships in 1 day

$

$74.90

0

4

Toro Part# 46-8091

SCREW-HWH
Usually ships in 1 day

$

$1.11

0

5

Toro Part# 95-1727

SCREW-TAPTITE
Usually ships in 1 day

$

$1.60

0

7
Usually ships in 5 to 8 days

$

$33.53

0

8
Usually ships in 5 to 8 days

$

$8.65

0

9

Toro Part# 1-603770

VALVE-FUEL
Usually ships in 1 day

$

$7.82

0

10

Toro Part# 2412-98

CLAMP-HOSE
Usually ships in 1 day

$

$1.11

0

11
Usually ships in 1 day

$

$4.57

0

12
Usually ships in 1 day

$

$1.44

0

17

Toro Part# 110-5048

ENGINE-KAWASAKI, FJ180V-AS30
(Superseded to 121-1400)
Usually ships in 5 to 8 days

$

$1053.00

0

18

Toro Part# 112-9967

DECAL
(Superseded to 110-0520)
Usually ships in 5 to 8 days

$

$24.64

0

Usually ships in 1 day

$

$5.55

0
