22190 - Toro 21" Heavy-Duty Recycler Walk-Behind Mower (SN: 310000001 - 310999999) (2010) ENGINE AND BLADE ASSEMBLY Parts Diagram

21" Heavy-Duty Recycler Walk-Behind Mower

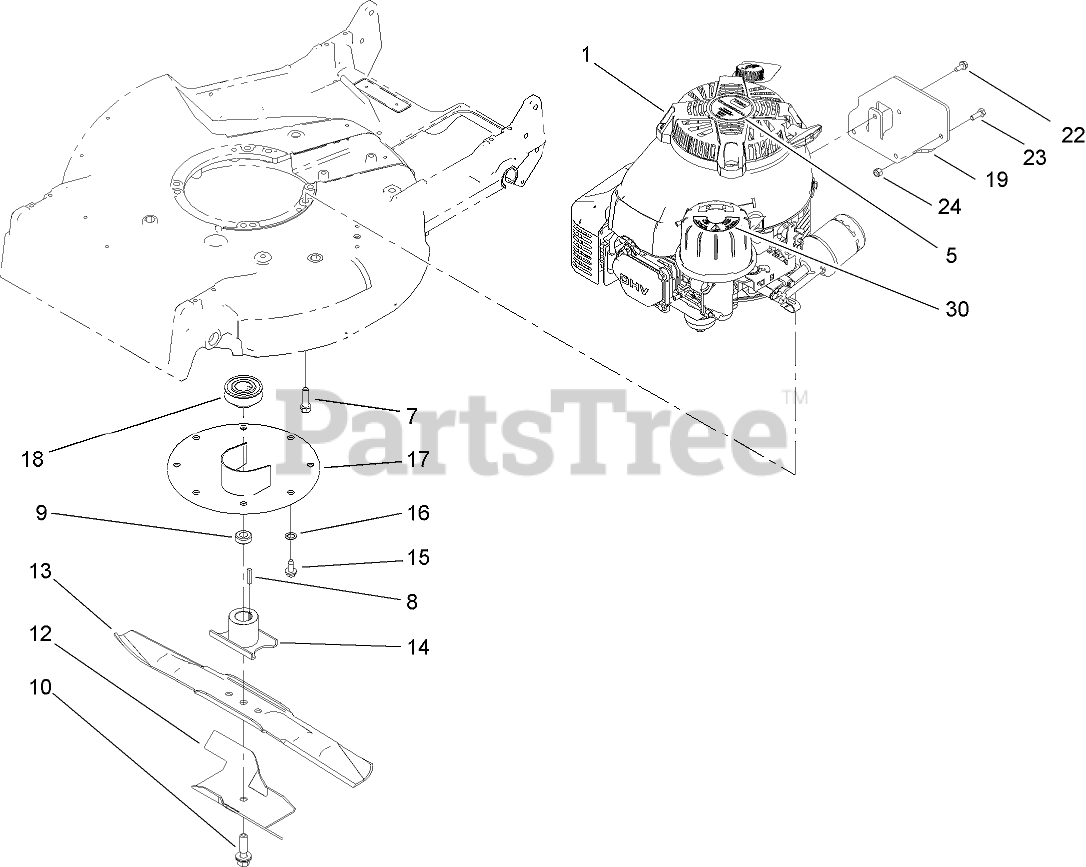

ENGINE AND BLADE ASSEMBLY Parts Diagram

  • Title

1

Toro 114-3432

ENGINE-Kawasaki, FJ180V-AS39

$

$

Not available

5

Toro 112-9967

DECAL
(Superseded to 110-0520)

$36.99

$

Usually ships in 3-6 days

0

7

Toro 95-1727

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

8

Toro 5-1077

KEY-SQUARE

$7.49

$

In Stock, Qty 14

0

9

Toro 103-3795

Spacer-Retainer, Blade

$8.49

$

In Stock, only 3 left!

0

10

Toro 105-8579

BOLT-BLADE
(Superseded to 125-2466)

$3.99

$

In Stock, Qty 20+

0

12

Toro 92-1599-03

STIFFENER-BLADE

$94.99

$

Usually ships in 3-6 days

0

13

Toro 91-2256-03

BLADE-21 INCH

$34.99

$

In Stock, Qty 5

0

14

Toro 52-2170-03

RETAINER-BLADE

$82.99

$

In Stock, only 2 left!

0

15

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 15

0

16

Toro 3254-6

WASHER-LOCK, INTERNAL

$0.99

$

Usually ships in 3-6 days

0

17

Toro 65-5860

PROTECTOR-CRANKSHAFT
(Superseded to 125-8370)

$115.99

$

In Stock, only 2 left!

0

18

Toro 46-7910

PULLEY-DRIVER

$38.99

$

In Stock, only 2 left!

0

19

Toro 112-9730-03

BRACKET-ADAPTER, TANK

$

$

Not available

22

Toro 115-1004

SCREW-HWH

$1.49

$

Usually ships in 3-6 days

0

23

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

24

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

30

Toro 114-3415

DECAL

$7.99

$

Usually ships in 3-6 days

0
