22192 - Toro 21" Heavy-Duty Recycler Walk-Behind Mower (SN: 270000001 - 270999999) (2007) ENGINE AND REAR DISCHARGE DOOR ASSEMBLY Parts Diagram

21" Heavy-Duty Recycler Walk-Behind Mower

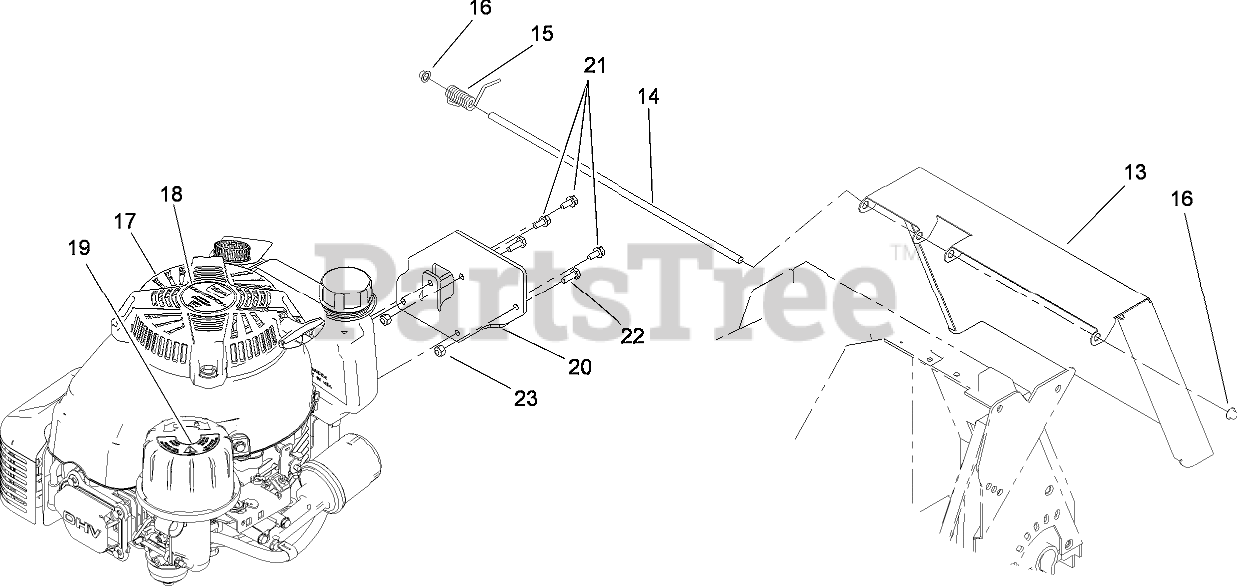

ENGINE AND REAR DISCHARGE DOOR ASSEMBLY Parts Diagram

  • Title

13

Toro 114-3445-03

DOOR-DISCHARGE, REAR

$107.99

$

Usually ships in 3-6 days

0

14

Toro 107-4286

ROD-DOOR

$19.99

$

Usually ships in 3-6 days

0

15

Toro 110-5005

SPRING-TORSION, DOOR

$12.99

$

Usually ships in 3-6 days

0

16

Toro 32112-1

PUSHNUT-CAP, WASHER

$6.49

$

Usually ships in 3-6 days

0

17

ENGINE-KAWASAKI, FJ180V-AS36

Note: Not serviced separately

$

$

Not available

17

ENGINE-KAWASAKI, FJ180V-AS36

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

18

Toro 112-9967

DECAL
(Superseded to 110-0520)

$36.99

$

Usually ships in 3-6 days

0

19

Toro 114-3415

DECAL

$7.99

$

Usually ships in 3-6 days

0

20

Toro 112-9730-03

BRACKET-ADAPTER, TANK

$

$

Not available

21

Toro 115-1004

SCREW-HWH

$1.49

$

Usually ships in 3-6 days

0

22

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

23

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0
