22194 (PT 21) - Toro 21" Trim Walk-Behind Mower (SN: 270000001 - 270999999) (2007) CYLINDER AND CRANKCASE ASSEMBLY KAWASAKI FJ180V-AS34 Parts Diagram

21" Trim Walk-Behind Mower

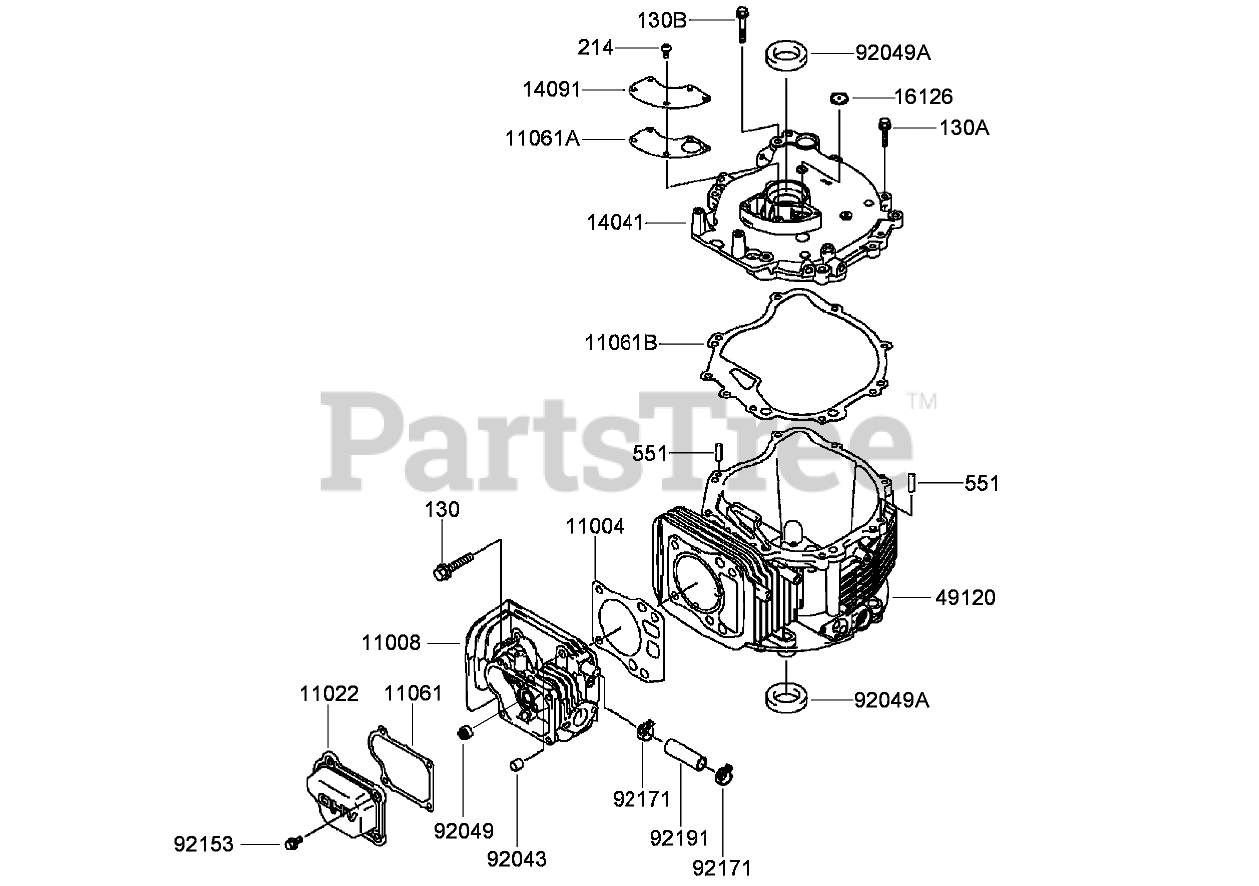

CYLINDER AND CRANKCASE ASSEMBLY KAWASAKI FJ180V-AS34 Parts Diagram

  • Title
11004

Kawasaki Part# 11004-7020

GASKET-HEAD
(Superseded to 11004-7009)

Note: Obtain parts from www.kawpowerepc.com

Usually ships in 1 day

$

$5.94

0

11008

Kawasaki Part# 11008-7025

HEAD-CYLINDER
(Superseded to 11008-7014)

Note: Obtain parts from www.kawpowerepc.com

Usually ships same day

Not available

$

$

11022

Toro Part# 11022-7005

CASE-ROCKER

Note: Obtain parts from www.kawpowerepc.com

Usually ships same day

Currently unavailable

$

$

11061

Kawasaki Part# 11061-7023

GASKET-CASE, ROCKER
(Superseded to 11061-2210)

Note: Obtain parts from www.kawpowerepc.com

Usually ships in 1 day

$

$3.50

0

11061A

Kawasaki Part# 11061-7031

GASKET-BREATHER
(Superseded to 11061-2213)

Note: Obtain parts from www.kawpowerepc.com

Usually ships in 1 day

$

$1.30

0

11061B

Kawasaki Part# 11061-7060

GASKET-COVER, CRANKCASE
(Superseded to 11061-7020)

Note: Obtain parts from www.kawpowerepc.com

Usually ships in 1 day

$

$7.17

0

14041

Kawasaki Part# 14041-7009

COVER ASM
(Superseded to 14041-7004)

Note: Obtain parts from www.kawpowerepc.com

Usually ships in 3 to 6 days

$

$104.03

0

14091

Kawasaki Part# 14091-7010

COVER-BREATHER

Note: Obtain parts from www.kawpowerepc.com

Usually ships in 3 to 6 days

$

$1.66

0

16126

Kawasaki Part# 16126-7014

VALVE-BREATHER
(Superseded to 16126-2247)

Note: Obtain parts from www.kawpowerepc.com

Usually ships in 1 day

$

$0.67

0

49120

Kawasaki Part# 49120-7082

CRANKCASE
(Superseded to 49120-6206)

Note: Obtain parts from www.kawpowerepc.com

Usually ships in 3 to 6 days

$

$320.49

0

92043

Kawasaki Part# 92043-7001

Pin

Note: Obtain parts from www.kawpowerepc.com

Usually ships in 1 day

$

$0.44

0

92049

Kawasaki Part# 92049-7001

SEAL-OIL, R V C2 (6X11X10.2)

Note: Obtain parts from www.kawpowerepc.com

Usually ships in 1 day

$

$7.25

0

92049A

Kawasaki Part# 92049-7008

SEAL-OIL (28-44-9 T C)

Note: Obtain parts from www.kawpowerepc.com

Usually ships in 3 to 6 days

$

$5.14

0

92153

Kawasaki Part# 92153-7043

BOLT (6X12)

Note: Obtain parts from www.kawpowerepc.com

Usually ships same day

Not available

$

$

92171

Kawasaki Part# 92171-7024

CLAMP

Note: Obtain parts from www.kawpowerepc.com

Usually ships in 1 day

$

$2.25

0

92191

Kawasaki Part# 92191-7025

TUBE (12X16X49)
(Superseded to 92192-2184)

Note: Obtain parts from www.kawpowerepc.com

Usually ships same day

Not available

$

$

130

Kawasaki Part# 130CA0840

Bolt-Flanged (8X40)
(Superseded to 130G0840)

Note: Obtain parts from www.kawpowerepc.com

Usually ships in 3 to 6 days

$

$1.11

0

130A

Toro Part# 130G0625

Bolt-Flanged (6X25)

Note: Obtain parts from www.kawpowerepc.com

Usually ships same day

Currently unavailable

$

$

130B

Toro Part# 130G0635

Bolt-Flanged (6X35)

Note: Obtain parts from www.kawpowerepc.com

Usually ships same day

Currently unavailable

$

$

214

Kawasaki Part# 214B0510

SCREW-PAN (5X10)
(Superseded to 214AA0510)

Note: Obtain parts from www.kawpowerepc.com

Usually ships in 1 day

$

$0.27

0

551

Kawasaki Part# 551A0612

PIN-DOWEL (6X12)

Note: Obtain parts from www.kawpowerepc.com

Usually ships in 3 to 6 days

$

$0.55

0
