22194 (PT 21) - Toro 21" Trim Walk-Behind Mower (SN: 280000001 - 280999999) (2008) HANDLE ASSEMBLY Parts Diagram

21" Trim Walk-Behind Mower

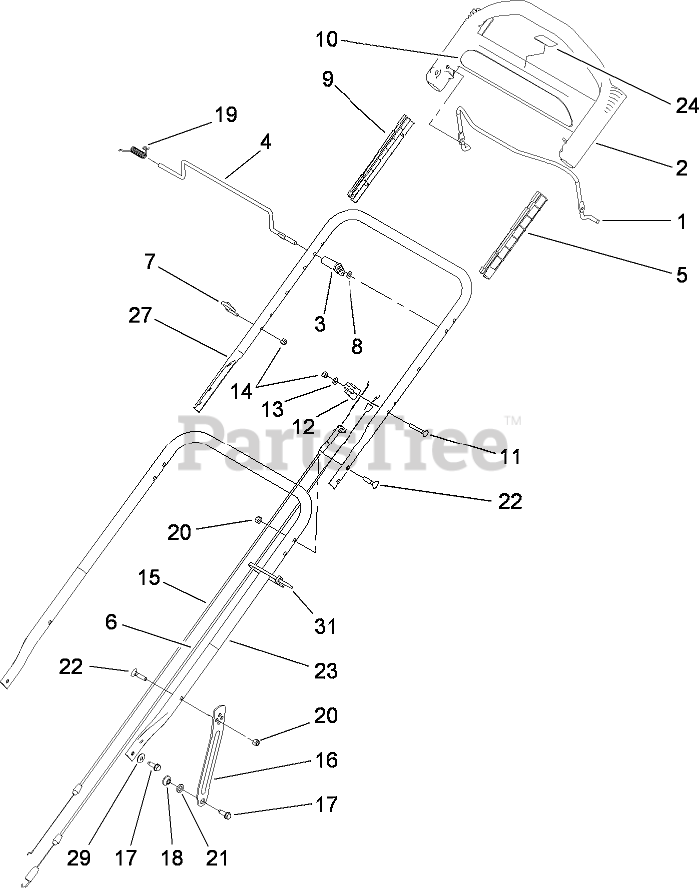

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 104-8679-03

Bail-Brake
(Superseded to 131-0880-03)

$26.99

$

In Stock, Qty 14

0

2

Toro 104-8678

HANDLE-CONTROL

$87.99

$

In Stock, Qty 10

0

3

Toro 99-1589

LEVER-TRACTION

$7.99

$

In Stock, Qty 20+

0

4

Toro 99-1588

BAR-CONTROL, TRACTION
(Superseded to 136-7150)

$18.99

$

In Stock, Qty 5

0

5

Toro 105-6842

GUIDE-LH

$9.49

$

In Stock, only 4 left!

0

6

Toro 106-5750

Cable-Brake

$31.99

$

In Stock, Qty 6

0

7

Toro 86-9671

GUIDE-ROPE

$4.99

$

In Stock, Qty 20+

0

8

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

9

Toro 105-6841

GUIDE-RH

$9.49

$

In Stock, only 2 left!

0

10

Toro 108-8134

DECAL-HANDLE

$14.99

$

Usually ships in 3-6 days

0

11

Toro 95-4453

SCREW

$3.99

$

In Stock, Qty 20+

0

12

Toro 99-5239

ANCHOR-CABLE
(Superseded to 136-5864)

$3.49

$

In Stock, Qty 20+

0

13

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

14

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

15

Toro 108-8158

CABLE-TRACTION

$46.99

$

In Stock, Qty 20+

0

16

Toro 108-8145-03

SUPPORT-HANDLE

$

$

Not available

17

Toro 701243

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

18

Toro 27-6600

SPACER-COUPLING
(Superseded to 125-9249)

$2.99

$

In Stock, only 1 left!

0

19

Toro 104-8690

Spring-Torsion
(Superseded to 136-7166)

$3.49

$

In Stock, Qty 20+

0

20

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

21

Toro 55-9670

WASHER

$2.49

$

Usually ships in 3-6 days

0

22

Toro 92-4095

SCREW-HANDLE

$6.99

$

In Stock, only 4 left!

0

23

Toro 114-3492-03

HANDLE-LOWER

$

$

Not available

24

Toro 98-4387

DECAL-PROTECTION, EAR

$7.99

$

In Stock, Qty 8

0

27

Toro 110-4874-03

HANDLE-UPPER

$94.99

$

Usually ships in 3-6 days

0

29

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 20+

0

31

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 10

0
