22195 - Toro 21" Heavy-Duty Recycler Walk-Behind Mower (SN: 280000001 - 280999999) (2008) CRANKSHAFT AND PISTON ASSEMBLY HONDA GXV160UH2 A1T Parts Diagram

21" Heavy-Duty Recycler Walk-Behind Mower

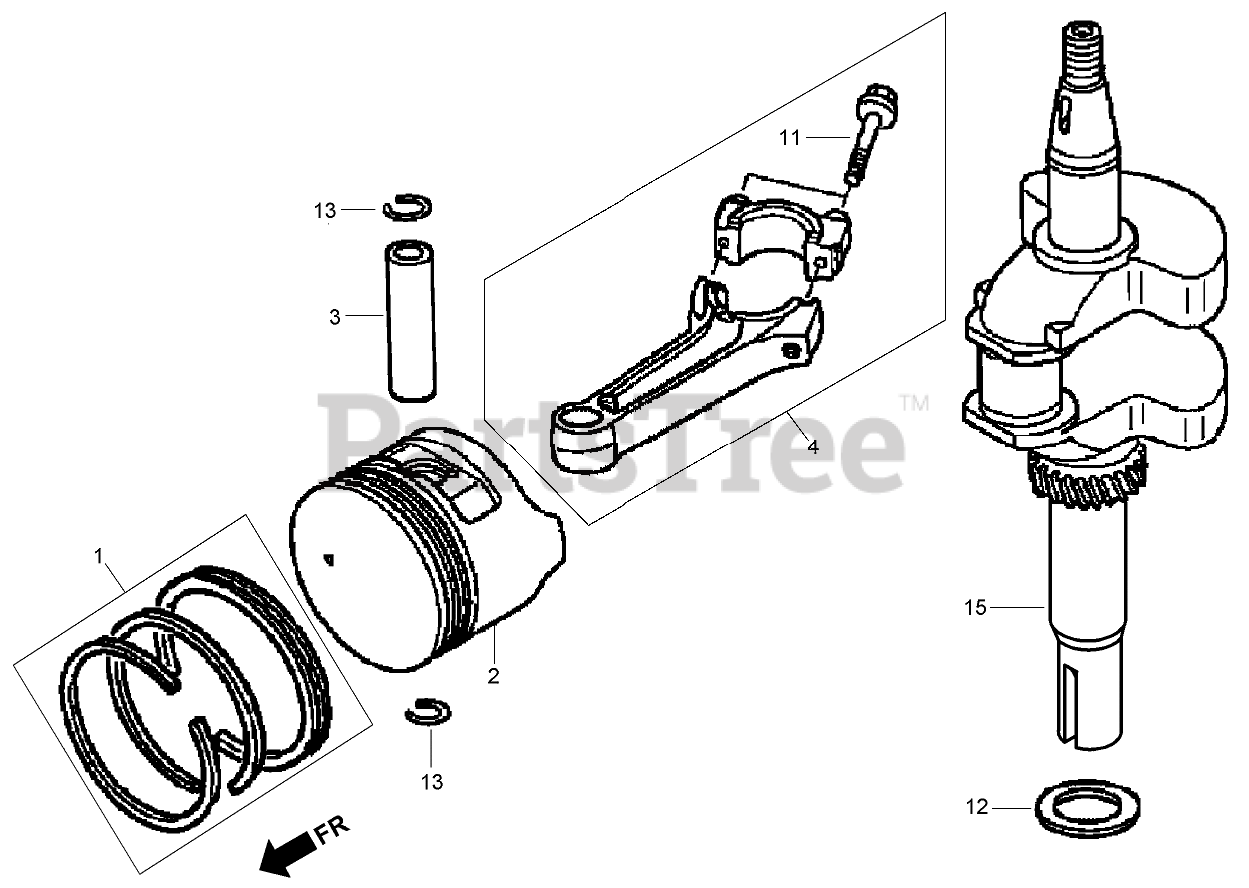

CRANKSHAFT AND PISTON ASSEMBLY HONDA GXV160UH2 A1T Parts Diagram

  • Title

1

Honda 13010-Z4K-004

PISTON RING SET (STD) (TEIKOKU)

Note: Obtain parts from www.honda-engines.com

$30.99

$

In Stock, Qty 5

0

1

Honda 13010-Z4P-003

PISTON RING SET (STD) (RIKEN)

Note: Obtain parts from www.honda-engines.com

$30.99

$

In Stock, only 1 left!

0

1

Honda 13011-Z4K-004

PISTON RING SET (O S 0.25) (TEIKOKU)

Note: Obtain parts from www.honda-engines.com

$

$

Not available

1

Honda 13011-Z4P-003

PISTON RING SET (O S 0.25) (RIKEN)

Note: Obtain parts from www.honda-engines.com

$32.99

$

Usually ships in 3-6 days

0

1

Honda 13012-Z4K-004

PISTON RING SET (O S 0.50) (TEIKOKU)

Note: Obtain parts from www.honda-engines.com

$

$

Not available

1

Honda 13012-Z4P-003

PISTON RING SET (O S 0.50) (RIKEN)

Note: Obtain parts from www.honda-engines.com

$32.99

$

Usually ships in 3-6 days

0

1

Honda 13013-Z4K-004

PISTON RING SET (0.75) (TEIKOKU)

Note: Obtain parts from www.honda-engines.com

$

$

Not available

1

Honda 13013-Z4P-003

PISTON RING SET (0.75) (RIKEN)

Note: Obtain parts from www.honda-engines.com

$

$

Not available

2

Honda 13101-Z1T-010

PISTON (STD) (JIALING-HONDA)

Note: Obtain parts from www.honda-engines.com

$37.99

$

Usually ships in 3-6 days

0

2

Honda 13102-ZH8-020

PISTON (O S 0.25)

Note: Obtain parts from www.honda-engines.com

$

$

Not available

2

Honda 13103-ZH8-020

PISTON (O S 0.50)

Note: Obtain parts from www.honda-engines.com

$

$

Not available

2

Honda 13104-ZH8-020

PISTON (0.75)

Note: Obtain parts from www.honda-engines.com

$

$

Not available

3

Honda 13111-Z1T-000

PIN-PISTON

Note: Obtain parts from www.honda-engines.com

$11.99

$

In Stock, only 2 left!

0

4

Honda 13200-Z1V-000

CONNECTING ROD ASM
(Superseded to 13200-Z1V-600)

Note: Obtain parts from www.honda-engines.com

$117.99

$

In Stock, only 1 left!

0

11

Honda 90001-ZE1-000

BOLT-ROD, CONNECTING

Note: Obtain parts from www.honda-engines.com

$3.49

$

Usually ships in 3-6 days

0

12

Honda 90401-ZE7-W00

WASHER-THRUST (25.6 mm)

Note: Obtain parts from www.honda-engines.com

$6.49

$

In Stock, Qty 5

0

13

Honda 90551-ZE1-000

CLIP-PIN, PISTON (18 mm)

Note: Obtain parts from www.honda-engines.com

$1.49

$

In Stock, Qty 20+

0

15

Honda 13310-ZE7-V10

CRANKSHAFT

Note: Obtain parts from www.honda-engines.com

$190.99

$

Usually ships in 3-6 days

0
