22195 - Toro 21" Heavy-Duty Recycler Walk-Behind Mower (SN: 311000001 - 311999999) (2011) Engine, Fuel Tank and Blade Assembly Parts Diagram

21" Heavy-Duty Recycler Walk-Behind Mower

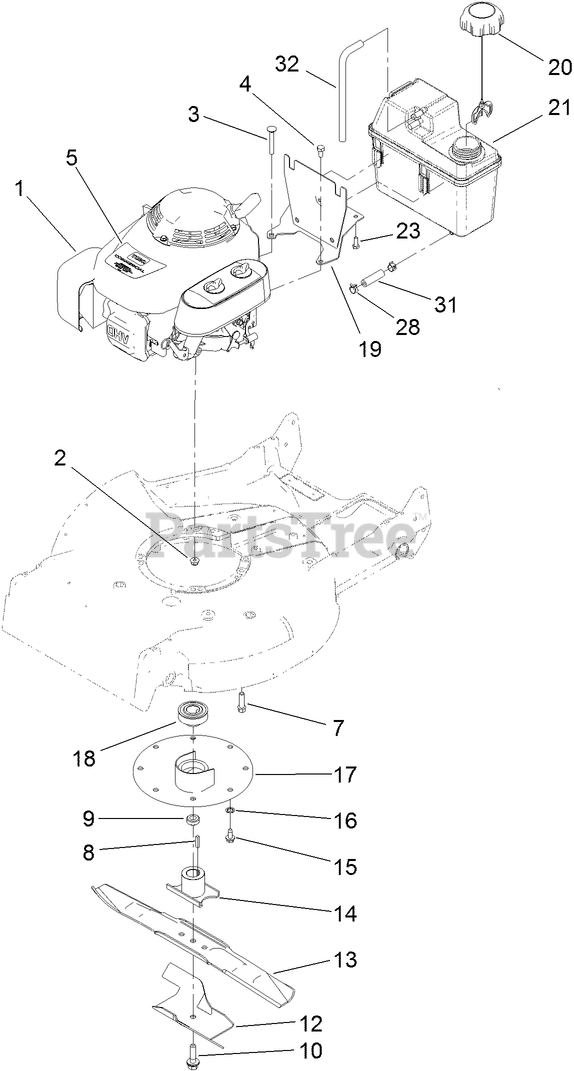

Engine, Fuel Tank and Blade Assembly Parts Diagram

  • Title

1

ENGINE-HONDA, GXV160UH2 A1TT

Note: Not serviced separately

$

$

Not available

1

ENGINE-HONDA, GXV160UH2 A1TT

Note: Obtain parts from www.honda-engines.com

$

$

Not available

2

Toro 32128-25

NUT-HF

$3.99

$

In Stock, Qty 5

0

3

Toro 3230-6

BOLT-CARR

$1.49

$

In Stock, Qty 7

0

4

Toro 3210-2

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

5

Toro 112-9974

See Supercession: 125-8405
(Superseded to 125-8405)

$7.99

$

In Stock, Qty 6

0

7

Toro 103-2678

SCREW-SHOULDER

$6.99

$

Usually ships in 3-6 days

0

8

Toro 5-1077

KEY-SQUARE

$7.49

$

In Stock, Qty 14

0

9

Toro 103-3795

SPACER-RETAINER, BLADE

$8.49

$

In Stock, only 2 left!

0

10

Toro 105-8579

See Supercession: 125-2466
(Superseded to 125-2466)

$3.99

$

In Stock, Qty 20+

0

12

Toro 92-1599-03

STIFFENER-BLADE

$94.99

$

Usually ships in 3-6 days

0

13

Toro 91-2256-03

BLADE-21 INCH

$34.99

$

In Stock, only 4 left!

0

14

Toro 52-2170-03

RETAINER-BLADE

$82.99

$

In Stock, only 1 left!

0

15

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 15

0

16

Toro 3254-6

WASHER-LOCK, INTERNAL

$0.99

$

Usually ships in 3-6 days

0

17

Toro 65-5860

See Supercession: 125-8370
(Superseded to 125-8370)

$115.99

$

In Stock, only 2 left!

0

18

Toro 46-7910

PULLEY-DRIVER

$38.99

$

In Stock, only 2 left!

0

19

Toro 119-7837-03

MOUNT-TANK

$79.99

$

Usually ships in 3-6 days

0

20

Toro 109-6776

See Supercession: 137-4127
(Superseded to 137-4127)

$25.99

$

In Stock, Qty 14

0

21

Toro 114-0280

TANK-FUEL

$158.99

$

In Stock, only 2 left!

0

23

Toro 46-8091

SCREW-HWH

$4.49

$

In Stock, Qty 20+

0

28

Toro 2412-98

CLAMP-HOSE

$1.99

$

In Stock, Qty 20+

0

31

Toro 119-7856

HOSE-FUEL

$5.99

$

Usually ships in 3-6 days

0

32

Toro 115-0962

HOSE-VENT, CANISTER

$10.99

$

In Stock, Qty 5

0
