22196 - Toro 21" Heavy-Duty Recycler Walk-Behind Mower (SN: 290000001 - 290999999) (2009) Crankshaft and Piston Assembly Honda GXV160UH2 T1AH Parts Diagram

21" Heavy-Duty Recycler Walk-Behind Mower

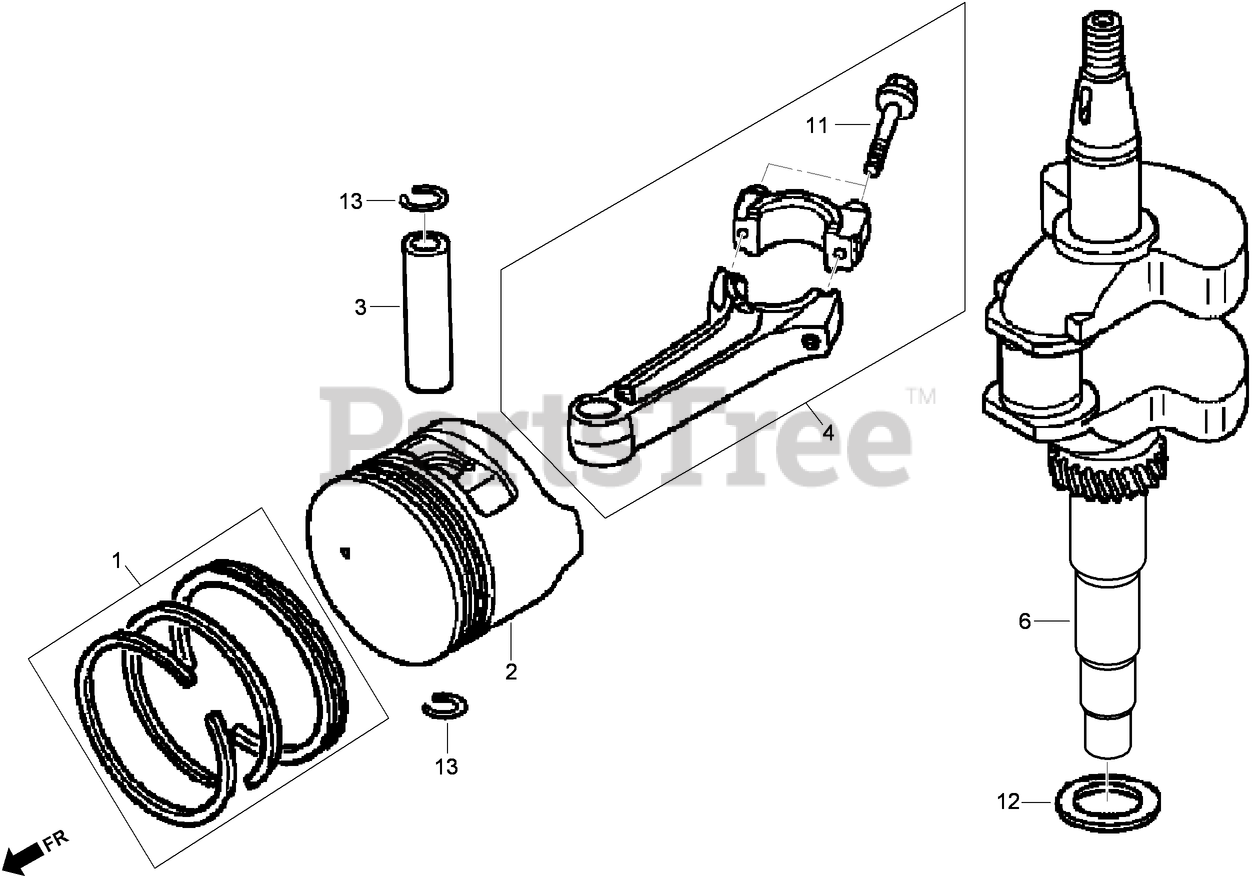

Crankshaft and Piston Assembly Honda GXV160UH2 T1AH Parts Diagram

  • Title

1

Toro 13010-ZL0-003

PISTON RING SET (STD) (TEIKOKU)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

1

Toro 13010-ZL0-004

RING SET-PISTON (STD) (NIPPON)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

1

Toro 13010-Z4K-004

PISTON RING SET (STD) (TEIKOKU)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

1

Toro 13010-Z4P-003

PISTON RING SET (STD) (RIKEN)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

1

Toro 13011-ZL0-003

PISTON RING SET (O S 0.25) (TEIKOKU)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

1

Toro 13011-ZL0-004

RING SET-PISTON (O S 0.25) (NIPPON)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

1

Toro 13011-Z4K-004

PISTON RING SET (O S 0.25) (TEIKOKU)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

1

Toro 13011-Z4P-003

PISTON RING SET (O S 0.25) (RIKEN)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

1

Toro 13012-ZL0-003

PISTON RING SET (O S 0.50) (TEIKOKU)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

1

Toro 13012-ZL0-004

RING SET-PISTON (O S 0.50) (NIPPON)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

1

Toro 13012-Z4K-004

PISTON RING SET (O S 0.50) (TEIKOKU)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

1

Toro 13012-Z4P-003

PISTON RING SET (O S 0.50) (RIKEN) (Engine Serial No. From 1036456)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

1

Toro 13013-ZL0-003

PISTON RING SET (O S 0.75) (TEIKOKU)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

1

Toro 13013-ZL0-004

RING SET-PISTON (0.75) (NIPPON)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

1

Toro 13013-Z4K-004

PISTON RING SET (0.75) (TEIKOKU)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

1

Toro 13013-Z4P-003

PISTON RING SET (0.75) (RIKEN)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

2

Toro 13101-ZH8-010

PISTON (STD)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

2

Toro 13101-Z1T-010

PISTON (STD) (JIALING-HONDA)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

2

Toro 13102-ZE7-020

PISTON (O S 0.25)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

2

Toro 13102-ZH8-020

PISTON (O S 0.25)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

2

Toro 13103-ZE7-020

PISTON (O S 0.50)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

2

Toro 13103-ZH8-020

PISTON (O S 0.50)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

2

Toro 13104-ZE7-020

PISTON (0.75)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

2

Toro 13104-ZH8-020

PISTON (0.75)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

3

Toro 13111-Z1T-000

PIN-PISTON

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

4

Toro 13200-Z1V-000

CONNECTING ROD ASM

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

6

Toro 13310-ZE7-V20

CRANKSHAFT

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

11

Toro 90001-ZE1-000

BOLT-ROD, CONNECTING

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

12

Toro 90401-ZE7-W00

WASHER-THRUST (25.6 mm)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

13

Toro 90551-ZE1-000

CLIP-PIN, PISTON (18 mm)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable
