22196 - Toro 21" Heavy-Duty Recycler Walk-Behind Mower (SN: 312000001 - 312999999) (2012) Engine and Fuel Tank Assembly Parts Diagram

21" Heavy-Duty Recycler Walk-Behind Mower

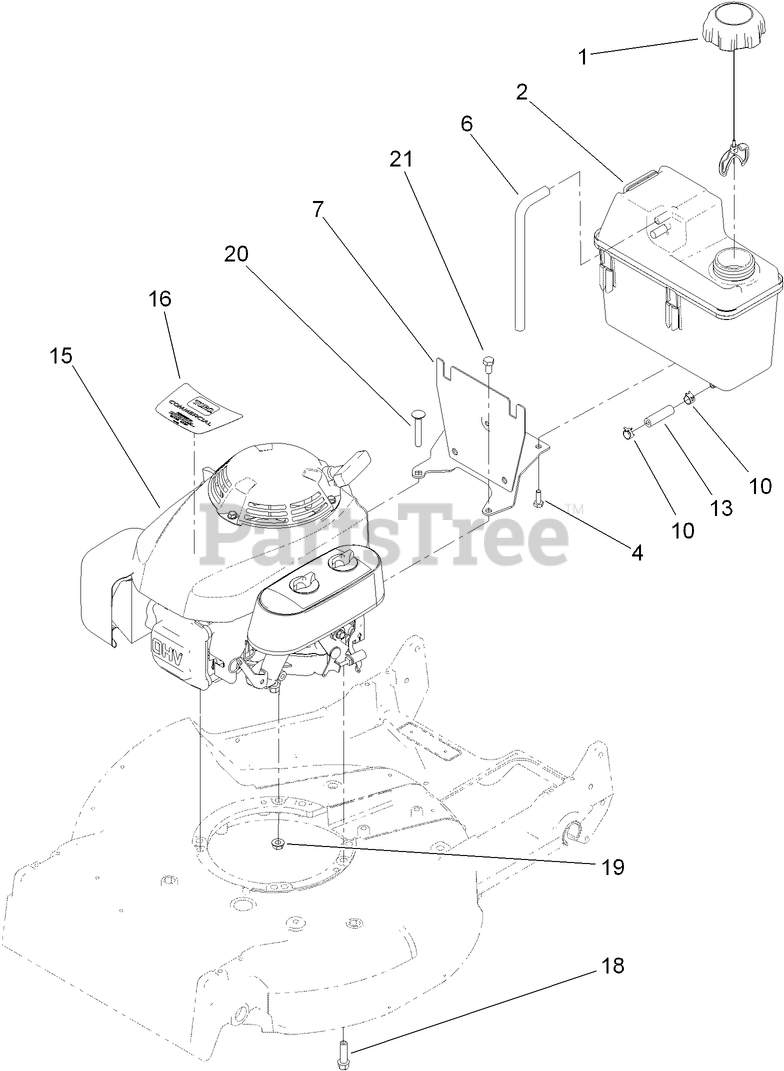

Engine and Fuel Tank Assembly Parts Diagram

  • Title

1

Toro 109-6776

See Supercession: 137-4127
(Superseded to 137-4127)

$25.99

$

In Stock, Qty 13

0

2

Toro 114-0280

TANK-FUEL

$158.99

$

In Stock, only 2 left!

0

4

Toro 46-8091

SCREW-HWH

$4.49

$

In Stock, Qty 20+

0

6

Toro 115-0962

HOSE-VENT, CANISTER

$10.99

$

In Stock, only 3 left!

0

7

Toro 119-7837-03

MOUNT-TANK

$79.99

$

Usually ships in 3-6 days

0

10

Toro 2412-98

CLAMP-HOSE

$1.99

$

In Stock, Qty 20+

0

13

Toro 119-7856

HOSE-FUEL

$5.99

$

Usually ships in 3-6 days

0

15

ENGINE-HONDA, BBC GXV160

Note: Not serviced separately

$

$

Not available

16

Toro 112-9974

See Supercession: 125-8405
(Superseded to 125-8405)

$7.99

$

In Stock, Qty 5

0

18

Toro 103-2678

SCREW-SHOULDER

$6.99

$

Usually ships in 3-6 days

0

19

Toro 3230-6

BOLT-CARR

$1.49

$

In Stock, Qty 7

0

20

Toro 32128-25

NUT-HF

$3.99

$

In Stock, Qty 5

0

21

Toro 3210-2

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0
