22197 - Toro 21" Heavy-Duty Recycler Walk-Behind Mower (SN: 312000001 - 312999999) (2012) ENGINE AND BLADE ASSEMBLY Parts Diagram

21" Heavy-Duty Recycler Walk-Behind Mower

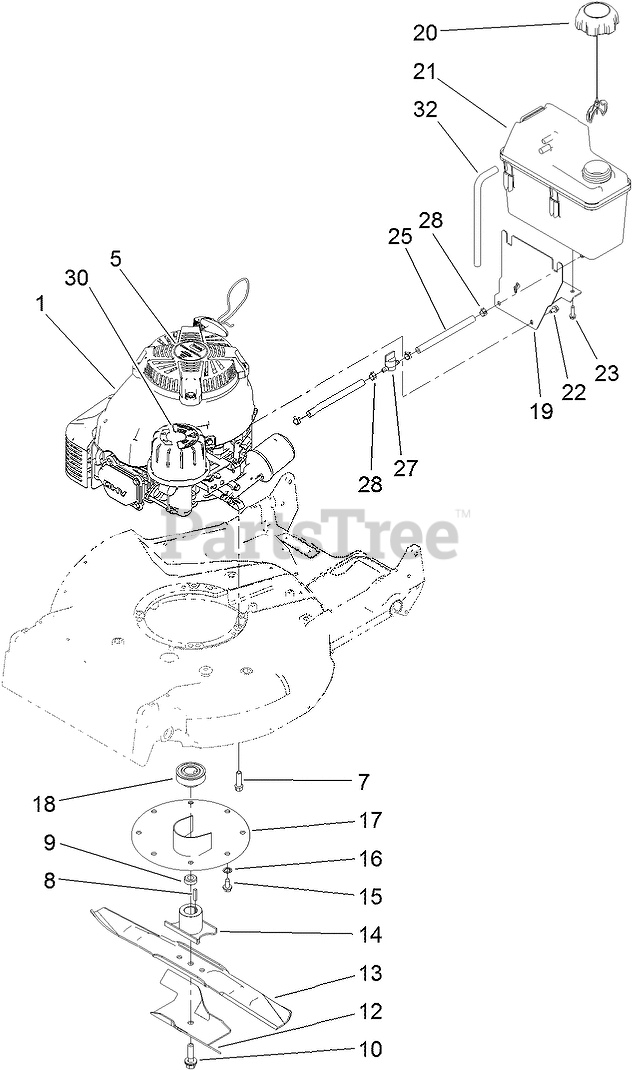

ENGINE AND BLADE ASSEMBLY Parts Diagram

  • Title

1

Toro 117-5222

ENGINE-KAWASAKI, FJ180V-AM08-M
(Superseded to 121-1404)

$

$

Not available

5

Toro 110-0520

DECAL

$36.99

$

Usually ships in 3-6 days

0

7

Toro 95-1727

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

8

Toro 5-1077

KEY-SQUARE

$7.49

$

In Stock, Qty 6

0

9

Toro 103-3795

Spacer-Retainer, Blade

$8.49

$

In Stock, only 3 left!

0

10

Toro 105-8579

BOLT-BLADE
(Superseded to 125-2466)

$3.99

$

In Stock, Qty 20+

0

12

Toro 92-1599-03

STIFFENER-BLADE

$91.99

$

Usually ships in 3-6 days

0

13

Toro 91-2256-03

BLADE-21 INCH

$34.99

$

In Stock, Qty 12

0

14

Toro 52-2170-03

RETAINER-BLADE

$79.99

$

In Stock, only 4 left!

0

15

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

16

Toro 3254-6

WASHER-LOCK, INTERNAL

$0.99

$

Usually ships in 3-6 days

0

17

Toro 121-1360

CRANKSHAFT PROTECTOR ASM
(Superseded to 125-8370)

$111.99

$

Usually ships in 3-6 days

0

18

Toro 46-7910

PULLEY-DRIVER

$38.99

$

In Stock, only 2 left!

0

19

Toro 115-0954-03

MOUNT-TANK

$45.99

$

In Stock, only 3 left!

0

20

Toro 109-6776

CAP-RATCHET, TETHERED
(Superseded to 137-4127)

$24.99

$

In Stock, Qty 15

0

21

Toro 114-0280

TANK-FUEL

$153.99

$

In Stock, Qty 11

0

22

Toro 104-2628

SCREW-HWH

$1.99

$

Usually ships in 3-6 days

0

23

Toro 46-8091

SCREW-HWH

$4.49

$

In Stock, Qty 20+

0

25

Toro 107-0588

HOSE-FUEL

$5.99

$

In Stock, only 2 left!

0

27

Toro 1-603770

VALVE-FUEL

$8.99

$

In Stock, Qty 20+

0

28

Toro 2412-98

CLAMP-HOSE

$1.99

$

In Stock, Qty 20+

0

30

Toro 114-3415

DECAL

$7.99

$

Usually ships in 3-6 days

0

32

Toro 115-0962

HOSE-VENT, CANISTER

$9.49

$

In Stock, only 3 left!
