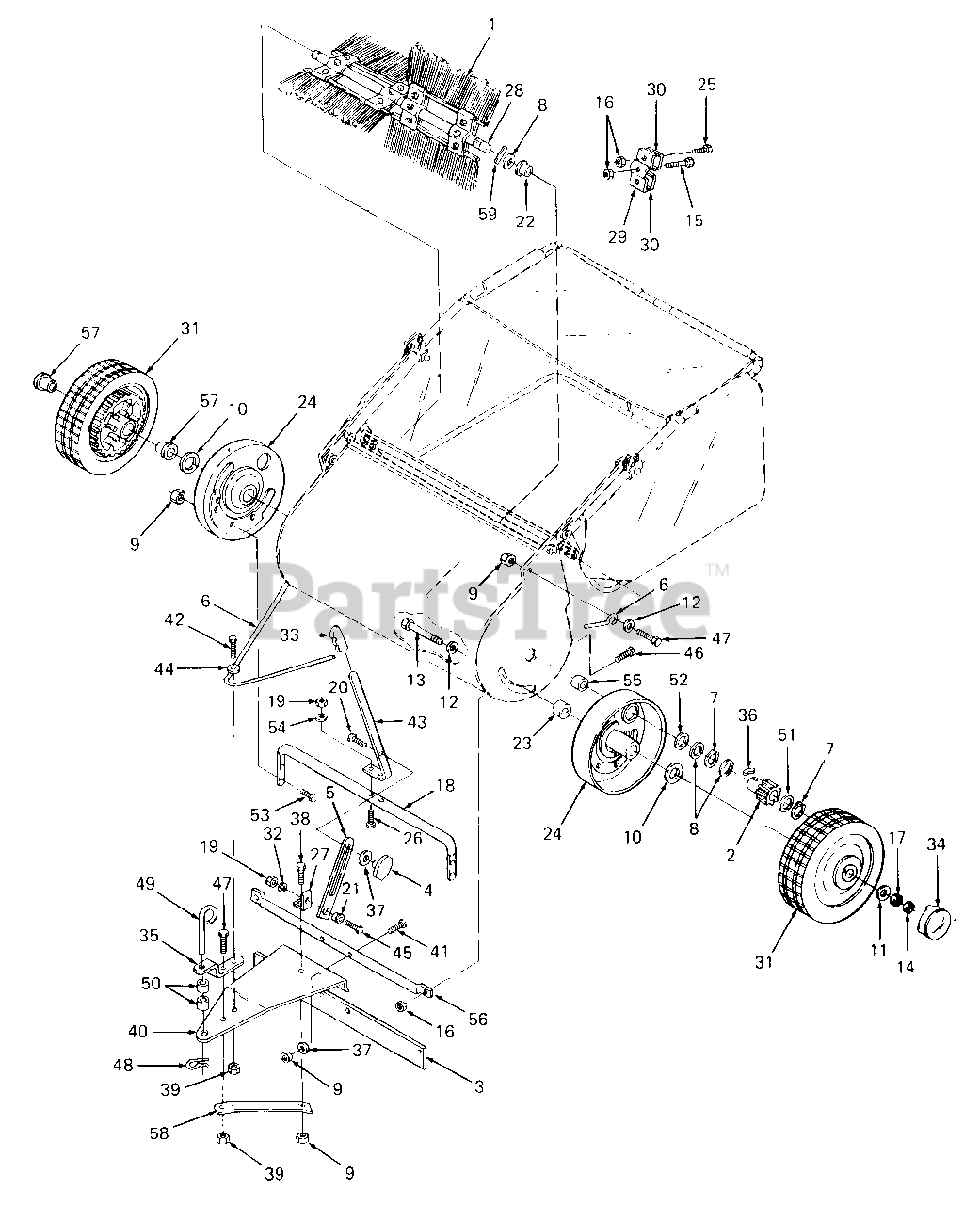

222 (190-222-100) - Cub Cadet 38" Lawn Sweeper Wheels, Brush and Hitch Parts Diagram

38" Lawn Sweeper

Wheels, Brush and Hitch Parts Diagram

  • Title

1

Cub Cadet AF-43904

Brush
(Superseded to AF-47488)

$

$

Not available

2

Cub Cadet 2692-007

Gear, Pinion LH
(Superseded to AF-2692-7)

$

$

Not available

Cub Cadet 2692-006

Gear, Pinion RH
(Superseded to AF-2692-6)

Note: (Not shown)

$

$

Not available

3

Cub Cadet AF-44960

Skirt

$

$

Not available

4

Cub Cadet AF-43720

Knob, Height Adjustment

$16.99

$

Usually ships in 3-6 days

0

5

Cub Cadet AF-23876

Strap, Height Adjustment

$

$

Not available

6

Cub Cadet AF-43958

Rod, Brace

$

$

Not available

7

Cub Cadet 1650-021

Ring, Retaining, .594 ID
(Superseded to AF-1650-21)

$6.49

$

Usually ships in 3-6 days

0

8

Cub Cadet AF-44007

Washer, Flat, .596 x 1.125 x .025
(Superseded to AF-44007P)

$

$

Not available

9

Cub Cadet 712-0158

Nut, Hex Lock, 5/16-18 Thd
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 20+

0

10

Cub Cadet AF-44008

Washer, Flat, .783 ID x 1.125 x .025
(Superseded to HG-44008)

$3.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 0141-000

Washer, Flat, .38 x 1.25

$

$

Not available

12

Cub Cadet AF-43070

Washer, Std, 3/8

$7.49

$

Usually ships in 3-6 days

0

13

Cub Cadet AF-44961

Bolt, Hex, 3/8-24 x 3-1/4 Lg

$3.49

$

Usually ships in 3-6 days

0

14

Cub Cadet 712-3001

Nut, Jam, 3/8-24 Thd
(Superseded to 912-3001)

$6.49

$

In Stock, Qty 20+

0

15

Cub Cadet 710-0855

Bolt, Hex, 1/4-20 x 1 Lg
(Superseded to 710-0788)

$6.99

$

In Stock, only 4 left!

0

16

Cub Cadet 712-0107

Nut, Hex Lock, 1/4-20 Thd
(Superseded to 912-0107)

$4.49

$

In Stock, only 1 left!

0

17

Cub Cadet 712-0296

Nut, Hex Lock, 3/8-24 Thd
(Superseded to 912-0296)

$2.99

$

In Stock, only 1 left!

0

18

Cub Cadet AF-44908

Tube, Height Adjustment

$

$

Not available

19

Cub Cadet 712-3010

Nut, Hex, 5/16-18 Thd

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 710-0451

Bolt, Carriage, 5/16-18 x 3/4 Lg

$3.99

$

In Stock, Qty 20+

0

21

Cub Cadet AF-23400

Spacer, Bushing

$

$

Not available

22

Cub Cadet AF-44910

Bushing, Brush Shaft

$

$

Not available

23

Cub Cadet AF-44911

Spacer, .39 ID x 1-1/4 OD

$

$

Not available

24

Cub Cadet AF-62863

Cover, Dust

$

$

Not available

25

Cub Cadet 710-0812

Bolt, Hex, 1/4-20 x .75 Lg GR5

$

$

Not available

26

Cub Cadet AF-44947

Bolt, Curved Hd, 5/16-18 x 1-5/8

$

$

Not available

27

Cub Cadet AF-23869

Bracket, Angle

$

$

Not available

28

Cub Cadet AF-23852

Shaft, Brush

Note: (Note: Holes in shaft changed from rectangular to round. See Ref# 36)

$

$

Not available

29

Cub Cadet AF-23580

Retainer, Brush (Double)

$11.99

$

In Stock, Qty 5

0

30

Cub Cadet AF-23581

Retainer, Brush (Single)

$12.99

$

In Stock, Qty 7

0

31

Cub Cadet AF-44985

Wheel Assy, Complete

$148.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 736-0119

Washer, Lock, 5/16 ID
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

33

Cub Cadet AF-43943

Grip

$

$

Not available

34

Cub Cadet 2674-032

Hub Cap
(Superseded to AF-2674-32)

$

$

Not available

35

Cub Cadet AF-23014

Bracket, Hitch
(Superseded to AF-23014-0637)

Variations

Cub Cadet AF-23014-0637

Hitch Bracket - POWDER BLACK (0637)

$54.99

$

Usually ships in 3-6 days

0

$54.99

$

Usually ships in 3-6 days

0

36

Cub Cadet AF-1671-1P

Pawl

Note: (For rectangular holes in brush shaft)

$9.99

$

In Stock, only 1 left!

0

Cub Cadet AF-47046

Drive Pin (New Style)

Note: (For round holes in brush shaft)

$6.49

$

In Stock, only 2 left!

0

37

Cub Cadet AF-43081

Washer, Flat, Std, 5/16
(Superseded to 936-0159)

$

$

Not available

38

Cub Cadet 710-3008

Bolt, Hex, 5/16-18 x 3/4 Lg

$3.99

$

In Stock, Qty 20+

0

39

Cub Cadet 712-0375

Nut, Hex Lock, 3/8-16 Thd

$4.49

$

In Stock, Qty 12

0

40

Cub Cadet AF-23874

Tongue, Hitch

$

$

Not available

41

Cub Cadet 710-3050

Bolt, Carriage, 5/16-18 x 1-1/2
(Superseded to 710-0262)

$3.99

$

In Stock, Qty 14

0

42

Cub Cadet 710-0520

Bolt, Hex, 3/8-16 x 1.5 Lg

$4.49

$

In Stock, Qty 20+

0

43

Cub Cadet AF-23850

Handle, Height Adjustment

$

$

Not available

44

Cub Cadet 736-0208

Washer, Flat, 17/32 x 1-1/2

$4.49

$

In Stock, Qty 9

0

45

Cub Cadet AF-43814

Bolt, Truss Hd, Slotted, 5/16-18 x 3/4

$

$

Not available

46

Cub Cadet 710-0134

Bolt, Carriage, 1/4-20 x 5/8

$3.99

$

In Stock, Qty 20+

0

47

Cub Cadet 710-3005

Bolt, Hex, 3/8-16 x 1-1/4 Lg

$3.99

$

In Stock, Qty 20+

0

48

Cub Cadet AF-43343

Cotter, Hairpin, 5/32

$11.99

$

Usually ships in 3-6 days

0

49

Cub Cadet AF-23353

Pin, Hitch

$36.99

$

Usually ships in 3-6 days

0

50

Cub Cadet AF-23368

Tube, Hitch Adjustment

$14.99

$

Usually ships in 3-6 days

0

51

Cub Cadet AF-44006

Washer, Flat, .596 x .859 x .025

$

$

Not available

52

Cub Cadet 736-0287

Washer, Flat, .78 ID

$3.99

$

In Stock, Qty 20+

0

53

Cub Cadet 710-3039

Bolt, Hex, 5/16-18 x 1/2 Lg

$

$

Not available

54

Cub Cadet AF-44695

Washer, Bowed

$

$

Not available

55

Cub Cadet AF-44912

Spacer, .781 ID x 1-1/4 OD x .5 Lg

$

$

Not available

56

Cub Cadet AF-44904

Tube, Hitch

$

$

Not available

57

Cub Cadet AF-45088

Bearing, Wheel

$13.99

$

In Stock, only 2 left!

0

58

Cub Cadet AF-23875

Bracket, Tongue

$

$

Not available

59

Cub Cadet AF-43659

Pin, Spring, 3/16 x 1

$7.49

$

Usually ships in 3-6 days

0
