222 - Poulan Chainsaw (2008-03) Engine Parts Diagram

Chainsaw

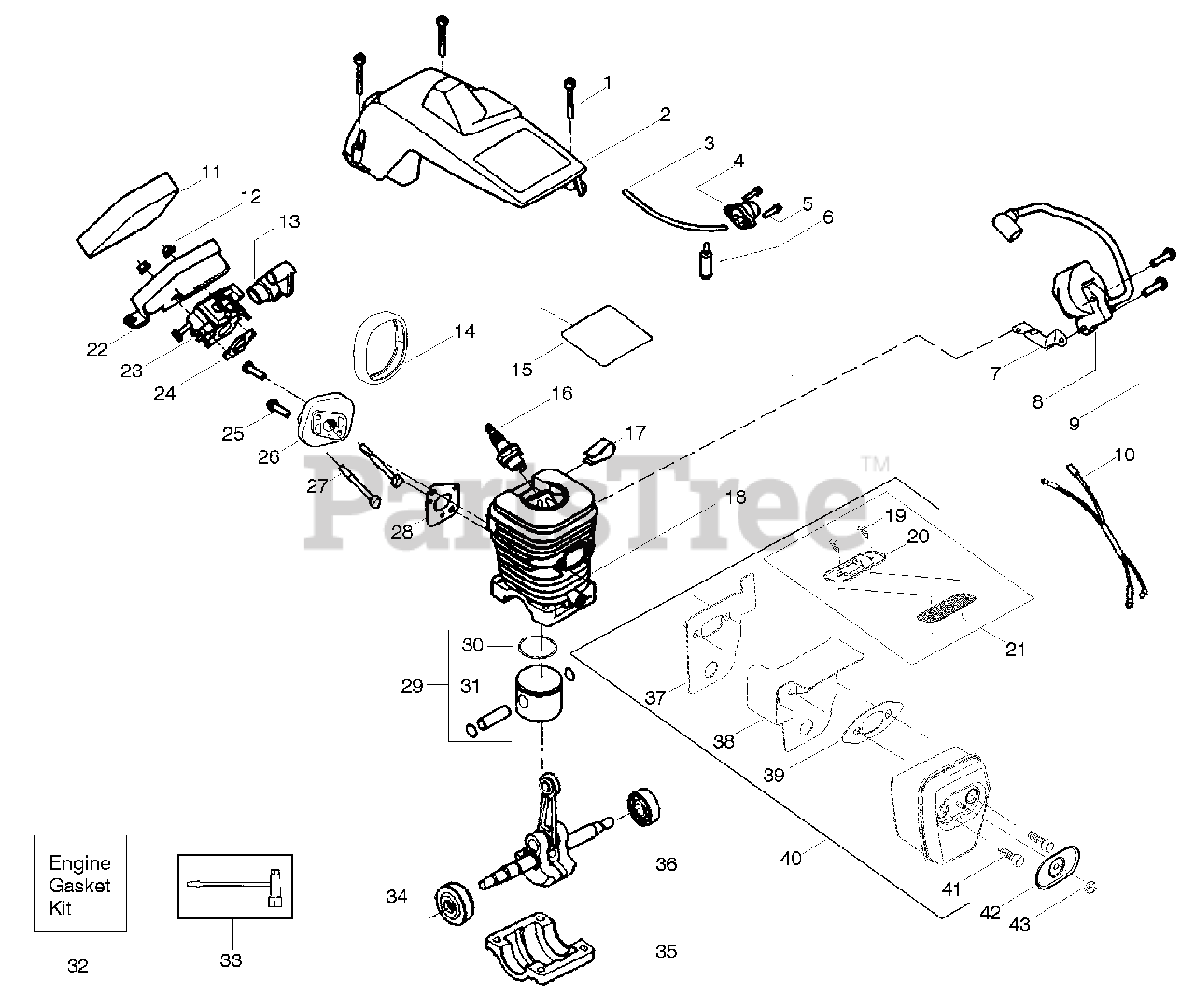

Engine Parts Diagram

  • Title

1

Electrolux/AYP 530016153

Screw

$6.49

$

In Stock, Qty 15

0

2

Electrolux/AYP 530055637

Assy-Cylinder Shield

Note: (Includes # 15)

$

$

Not available

3

Electrolux/AYP 530069247

Kit-Fuel Line (Small)

$6.49

$

In Stock, Qty 20+

0

4

Electrolux/AYP 530071835

Kit- Air Purge

Note: (incl.#5)

$8.99

$

In Stock, Qty 20+

0

5

Electrolux/AYP 530015780

Screw

$6.49

$

In Stock, only 3 left!

0

6

Electrolux/AYP 530095646

Assy-Fuel Pick-up

$4.99

$

In Stock, Qty 20+

0

7

Electrolux/AYP 530047442

Strap-Ground

$3.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 530039198

Ignition Module

$47.99

$

In Stock, only 4 left!

0

9

Electrolux/AYP 530015814

Screw

$6.49

$

In Stock, Qty 20+

0

10

Electrolux/AYP 530052296

Assy-Wire Harness

$

$

Not available

11

Electrolux/AYP 530037793

Foam- Air Filter

$4.99

$

In Stock, Qty 20+

0

12

Electrolux/AYP 530016101

Nut

$6.49

$

In Stock, Qty 8

0

13

Electrolux/AYP 530035526

Grommet-Carb Adjust
(Superseded to 530049244)

$3.99

$

In Stock, only 3 left!

0

14

Electrolux/AYP 530054144

Seal-Carb Adapter

$

$

Not available

15

Electrolux/AYP 530055698

Reflector-Heat

$3.99

$

In Stock, only 1 left!

0

16

Electrolux/AYP 952030150

Spark Plug (RCJ-7Y)

$3.49

$

In Stock, Qty 20+

0

17

Electrolux/AYP 530016136

Clip-High Tension Lead

$3.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 530012550

Cylinder

$31.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 530016351

Screw-Outlet cover

$3.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 530054883

Cover - Outlet

$

$

Not available

21

Electrolux/AYP 530071413

Kit-Spark Arrestor
(Superseded to 530071904)

Note: (Incl. 19,20)

$

$

Not available

22

Electrolux/AYP 530057480

Air Filter Housing

$8.99

$

In Stock, only 1 left!

0

23

Electrolux/AYP 545081885

Kit-Carburetor Walbro (WT-89)

Note: (Incl. Grommet)

$34.99

$

In Stock, Qty 11

0

24

Electrolux/AYP 530069608

Gasket-Carb. (kit)

$8.99

$

In Stock, Qty 20+

0

25

Electrolux/AYP 530016386

Screw

$10.99

$

In Stock, Qty 9

0

26

Electrolux/AYP 530049700

Carb. Adapter

$7.49

$

In Stock, only 3 left!

0

27

Electrolux/AYP 530016187

Screw

$6.49

$

In Stock, only 4 left!

0

28

Electrolux/AYP 530069608

Gasket- Adaptor(kit)

$8.99

$

In Stock, Qty 20+

0

29

Electrolux/AYP 530071408

Kit-Piston

Note: (Incl. 30 & 31)

$

$

Not available

30

Electrolux/AYP 530038729

Ring-Piston
(Superseded to 545160401)

$6.49

$

In Stock, only 3 left!

0

31

Electrolux/AYP 530015697

Retainer-Piston Pin

$6.49

$

In Stock, Qty 6

0

32

Electrolux/AYP 530069608

Kit-Engine Gasket

Note: (Incl. 24, 28 & 39)

$8.99

$

In Stock, Qty 20+

0

33

Electrolux/AYP 530031135

Bar Wrench
(Superseded to 530031163)

$9.99

$

In Stock, Qty 17

0

34

Electrolux/AYP 530056363

Assy-Seal & Bearing

$18.99

$

In Stock, Qty 7

0

35

Electrolux/AYP 530037935

Cap-Crankcase

$10.99

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 530047062

Assy-Crankshaft
(Superseded to 545113101)

$72.99

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 530054885

Backplate

$

$

Not available

38

Electrolux/AYP 530054880

Guide-Outlet

$

$

Not available

39

Electrolux/AYP 530069608

Gasket-Muffler(kit)

$8.99

$

In Stock, Qty 20+

0

40

Electrolux/AYP 530054886

Assy-Muffler
(Superseded to 530071904)

Note: (Incl. 37-39,41)

$

$

Not available

41

Electrolux/AYP 530016338

Bolt-Muffler

$3.99

$

In Stock, only 3 left!

0

42

Electrolux/AYP 530055586

Cover-Bolt

$

$

Not available

43

Electrolux/AYP 530016359

Nut-Brass
(Superseded to 574266401)

$4.99

$

In Stock, Qty 7

0

43

Electrolux/AYP 530165225

Manual

Note: Not Shown

$

$

Not available

43

Electrolux/AYP 530057757

Decal-Warning

Note: Not Shown

$3.99

$

Usually ships in 3-10 days

0

43

Electrolux/AYP 530059229

Decal-Start Inst.

Note: Not Shown

$

$

Not available
