222 - Poulan Chainsaw (2008-03) Starter Parts Diagram

Chainsaw

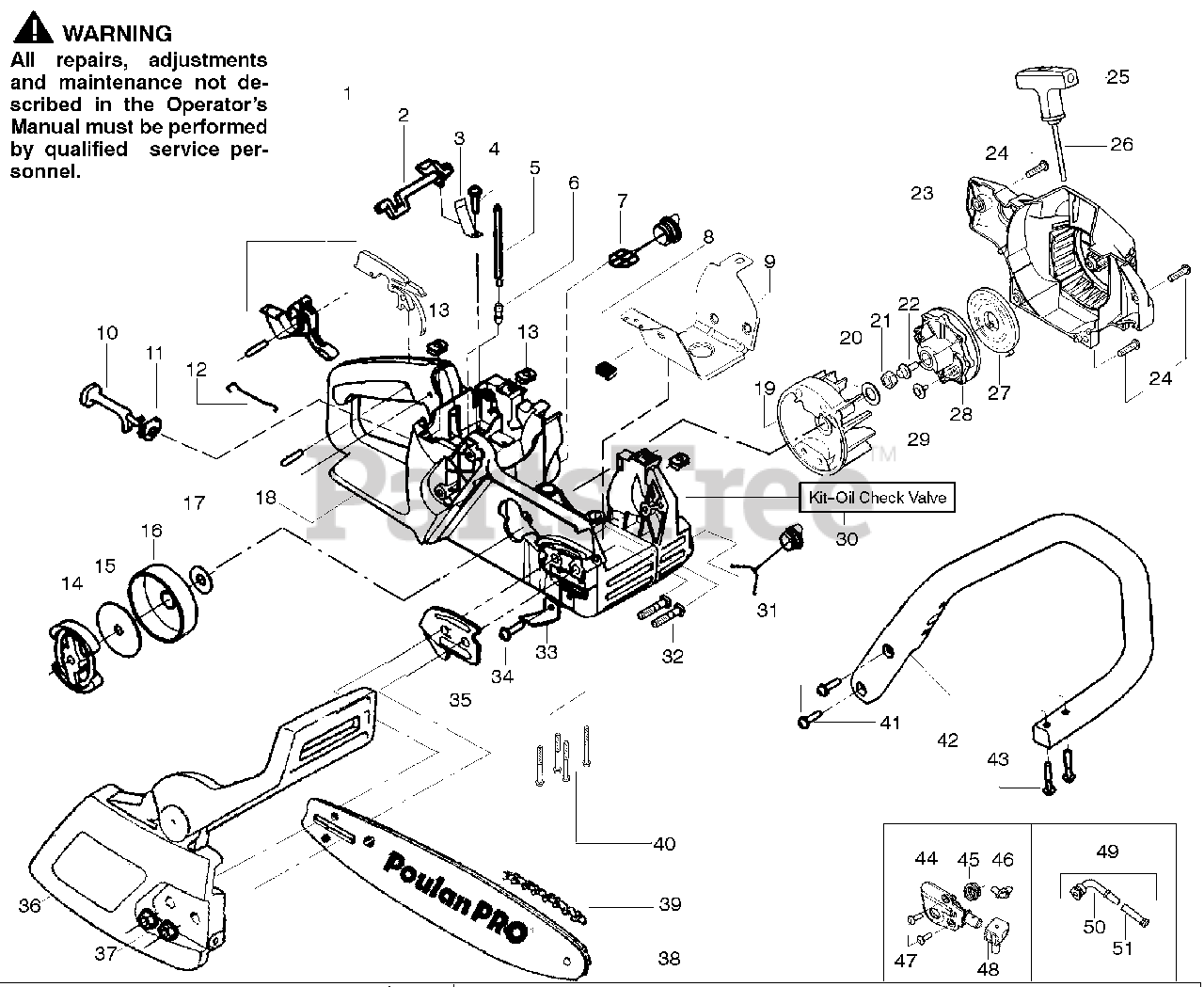

Starter Parts Diagram

  • Title

1

Electrolux/AYP 530071832

Kit-Trigger & Lockout

Note: (Includes Pin)

$

$

Not available

2

Electrolux/AYP 530038227

Lever-Switch

$

$

Not available

3

Electrolux/AYP 530016149

Spring-Switch

$

$

Not available

4

Electrolux/AYP 530015775

Screw

$6.49

$

In Stock, only 2 left!

0

5

Electrolux/AYP 530069216

Kit-Fuel Line (Large)

$6.49

$

In Stock, Qty 20+

0

6

Electrolux/AYP 530023877

Fitting-Fuel line

$4.99

$

In Stock, Qty 20+

0

7

Electrolux/AYP 530047192

Assy-Fuel Cap w/ret.
(Superseded to 580940901)

$6.49

$

In Stock, Qty 20+

0

8

Electrolux/AYP 530055322

Clip-"U"

$2.49

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 530055183

Shield-Heat

$7.49

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 530047989

Lever-Choke

$

$

Not available

11

Electrolux/AYP 530049005

Grommet-Choke lever

$

$

Not available

12

Electrolux/AYP 530037809

Wire-Throttle

$

$

Not available

13

Electrolux/AYP 530015922

Nut-Speed

$6.49

$

In Stock, Qty 5

0

14

Electrolux/AYP 530014949

Assy.-Clutch

$13.99

$

In Stock, Qty 18

0

15

Electrolux/AYP 530015611

Washer-Clutch

$6.49

$

In Stock, Qty 20+

0

16

Electrolux/AYP 530047061

Assy-Drum W/brg.

$17.99

$

In Stock, Qty 8

0

17

Electrolux/AYP 530015907

Washer-Thrust

$

$

Not available

18

Electrolux/AYP 530058908

Assy-Chassis

Note: ( Incl. # 1,5,6,7,13,30,31,32)

$60.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 530039187

Assy-Flywheel
(Superseded to 530047534)

$

$

Not available

20

Electrolux/AYP 530015127

Washer-Flywheel

$6.49

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 530016134

Nut-Flywheel

$6.49

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 530015920

Screw

$6.49

$

In Stock, Qty 8

0

23

Electrolux/AYP 530049335

Housing-Fan

$14.99

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 530015892

Screw

$6.49

$

In Stock, Qty 20+

0

25

Electrolux/AYP 530056402

Handle-Starter

$6.49

$

In Stock, only 2 left!

0

26

Electrolux/AYP 530069232

Kit-Rope

$7.49

$

In Stock, Qty 20+

0

27

Electrolux/AYP 530027531

Spring-Starter
(Superseded to 545008015)

$6.49

$

In Stock, Qty 17

0

28

Electrolux/AYP 530037817

Pulley-Starter
(Superseded to 545034301)

$

$

Not available

29

Electrolux/AYP 530016080

Screw

$6.49

$

In Stock, Qty 11

0

30

Electrolux/AYP 530071666

Kit-Oil Check Valve

$

$

Not available

31

Electrolux/AYP 530057236

Assy-Oil Cap

$

$

Not available

32

Electrolux/AYP 530016133

Bolt-Bar

$6.49

$

In Stock, only 4 left!

0

33

Electrolux/AYP 530029850

Chain Catcher

$6.49

$

In Stock, Qty 20+

0

34

Electrolux/AYP 530015814

Screw

$6.49

$

In Stock, Qty 20+

0

35

Electrolux/AYP 530038238

Plate-Bar Mounting

$

$

Not available

36

Electrolux/AYP 545139915

Assy.-Chain Brake

$37.99

$

In Stock, only 1 left!

0

37

Electrolux/AYP 530015917

Nut-Bar Mounting

$3.99

$

In Stock, Qty 20+

0

38

Electrolux/AYP 530044920

Bar-16"
(Superseded to 578138101)

$

$

Not available

39

Electrolux/AYP 952051211

Chain-16"
(Superseded to 581562201)

$22.99

$

In Stock, Qty 14

0

40

Electrolux/AYP 530016132

Screw

$6.49

$

In Stock, Qty 10

0

41

Electrolux/AYP 530015814

Screw

$6.49

$

In Stock, Qty 20+

0

42

Electrolux/AYP 530056798

Handle-Front
(Superseded to 530059173)

$

$

Not available

43

Electrolux/AYP 530015940

Screw

$6.49

$

In Stock, Qty 9

0

44

Electrolux/AYP 530071259

Kit-Oil Pump

Note: (Incl 45,46,48)

$18.99

$

In Stock, only 1 left!

0

45

Electrolux/AYP 530037820

Gear-Worm Spring

$6.49

$

In Stock, only 4 left!

0

46

Electrolux/AYP 530049477

Elbow-Oil Pickup

$4.99

$

In Stock, Qty 5

0

47

Electrolux/AYP 530016064

Screw

$4.99

$

In Stock, Qty 6

0

48

Electrolux/AYP 530019206

Block-Seal

$6.49

$

Usually ships in 3-10 days

0

49

Electrolux/AYP 530047663

Assy-Oil-Pickup

Note: (Incl. 50, 51 )

$4.99

$

In Stock, Qty 8

0

50

Electrolux/AYP 530038373

Pickup-Oiler

$4.99

$

Usually ships in 3-10 days

0

51

Electrolux/AYP 530056533

Filter-Oil

$6.49

$

Usually ships in 3-10 days

0
