22200 TE - Toro 66cm Heavy-Duty Rear Bagger Walk-Behind Mower (SN: 290000001 - 290000500) (2009) GEAR CASE ASSEMBLY NO. 109-3558 Parts Diagram

66cm Heavy-Duty Rear Bagger Walk-Behind Mower

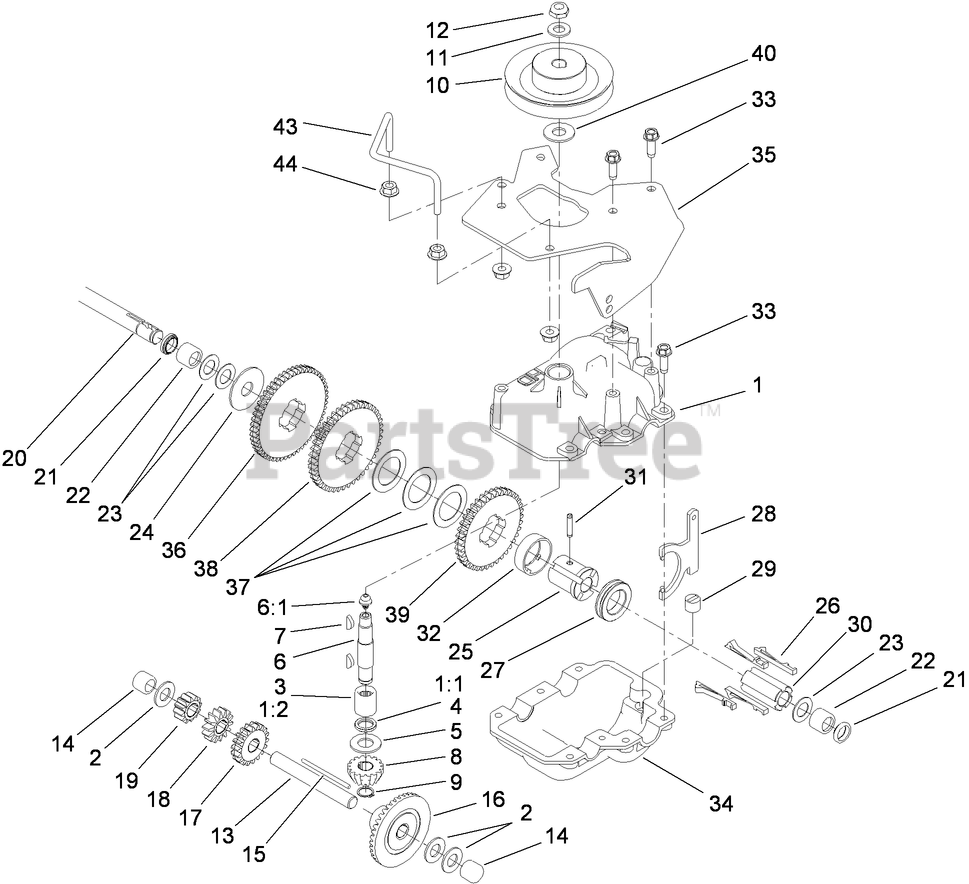

GEAR CASE ASSEMBLY NO. 109-3558 Parts Diagram

  • Title

1

Toro 13-9739

UPPER GEARCASE ASM

$80.99

$

Usually ships in 3-6 days

0

1:1

Toro 47-7260

SEAL

$8.49

$

In Stock, only 2 left!

0

1:2

Toro 47-7270

BEARING-NEEDLE

$29.99

$

In Stock, Qty 7

0

2

Toro 36-4792

WASHER-THRUST

$1.49

$

In Stock, Qty 18

0

3

Toro 103-9773

BEARING-ROLLER, CAGED

$23.99

$

Usually ships in 3-6 days

0

4

Toro 47-7260

SEAL

$8.49

$

In Stock, only 2 left!

0

5

Toro 47-2910

WASHER-THRUST

$13.99

$

In Stock, only 1 left!

0

6

Toro 13-5149

INPUT SHAFT ASM

$71.99

$

Usually ships in 3-6 days

0

6:1

Toro 302-63

FITTING-GREASE, ZERK

$2.99

$

In Stock, Qty 20+

0

7

Toro 3257-1

KEY-WOODRUFF

$2.99

$

In Stock, Qty 20+

0

8

Toro 39-6660

PINION-BEVEL

$38.99

$

In Stock, only 2 left!

0

9

Toro 32151-57

RING-RETAINING

$5.49

$

In Stock, only 3 left!

0

10

Toro 103-6429

SHEAVE

$64.99

$

Usually ships in 3-6 days

0

11

Toro 3256-45

WASHER-FLAT

$0.99

$

In Stock, Qty 9

0

12

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 20+

0

13

Toro 53-7950

SHAFT-INTERMEDIATE

$52.99

$

In Stock, only 1 left!

0

14

Toro 252-103

BEARING-NEEDLE, CLOSED

$23.99

$

In Stock, only 4 left!

0

15

Toro 39-7842

KEY

$2.99

$

In Stock, Qty 15

0

16

Toro 74-1760

GEAR-BEVEL

$38.99

$

Usually ships in 3-6 days

0

17

Toro 39-6650

GEAR-18T

$13.99

$

In Stock, only 2 left!

0

18

Toro 46-3550

GEAR-14T

$21.99

$

In Stock, only 1 left!

0

19

Toro 46-3540

GEAR-12T

$13.99

$

In Stock, Qty 5

0

20

Toro 103-6435

SHAFT-AXLE

$119.99

$

Usually ships in 3-6 days

0

21

Toro 47-6730

SEAL-OIL

$12.99

$

In Stock, Qty 20+

0

22

Toro 48-2060

BEARING-ROLLER
(Superseded to 117-3500)

$5.49

$

In Stock, Qty 20+

0

23

Toro 36-4780

WASHER-PLAIN

$7.99

$

In Stock, Qty 20+

0

24

Toro 29-9690

WASHER

$12.99

$

Usually ships in 3-6 days

0

25

Toro 109-2642

SLEEVE-4 DOG

$61.99

$

Usually ships in 3-6 days

0

26

Toro 29-9330

KEY-SHIFT

$27.99

$

In Stock, Qty 8

0

27

Toro 29-9340

COLLAR-SHIFT

$38.99

$

Usually ships in 3-6 days

0

28

Toro 60-8870

YOKE-SHIFT

$23.99

$

In Stock, only 3 left!

0

29

Toro 29-9570

BUSHING-YOKE

$11.99

$

In Stock, only 4 left!

0

30

Toro 39-6720

SLEEVE

$15.99

$

Usually ships in 3-6 days

0

31

Toro 3285-19

PIN-GROOVE

$2.99

$

In Stock, Qty 15

0

32

Toro 55-8020

RETAINER-KEY

$8.99

$

Usually ships in 3-6 days

0

33

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

34

Toro 74-1920

CASE-GEAR, LOWER
(Superseded to 119-7863)

$47.99

$

In Stock, only 4 left!

0

35

Toro 103-8221-03

BRACKET-GUIDE, BELT
(Superseded to 116-0339-03)

$34.99

$

Usually ships in 3-6 days

0

36

Toro 46-3560

GEAR

$77.99

$

In Stock, only 2 left!

0

37

Toro 36-4770

WASHER

$6.49

$

Usually ships in 3-6 days

0

38

Toro 29-9271

GEAR-42T

$86.99

$

Usually ships in 3-6 days

0

39

Toro 109-3130

GEAR-38T

$25.99

$

Usually ships in 3-6 days

0

40

Toro 109-3614

WASHER

$6.49

$

In Stock, only 1 left!

0

43

Toro 103-8224

GUIDE-BELT

$18.99

$

Usually ships in 3-6 days

0

44

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+
