22200 - Toro 30" TurfMaster Walk-Behind Mower (SN: 314000001 - 314999999) (2014) TRACTION AND HEIGHT-OF-CUT ASSEMBLY Parts Diagram

30" TurfMaster Walk-Behind Mower

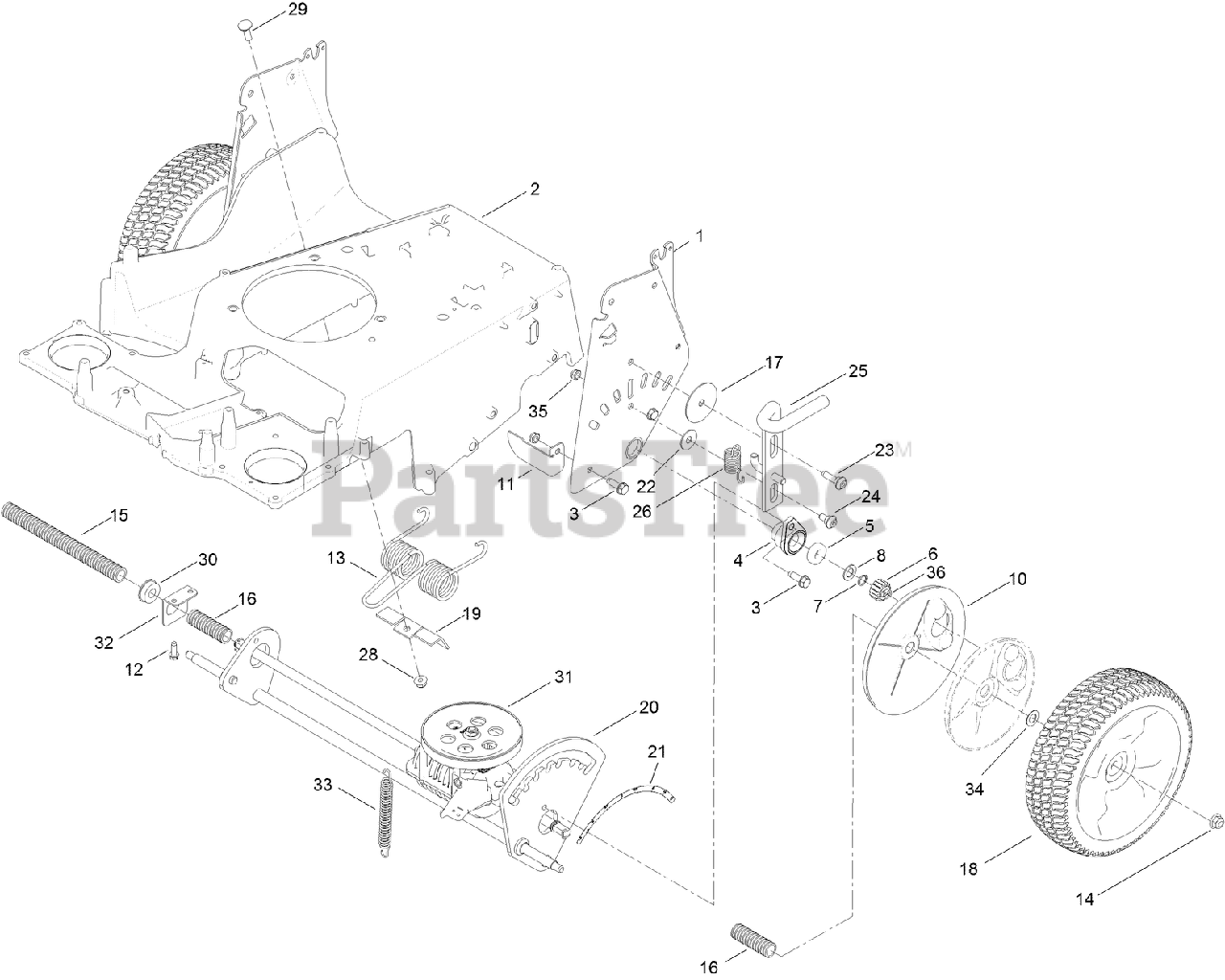

TRACTION AND HEIGHT-OF-CUT ASSEMBLY Parts Diagram

  • Title

1

Toro 121-2394-03

LH HOC PLATE ASM

$46.99

$

Usually ships in 3-6 days

0

2

Toro 121-2395-03

RH HOC PLATE ASM

$46.99

$

Usually ships in 3-6 days

0

3

Toro 701243

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

4

Toro 120-5210

RETAINER-BEARING
(Superseded to 131-5364)

$15.99

$

In Stock, Qty 20+

0

5

Toro 109-8020

BEARING-BALL
(Superseded to 52-2450)

$20.99

$

In Stock, Qty 20+

0

6

Toro 110-9417

GEAR-PINION, 15T
(Superseded to 131-5399)

$5.49

$

In Stock, Qty 20+

0

7

Toro 32151-61

RING-RETAINING

$2.99

$

In Stock, Qty 20+

0

8

Toro 110-7191

WASHER-THRUST

$2.99

$

In Stock, Qty 20+

0

10

Toro 125-2480

COVER-GEAR

$12.99

$

In Stock, only 3 left!

0

11

Toro 121-5821

BRACKET-STOP
(Superseded to 138-5338)

$6.99

$

In Stock, Qty 5

0

12

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

13

Toro 121-2368

SPRING-TORSION

$30.99

$

In Stock, only 2 left!

0

14

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

15

Toro 121-5799

CONDUIT-CONVOLUTED

$1.49

$

In Stock, Qty 17

0

16

Toro 121-5800

CONDUIT-CONVOLUTED

$1.49

$

In Stock, Qty 5

0

17

Toro 125-2540

WASHER-PLAIN

$3.49

$

Usually ships in 3-6 days

0

18

Toro 125-5032

10 INCH REAR WHEEL ASM
(Superseded to 131-4597)

$113.99

$

In Stock, Qty 6

0

19

Toro 121-2397

BRACKET

$15.99

$

In Stock, only 2 left!

0

20

Toro 120-7095

AXLE-REAR
(Superseded to 131-4516)

$127.99

$

In Stock, only 2 left!

0

21

Toro 116-7127

DECAL-HOC, REAR

$7.49

$

Usually ships in 3-6 days

0

22

Toro 52-2860

WASHER

$1.49

$

In Stock, Qty 20+

0

23

Toro 119-2267

SCREW-SHOULDER, BHTF

$5.49

$

In Stock, only 3 left!

0

24

Toro 120-9471

BOLT-SHOULDER

$5.49

$

In Stock, Qty 10

0

25

Toro 120-7090

LOCK-HEIGHT, ADJUST

$39.99

$

In Stock, only 2 left!

0

26

Toro 120-9452

SPRING-EXTENSION

$8.49

$

Usually ships in 3-6 days

0

28

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

29

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 6

0

30

Toro 104-8699

BEARING-BALL

$5.49

$

In Stock, Qty 20+

0

31

Toro 130-6671

TRANSMISSION KIT
(Superseded to 131-9667)

$232.99

$

In Stock, Qty 11

0

32

Toro 120-7008

MOUNT-BEARING
(Superseded to 138-3233)

$5.49

$

In Stock, Qty 20+

0

33

Toro 120-7027

SPRING-EXTENSION

$10.99

$

In Stock, Qty 6

0

34

Toro 36-4780

WASHER-PLAIN

$8.49

$

In Stock, Qty 12

0

35

Toro 3296-47

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

36

Toro 130-2369

PIN-SNAP

$1.49

$

In Stock, Qty 20+

0
