22203 TE - Toro 66cm Heavy-Duty Rear Bagger Walk-Behind Mower (SN: 312000001 - 312999999) (2012) REAR WHEEL ASSEMBLY Parts Diagram

66cm Heavy-Duty Rear Bagger Walk-Behind Mower

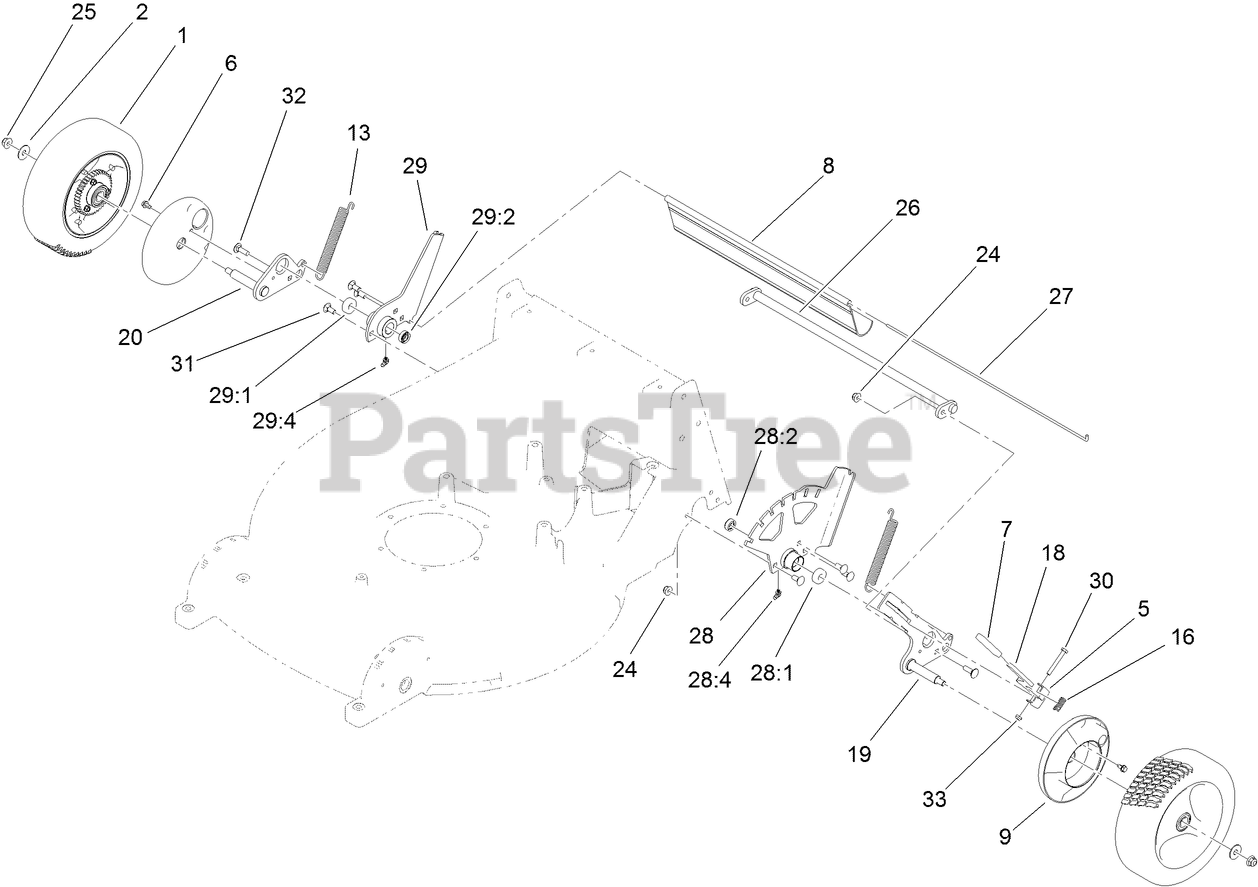

REAR WHEEL ASSEMBLY Parts Diagram

  • Title

1

Toro 112-8707

10 INCH WHEEL ASM

$202.99

$

Usually ships in 3-6 days

0

2

Toro 52-2860

WASHER

$1.49

$

In Stock, Qty 20+

0

5

Toro 103-6158

BRACKET-PIVOT, LIFT

$19.99

$

Usually ships in 3-6 days

0

6

Toro 12-3270

SCREW

$3.49

$

In Stock, only 2 left!

0

7

Toro 103-6165

COVER-HANDLE

$5.49

$

Usually ships in 3-6 days

0

8

Toro 109-5974

SHIELD-REAR

$12.99

$

Usually ships in 3-6 days

0

9

Toro 103-6441

COVER-GEAR

$17.99

$

In Stock, only 2 left!

0

13

Toro 103-7659

SPRING-ASSIST, LIFT

$20.99

$

Usually ships in 3-6 days

0

16

Toro 103-7897

SPRING-LATCH

$18.99

$

In Stock, only 1 left!

0

18

Toro 103-8226

LEVER-LIFT

$29.99

$

Usually ships in 3-6 days

0

19

Toro 103-8227

ARM-AXLE, LH

$136.99

$

Usually ships in 3-6 days

0

20

Toro 103-8229

ARM-AXLE, RH

$136.99

$

Usually ships in 3-6 days

0

24

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

25

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

26

Toro 109-2456-03

ROD-TORQUE

$80.99

$

Usually ships in 3-6 days

0

27

Toro 109-2458

ROD-SHIELD

$6.49

$

Usually ships in 3-6 days

0

28

Toro 109-2833

LH BEARING SUPPORT ASM

$216.99

$

Usually ships in 3-6 days

0

28:1

Toro 103-6110

BEARING-AXLE, REAR

$53.99

$

Usually ships in 3-6 days

0

28:2

Toro 103-7654

SEAL-AXLE

$15.99

$

Usually ships in 3-6 days

0

28:4

Toro 103-8864

FITTING-GREASE

$8.99

$

Usually ships in 3-6 days

0

29

Toro 109-2834

RH BEARING SUPPORT ASM

$216.99

$

Usually ships in 3-6 days

0

29:1

Toro 103-6110

BEARING-AXLE, REAR

$53.99

$

Usually ships in 3-6 days

0

29:2

Toro 103-7654

SEAL-AXLE

$15.99

$

Usually ships in 3-6 days

0

29:4

Toro 103-8864

FITTING-GREASE

$8.99

$

Usually ships in 3-6 days

0

30

Toro 321-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

31

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

32

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 12

0

33

Toro 3296-56

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0
