22205 TE - Toro 76cm TurfMaster Walk-Behind Mower (SN: 314000001 - 314999999) (2014) FRONT BUMPER AND WHEEL ASSEMBLY Parts Diagram

76cm TurfMaster Walk-Behind Mower

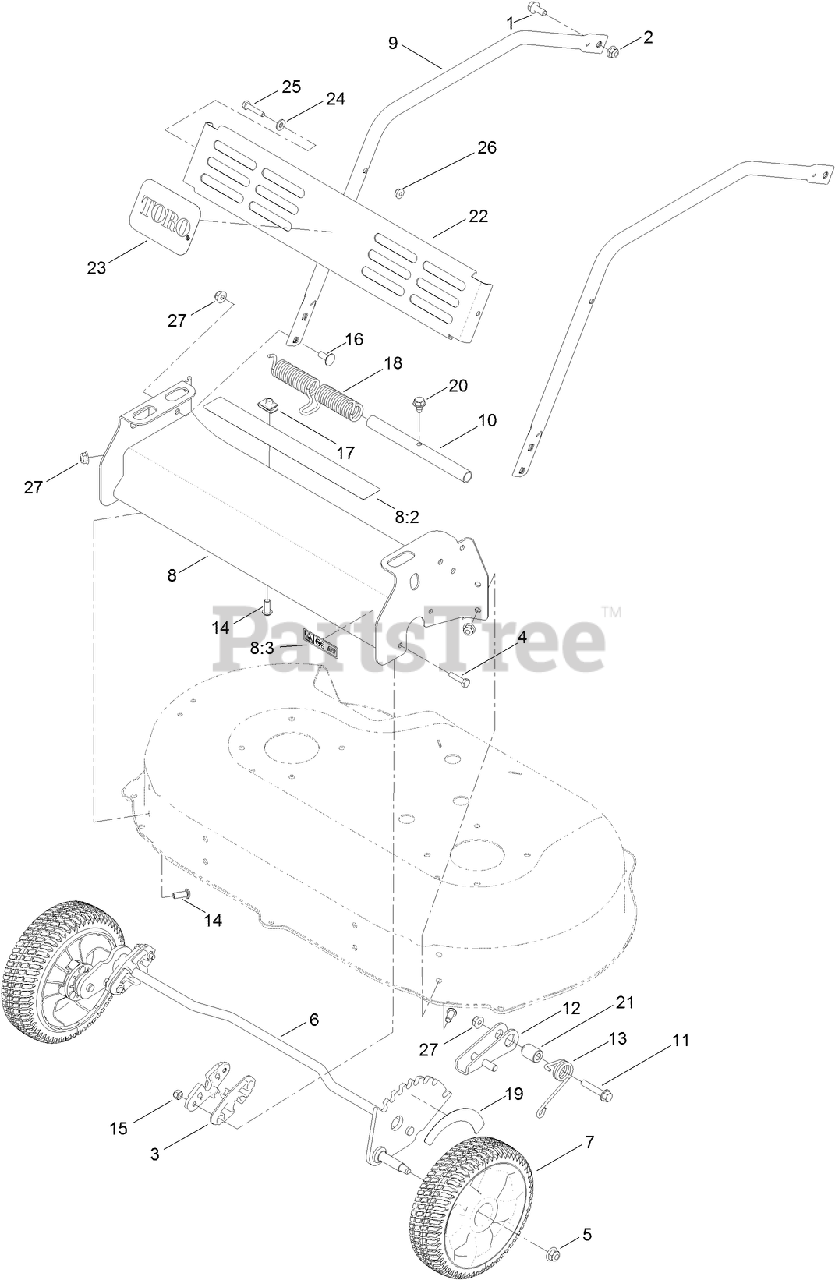

FRONT BUMPER AND WHEEL ASSEMBLY Parts Diagram

  • Title

1

Toro 116-7230

SCREW-HHF

$1.49

$

In Stock, Qty 20+

0

2

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

3

Toro 121-5781

BUSHING-FRONT

$7.49

$

In Stock, Qty 18

0

4

Toro 321-7

SCREW-HH

$5.49

$

In Stock, only 4 left!

0

5

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

6

Toro 120-9454

AXLE-FRONT
(Superseded to 131-9651)

$102.99

$

Usually ships in 3-6 days

0

7

Toro 125-5057

8 INCH WHEEL AND RING ASM
(Superseded to 131-4594)

$68.99

$

In Stock, Qty 20+

0

8

Toro 125-2488

FRONT BUMPER ASM

$225.99

$

Usually ships in 3-6 days

0

8:2

Toro 121-5847

DECAL

$8.99

$

In Stock, only 1 left!

0

8:3

Toro 116-7581

DECAL-WARNING

$2.99

$

In Stock, Qty 5

0

9

Toro 121-9168-03

BRACE

$45.99

$

In Stock, only 1 left!

0

10

Toro 121-5809

MANDRELL-SPRING
(Superseded to 131-9690)

$15.99

$

Usually ships in 3-6 days

0

11

Toro 94-5780

SCREW-HWH

$8.49

$

Usually ships in 3-6 days

0

12

Toro 125-2483

LOCK-HEIGHT, ADJUSTMENT

$20.99

$

In Stock, only 2 left!

0

13

Toro 120-9465

SPRING-TORSION

$6.49

$

Usually ships in 3-6 days

0

14

Toro 3274-55

SCREW-HSBH

$5.49

$

In Stock, Qty 8

0

15

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

16

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

17

Toro 94-2413

NUT-U

$2.99

$

In Stock, only 2 left!

0

18

Toro 121-2337

SPRING-TORSION

$21.99

$

In Stock, only 1 left!

0

19

Toro 127-6864

DECAL-HOC, FRONT

$

$

Currently unavailable

20

Toro 9266934

SCREW

$8.99

$

In Stock, Qty 7

0

21

Toro 125-2486

SPACER

$12.99

$

Usually ships in 3-6 days

0

22

Toro 121-9187-03

SHIELD

$45.99

$

Usually ships in 3-6 days

0

23

Toro 117-0871

DECAL

$28.99

$

In Stock, only 1 left!

0

24

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

25

Toro 321-8

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

26

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

27

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0
