22211G - Murray 22" Walk-Behind Mower (1997) Handle Assembly Parts Diagram

22" Walk-Behind Mower

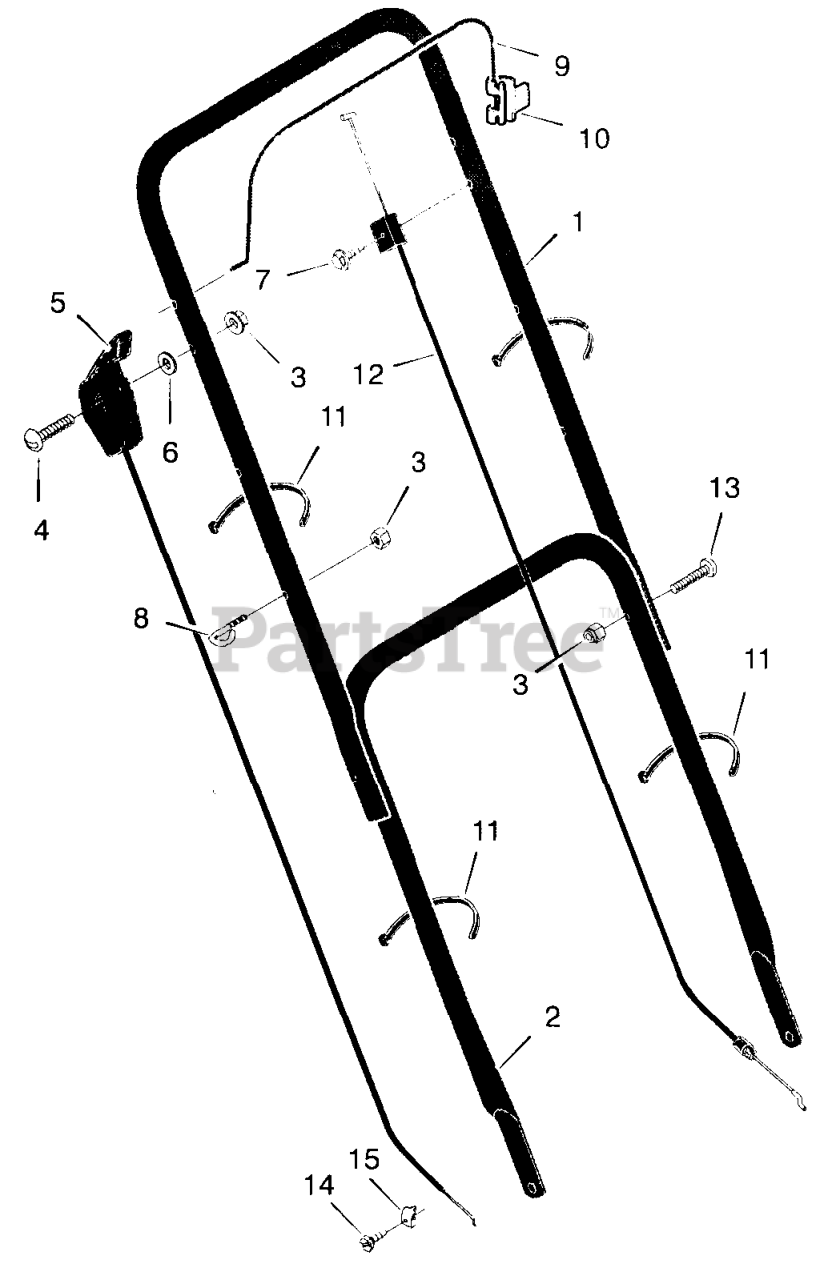

Handle Assembly Parts Diagram

  • Title

1

Murray 071581E701MA

Handle, Upper (Black)

$159.99

$

Usually ships in 2-12 days

0

2

Murray 071582E701

Handle, Lower (Black)

$

$

Currently unavailable

3

Murray 15X116MA

Locknut
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

4

Murray 03X144

Screw

$3.99

$

Usually ships in 2-12 days

0

5

Murray 043706

Throttle Control

$

$

Currently unavailable

6

Murray 17X184MA

Washer

$3.99

$

Usually ships in 2-12 days

0

7

Murray 26X220MA

Screw

$3.49

$

Usually ships in 2-12 days

0

8

Murray 043956MA

GUIDE, ROPE

$5.99

$

Usually ships in 2-12 days

0

9

Murray 043653E701MA

Lever, Engine Stop

$34.99

$

Usually ships in 2-12 days

0

10

Murray 43628 BC

Bracket, Stop Lever

$

$

Currently unavailable

11

Murray 071372MA

Fastener, Cable

$4.49

$

In Stock, only 1 left!

0

12

Murray 043822MA

Engine Stop Cable

$22.99

$

Usually ships in 2-12 days

0

13

Murray 03X136MA

Screw

$3.49

$

Usually ships in 2-12 days

0

14

Murray 26X268MA

Screw

$3.99

$

Usually ships in 2-12 days

0

15

Murray 042294

Clamp

$

$

Not available
