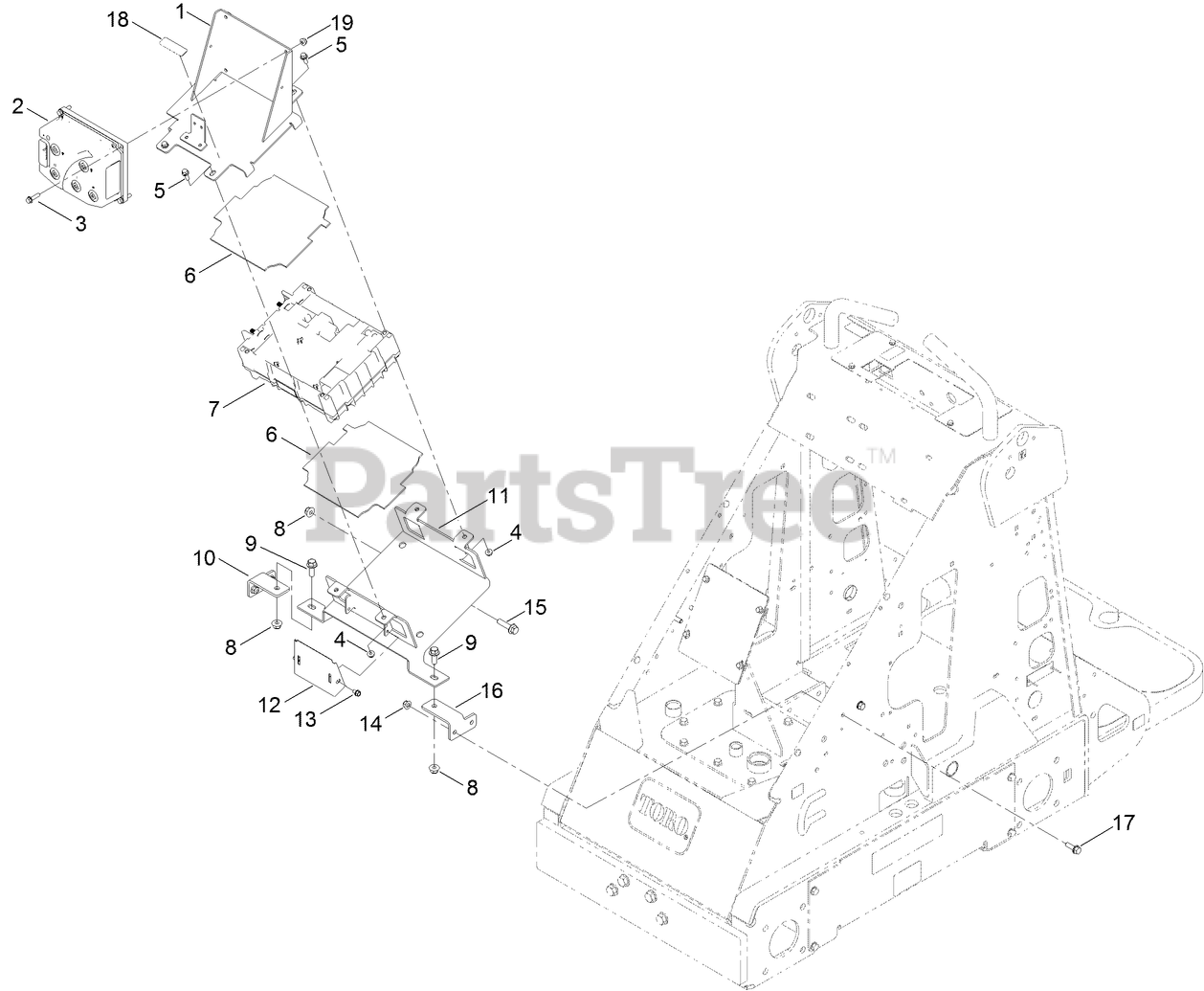

22218 (500) - Toro e-Dingo Compact Utility Loader (SN: 400000000 - 999999999) Controller Mount Assembly Parts Diagram

e-Dingo Compact Utility Loader

Controller Mount Assembly Parts Diagram

  • Title

1

Toro 139-7667-03

MOUNT-CONTROLLER

$163.99

$

Usually ships in 3-6 days

0

2

Toro 138-4246

INVERTER/CONTROLLER-48V,175Arms

$

$

Currently unavailable

3

Toro 120-4654

SCREW-HHF

$6.49

$

Usually ships in 3-6 days

0

4

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

5

Toro 3234-4

SCREW-HHF

$0.99

$

In Stock, Qty 13

0

6

Toro 139-7673

FOAM-BATTERY, BMS

$9.49

$

Usually ships in 3-6 days

0

7

Toro 137-9651

CONTROLLER

$3696.99

$

Usually ships in 3-6 days

0

8

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

9

Toro 3234-42

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

10

Toro 139-0524-03

BRACKET-MOUNT, FRAME (RH)

$

$

Currently unavailable

11

Toro 139-0527-03

MOUNT-BMS

$233.99

$

Usually ships in 3-6 days

0

12

Toro 139-0523-03

ADAPTER, MEGA FUSE

$

$

Currently unavailable

13

Toro 99-8445

SCREW-HWH
(Superseded to 137-4795)

$1.49

$

In Stock, Qty 20+

0

14

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

15

Toro 114-4681

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

16

Toro 139-0525-03

BRACKET-MOUNT, FRAME (LH)

$

$

Currently unavailable

17

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

18

Toro 139-7718

DECAL-QUICK DISCONNECT

$7.99

$

Usually ships in 3-6 days

0

19

Toro 119-4040

NUT-FLANGE, NI

$0.99

$

In Stock, Qty 9

0
