22218 (500) - Toro e-Dingo Compact Utility Loader (SN: 400000000 - 999999999) Electrical Harness Assembly Parts Diagram

e-Dingo Compact Utility Loader

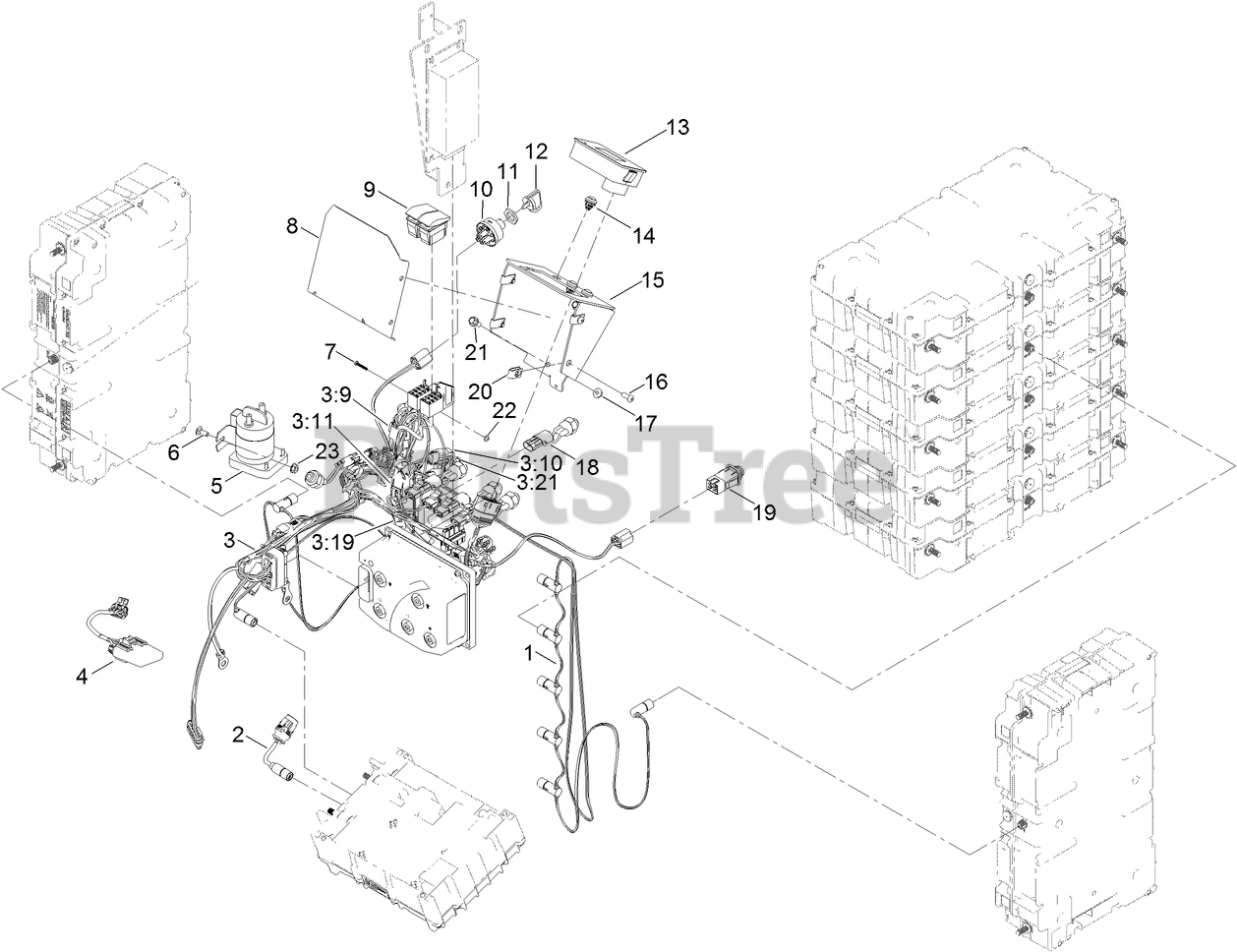

Electrical Harness Assembly Parts Diagram

  • Title

1

Toro 139-0512

HARNESS-WIRE, SAMSUNG INTERFACE M/S

$699.99

$

Usually ships in 3-6 days

0

2

Toro 122-1335

HARNESS-WIRE, INTERFACE (SYSTEM)

$343.99

$

Usually ships in 3-6 days

0

3

Toro 139-0493

HARNESS-WIRE, MAIN

$1623.99

$

Usually ships in 3-6 days

0

3:9

Toro 32180-282

RESISTOR-120 OHM

$28.99

$

Usually ships in 3-6 days

0

3:10

Toro 32180-089

CAP-PLUG, 3 WAY

$3.99

$

Usually ships in 3-6 days

0

3:11

Toro 32180-019

COVER-FUSE, SINGLE

$4.49

$

Usually ships in 3-6 days

0

3:12

Toro 117-4725

FUSE-BLADE, 15A

Note: Not illustrated

$30.99

$

Usually ships in 3-6 days

0

3:19

Toro 116-0053

CAP-PLUG

$42.99

$

Usually ships in 3-6 days

0

3:21

Toro 32180-139

MOUNT-TIE WRAP, MAGNETIC

$30.99

$

Usually ships in 3-6 days

0

4

Toro 119-4330

ISOLATED CAN MODULE ASM

$708.99

$

Usually ships in 3-6 days

0

5

Toro 104-7136

CONTACTOR-TROMBETTA

$394.99

$

Usually ships in 3-6 days

0

6

Toro 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

7

Toro 363-6528

SCREW

$0.99

$

Usually ships in 3-6 days

0

8

Toro 139-0546-03

COVER-DISPLAY

$48.99

$

Usually ships in 0 days

0

9

Toro 127-5999

SWITCH-ROCKER, OFF-NONE-ON

$35.99

$

Usually ships in 3-6 days

0

10

Toro 139-7716

SWITCH-KEY, SPST

$44.99

$

Usually ships in 3-6 days

0

11

Toro 101884

NUT

$7.99

$

In Stock, only 1 left!

0

12

Toro 63-8360

KEY-IGNITION

$5.99

$

In Stock, Qty 20+

0

13

Toro 122-1201

TDM 2002

$222.99

$

Usually ships in 3-6 days

0

14

Toro 136-9678

SWITCH-PUSHBUTTON

$61.99

$

Usually ships in 3-6 days

0

15

Toro 139-0545-03

MOUNT-DISPLAY

$75.99

$

Usually ships in 0 days

0

16

Toro 3274-31

SCREW-HSBH

$1.49

$

In Stock, only 3 left!

0

17

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

18

Toro 72-4320

SWITCH-BALL

$115.99

$

Usually ships in 3-6 days

0

19

Toro 100-1268

SWITCH-PLUNGER

$63.99

$

Usually ships in 3-6 days

0

20

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

21

Toro 126-1592

SCREW-HEAD, FLANGE

$1.49

$

In Stock, only 1 left!

0

22

Toro 3296-9

NUT-HEX

$0.99

$

In Stock, only 1 left!

0

23

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0
