22219 (500) - Toro e-Dingo Compact Utility Loader (SN: 400000000 - 415199999) Main Wire Harness Assembly Parts Diagram

e-Dingo Compact Utility Loader

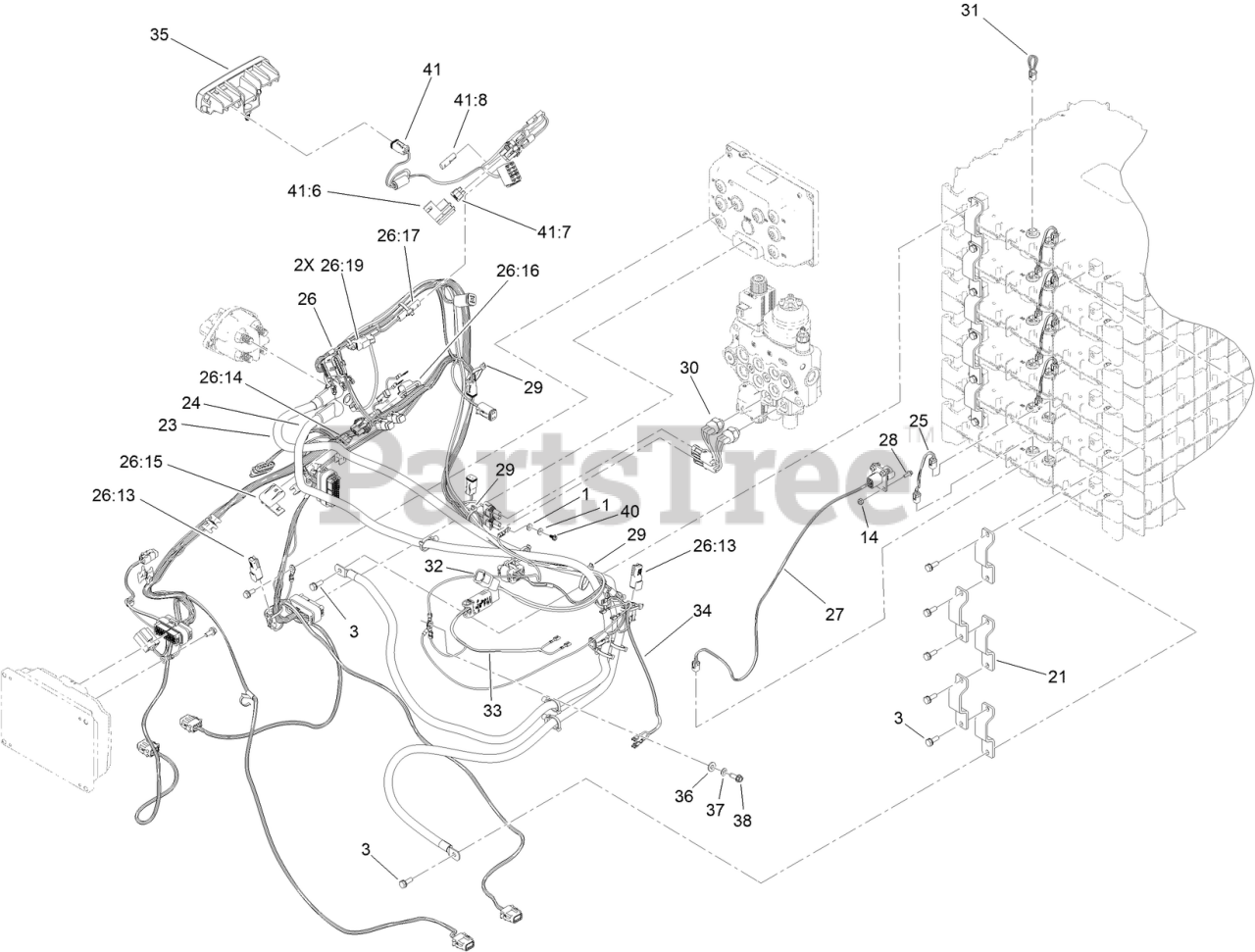

Main Wire Harness Assembly Parts Diagram

  • Title

1

Toro 3256-21

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

3

Toro 145-5783

SCREW-SEMS

$1.49

$

Usually ships in 3-6 days

0

14

Toro 3296-1

NUT-LOCK

$1.99

$

Usually ships in 3-6 days

0

21

Toro 147-6031

BAR-BUS, 400A

$35.99

$

Usually ships in 0 days

0

23

Toro 122-2645

CABLE-BATTERY, RD ASM

$336.99

$

Usually ships in 0 days

0

24

Toro 122-2752

CABLE-BATTERY, BK ASM

$375.99

$

Usually ships in 0 days

0

25

Toro 140-9565

HARNESS-WIRE, DATA INTERFACE

$60.99

$

Usually ships in 0 days

0

26

Toro 122-2509

HARNESS-WIRE, MAIN

$1421.99

$

Usually ships in 0 days

0

26:13

Toro 32180-282

RESISTOR-120 OHM

$28.99

$

Usually ships in 3-6 days

0

26:14

Toro 117-4724

FUSE-BLADE, 10A

$

$

Currently unavailable

26:15

Toro 32180-019

COVER-FUSE, SINGLE

$4.49

$

Usually ships in 3-6 days

0

26:16

Toro 32180-089

CAP-PLUG, 3 WAY

$3.99

$

Usually ships in 3-6 days

0

26:17

Toro 116-0053

CAP-PLUG

$42.99

$

Usually ships in 3-6 days

0

26:19

Toro 32180-091

CAP-DUST, 2 WAY

$14.99

$

Usually ships in 3-6 days

0

27

Toro 122-2402

HARNESS-WIRE, PACK COMM

$100.99

$

Usually ships in 0 days

0

28

Toro 112-3169

SCREW-HHF, SERRATED

$0.99

$

Usually ships in 3-6 days

0

29

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 7

0

30

Toro 72-4320

SWITCH-BALL

$115.99

$

Usually ships in 3-6 days

0

31

Toro 122-2323

HARNESS-WIRE, CAN TERMINATOR

$35.99

$

Usually ships in 0 days

0

32

Toro 122-2728

HARNESS-WIRE, JUMPER

$64.99

$

Usually ships in 0 days

0

33

Toro 122-2744

HARNESS-WIRE, AC CHARGER

$330.99

$

Usually ships in 0 days

0

34

Toro 122-2824

HARNESS-WIRE, AC CHARGER

$48.99

$

Usually ships in 0 days

0

35

Toro 145-4774

LIGHT-WORK, LED BAR

$125.99

$

Usually ships in 0 days

0

36

Toro 120-9679

WASHER-FLAT

$2.49

$

Usually ships in 3-6 days

0

37

Toro 1-303435

WASHER-SPRING

$1.99

$

In Stock, Qty 20+

0

38

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

40

Toro 147-3228

SCREW-GROUND

$

$

Currently unavailable

41

Toro 122-2367

HARNESS-WIRE, LIGHT KIT

$178.99

$

Usually ships in 0 days

0

41:6

Toro 32180-019

COVER-FUSE, SINGLE

$4.49

$

Usually ships in 3-6 days

0

41:7

Toro 117-4720

FUSE-BLADE, 3A

$

$

Currently unavailable

41:8

Toro 116-0053

CAP-PLUG

$42.99

$

Usually ships in 3-6 days

0
