22219 (500) - Toro e-Dingo Compact Utility Loader (SN: 416600000 - 999999999) Hydraulic Loader Valve Assembly Parts Diagram

e-Dingo Compact Utility Loader

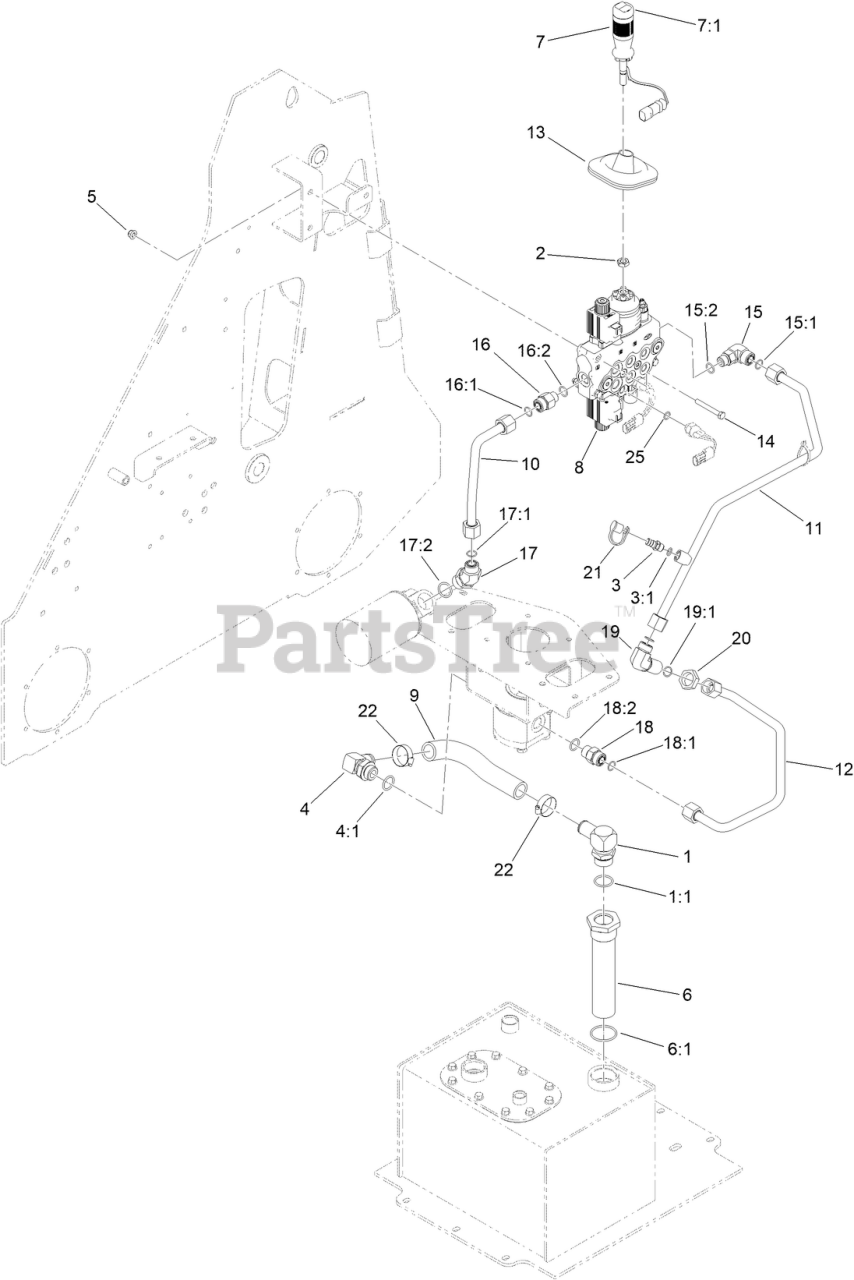

Hydraulic Loader Valve Assembly Parts Diagram

  • Title

1

Toro 23-8910

STEM-BARB-90

$233.99

$

Usually ships in 3-6 days

0

1:1

Toro 237-146

O-RING

$4.99

$

In Stock, Qty 8

0

2

Toro 51-2070

NUT

$0.99

$

Usually ships in 3-6 days

0

3

Toro 59-7410

FITTING-DIAGNOSTIC

$48.99

$

Usually ships in 3-6 days

0

3:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

4

Toro 100-4202

FITTING-90

$123.99

$

Usually ships in 3-6 days

0

4:1

Toro 237-81

O-RING

$3.49

$

In Stock, only 2 left!

0

5

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

6

Toro 115-2230

STRAINER-IN TANK

$

$

Currently unavailable

6:1

Toro 340-136

O-RING

$7.99

$

Usually ships in 3-6 days

0

7

Toro 140-5742

HANDLE-AUXILIARY ASM

$804.99

$

Usually ships in 0 days

0

7:1

Toro 147-6873

BOOT-SWITCH, JOYSTICK

$

$

Currently unavailable

8

Toro 144-2909

VALVE-HYD-LOADER

$2066.99

$

Usually ships in 0 days

0

9

Toro 144-3009

HOSE

$20.99

$

Usually ships in 0 days

0

10

Toro 145-2373

HYDRAULIC TUBE ASM

$51.99

$

Usually ships in 0 days

0

11

Toro 145-2401

HYDRAULIC TUBE ASM

$94.99

$

Usually ships in 0 days

0

12

Toro 145-2402

HYDRAULIC TUBE ASM

$62.99

$

Usually ships in 0 days

0

13

Toro 145-4746

BOOT-JOYSTICK

$20.99

$

Usually ships in 0 days

0

14

Toro 322-12

SCREW-HH
(Superseded to 32136-4)

$2.49

$

In Stock, Qty 9

0

15

Toro 340-153

FITTING-ELBOW, 90 DEG

$112.99

$

Usually ships in 3-6 days

0

15:1

Toro 237-79

O-RING

$6.49

$

In Stock, only 4 left!

0

15:2

Toro 237-151

O-RING

$2.49

$

Usually ships in 3-6 days

0

16

Toro 340-155

FITTING-STRAIGHT

$32.99

$

Usually ships in 3-6 days

0

16:1

Toro 237-79

O-RING

$6.49

$

In Stock, only 4 left!

0

16:2

Toro 237-151

O-RING

$2.49

$

Usually ships in 3-6 days

0

17

Toro 340-156

FITTING-ELBOW 45

$

$

Currently unavailable

17:1

Toro 237-65

O-RING

$2.99

$

In Stock, Qty 20+

0

17:2

Toro 237-81

O-RING

$3.49

$

In Stock, only 2 left!

0

18

Toro 340-7

FITTING-STRAIGHT

$15.99

$

In Stock, Qty 13

0

18:1

Toro 237-65

O-RING

$2.99

$

In Stock, Qty 20+

0

18:2

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 16

0

19

Toro 340-72

FITTING-BULKHEAD, 90 DEG

$59.99

$

Usually ships in 3-6 days

0

19:1

Toro 237-65

O-RING

$2.99

$

In Stock, Qty 20+

0

20

Toro 340-74

NUT-LOCK, BULKHEAD

$5.99

$

Usually ships in 3-6 days

0

21

Toro 353-947

CAP-DUST, RUBBER

$

$

Not available

22

Toro 2412-34

CLAMP-HOSE

$2.49

$

In Stock, only 1 left!

0

25

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0
