22219 (500) - Toro e-Dingo Compact Utility Loader (SN: 416600000 - 999999999) Main Frame Assembly Parts Diagram

e-Dingo Compact Utility Loader

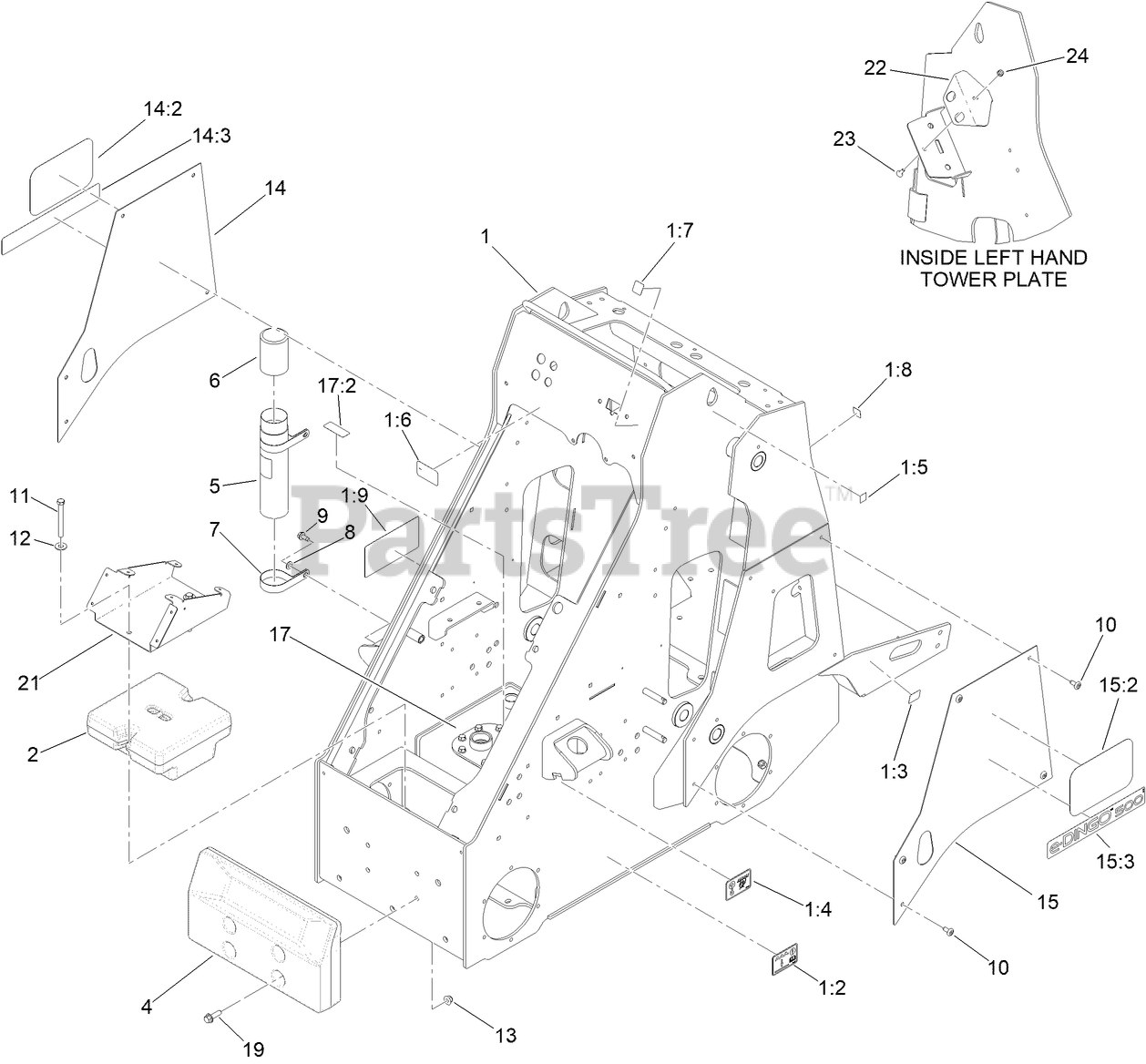

Main Frame Assembly Parts Diagram

  • Title

1

Toro 145-4721

MAIN FRAME ASM

$

$

Currently unavailable

1:2

Toro 139-7709

DECAL-WATER LEVEL

$11.99

$

Usually ships in 3-6 days

0

1:3

Toro 132-9051

DECAL-TIEDOWN

$1.99

$

Usually ships in 0 days

0

1:4

Toro 125-6139

DECAL-LIFT/TIE DOWN

$

$

Currently unavailable

1:5

Toro 93-9084

DECAL-POINT, LIFT

$9.99

$

Usually ships in 3-6 days

0

1:6

Toro 145-4779

DECAL - FUSES

$6.49

$

Usually ships in 0 days

0

1:7

Toro 147-0290

DECAL-LIGHT, WARNING

$6.49

$

Usually ships in 0 days

0

1:8

Toro 125-1414

DECAL-GROUND, EARTH

$

$

Currently unavailable

1:9

Toro 145-4789

DECAL - QUICK REFERENCE AID

$

$

Currently unavailable

2

Toro 145-4706-0P

COUNTERWEIGHT-FRONT

$

$

Currently unavailable

4

Toro 145-2399-03

COUNTERWEIGHT-FRONT

$

$

Currently unavailable

5

Toro 104-7050

TUBE-MANUAL

$9.99

$

Usually ships in 3-6 days

0

6

Toro 104-7048

CAP-HOUSING

$6.49

$

In Stock, only 1 left!

0

7

Toro 2412-133

CLAMP-R

$9.99

$

Usually ships in 3-6 days

0

8

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

9

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 16

0

10

Toro 138-9753

SCREW

$1.49

$

In Stock, Qty 6

0

11

Toro 323-15

SCREW-HH

$1.99

$

In Stock, Qty 10

0

12

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

13

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

14

Toro 145-4723

PANEL-ACCESS, RH

$

$

Currently unavailable

14:2

Toro 145-1978

DECAL-LOGO, SILVER

$8.99

$

Usually ships in 3-6 days

0

14:3

Toro 139-7658

DECAL- E-DINGO

$8.99

$

Usually ships in 3-6 days

0

15

Toro 145-4728

PANEL-ACCESS, LH

$

$

Currently unavailable

15:2

Toro 145-1978

DECAL-LOGO, SILVER

$8.99

$

Usually ships in 3-6 days

0

15:3

Toro 139-7658

DECAL- E-DINGO

$8.99

$

Usually ships in 3-6 days

0

17

Toro 145-4790

PLATE - COVER

$

$

Currently unavailable

17:2

Toro 93-6686

DECAL-OIL, HYD

$9.99

$

Usually ships in 3-6 days

0

19

Toro 3234-24

SCREW-HHF

$3.99

$

In Stock, only 4 left!

0

21

Toro 145-4751-03

BRACKET-MOUNT, FAN

$

$

Currently unavailable

22

Toro 145-4772-01

BRACKET-FITTING, ADJUSTABLE

$

$

Currently unavailable

23

Toro 1-807512

BOLT-CARR

$1.49

$

In Stock, Qty 10

0

24

Toro 119-4040

NUT-FLANGE, NI

$0.99

$

In Stock, Qty 8

0
